220L L ring barrel - HMWHDPE
ZK-120B extrusion blow molding machine 220L max.

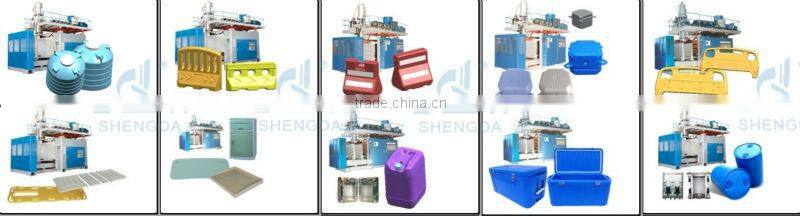

ZK-120Model automatic large extrusion blow molding machine---This model adopts accumulator die. Parison programmer is available to control thickness.This model is automatic process with low noise, saving energy, high efficiency,safe operation, easy maintenance and other benefits. This model is widely used to produce chemical barrel, auto parts ( water box, oil box, air-condition pipe,aoto tail), toys(wheel,hollow autobike, basketball stands,baby castle), tool box,vacuum cleaner pipe, chairs for bus and gymnasium,etc.This model can produce max 230L hollow plastic product.
HDPE,PP,,ABS,EVA etc .
Features:
1) Controlled by Taiwan PLC
2) Temperature controlled model
3) Interactive monitor with machine-human interface
4) Imported hydraulic elements
5) Hydraulic Proportional control
6) Imported electric elements
7) Hard gear surface reducer
8) Accumulator head with special steel
9) Vicker hydraulic valve, seal and proportional control
10) Taiwan PLC+ Taiwan human machine interface +software in touch type +famous brand electric elements.
following is the technical specifications:
technical parameters |
|
ZK-120 |
specification |
unit |
|
max container capacity |
L |
220 |
machine dimension |
M |
7.5*3.2*5.1 |
total weight |
ton |
22 |
clamping system |
|
|
clamping force |
KN |
1200 |
plate opening stroke |
mm |
600-1600 |
max mould size(W*H) |
mm |
1200*1600 |
mould thickness |
mm |
610-850 |
power |
|
|
max drive |
KW |
22 |
total power |
KW |
175 |
fan power for screw |
KW |
0.72 |
air pressure |
Mpa |
0.7 |
air consumption |
m3/min |
0.9 |
average energy consumption |
KW |
55 |
extruder unit |
|
|
screw diameter |
mm |
120 |
screw L/D ratio |
L/D |
28:1 |
plasticizing capacity |
kg/hr |
280 |
number of heating zone |
zone |
6 |
extruder heating power |
KW |
35 |
extruder driving power |
KW |
75 |
accumulator head |
|
|
number of heating zone |
zone |
6 |
power of die heating |
KW |
50 |
max die-pin diameter |
mm |
600 |
accumulator volume |
L |
30 |
bigger machine pls check ZK-135B blow molding machine; Blow molding machine; PE blow molding machine;PP blow molding machine;ABS blow molding machine;HDPE blow molding machine; EVA blow molding mahicne; Automatic blow molding machine;Single screw blow molding machine; Double screw blow molding machine;Educational toy house;, medical bed; bed hoard,head board,footboard Plastic water tank; 1000L tank; 500L tank;2000L tank; Septic tank;plastic mannequin;plastic torsa;mannequin leg
