Help CenterMachine D'extrusion Soufflage
Related Products
enplastique de soufflage de corps creux (extrusion blow molding machine)

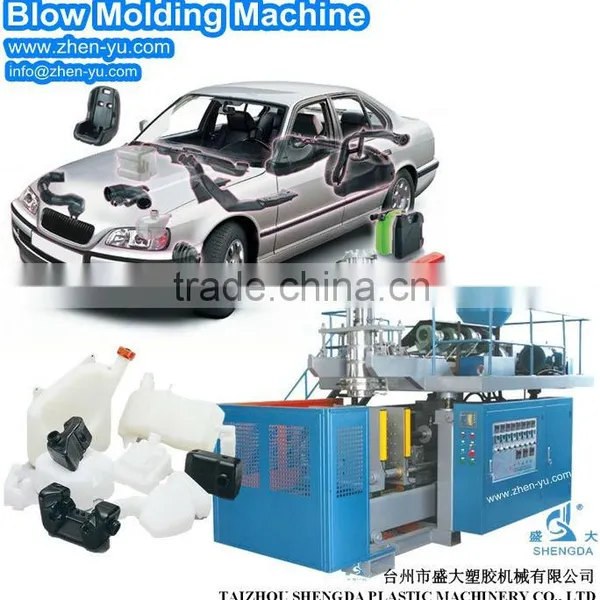

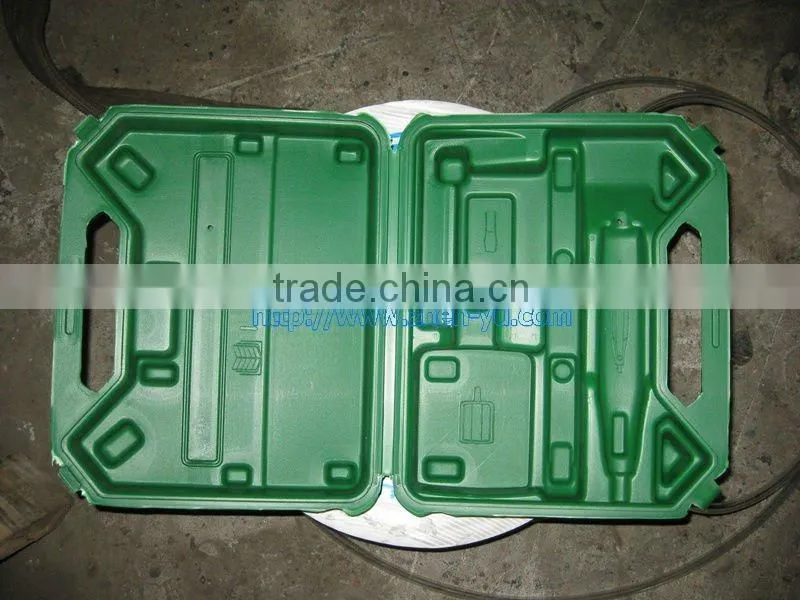

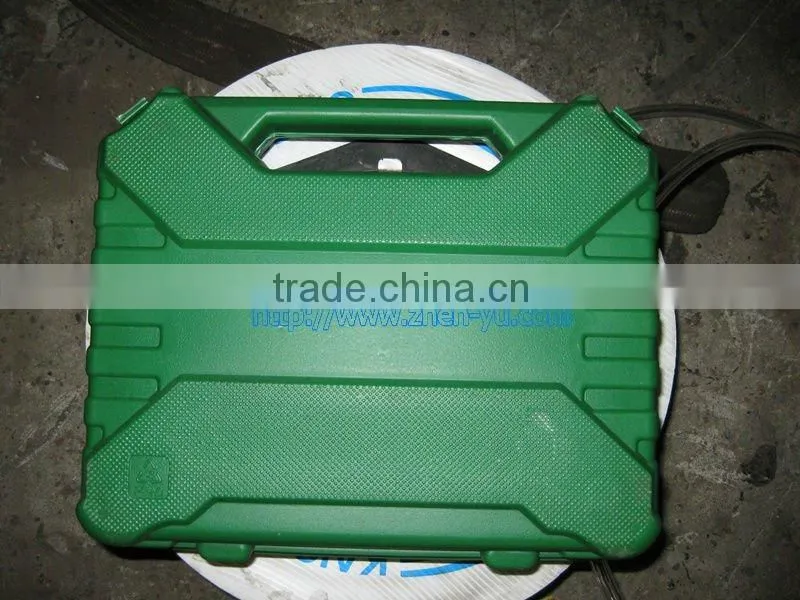

1.This series is mainly applicable to the production of various packing barrels with PE and PP material and capacity between 1~20L,toolbox,motorcar parts such as gasoline bank, wind pipe and other large and medium-sized plastic hollow products.
2.This series adopts new patent of two pull-rod type closing-mold device;double-folding accumulator head;extrusion device,equipped with complete blowing device and product taking-outdevice,and entirely achieves full automatic production.
3.The electrical control system adopts Complete computer control to automatically conduct technical parameter optimization and trouble diagnosis with high control precision and good reliability.
4.This series,completely designed and manufactured according to German standards of same model is the model with ration of performance to price at present.
following is the technical specifications:
technical parameters |
|
ZK-70 |
specification |
unit |
|
max container capacity |
L |
20 |
machine dimension |
M |
4*2.6*2.7 |
total weight |
ton |
4.5 |
clamping system |
|
|
clamping force |
KN |
160 |
plate opening stroke |
mm |
250-800 |
max mould size(W*H) |
mm |
480*500 |
mould thickness |
mm |
250-400 |
power |
|
|
max drive |
KW |
7.5 |
total power |
KW |
40 |
fan power for screw |
KW |
0.18 |
air pressure |
Mpa |
0.7 |
air consumption |
m3/min |
0.9 |
average energy consumption |
KW |
20 |
extruding system |
|
|
screw diameter |
mm |
70 |
screw L/D ratio |
L/D |
25:1 |
plasticising capacity |
kg/hr |
60 |
number of heating zone |
zone |
4 |
extruder heating power |
KW |
10 |
extruder driving power |
KW |
11 |
die head |
|
|
number of heating zone |
zone |
3 |
power of die heating |
KW |
4 |
max die-pin diameter |
mm |
250 |
accumulator capacity |
L |
2 |
