Washing Machine Washing Timer
- 100000 Piece / Pieces per Month
- NINGBO PORT
- T/T D/P D/A Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | HUIXING, Huixing | Model Number: | HXT15SF-G |
Product Description

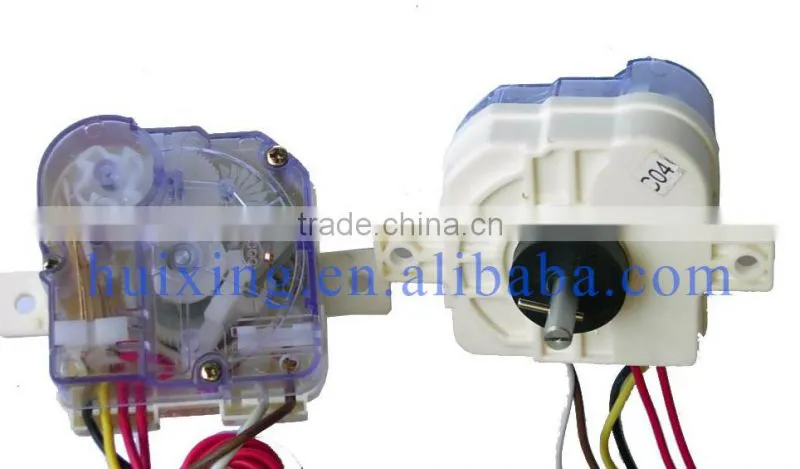

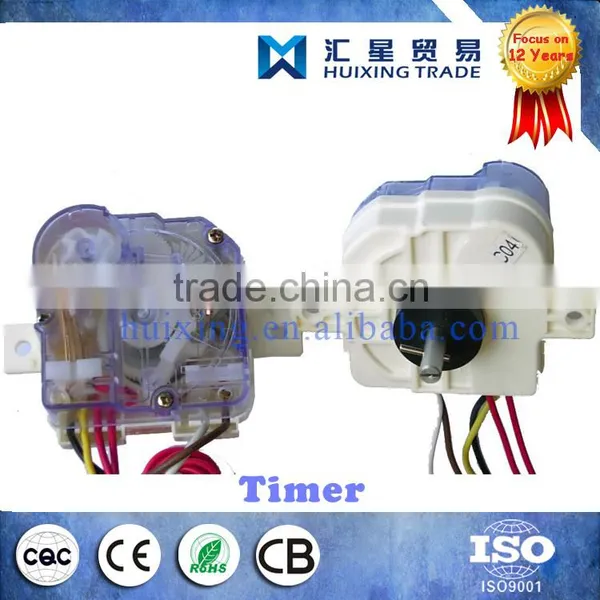

Item: Washing Machine Washing Timer
Model: HXT15SF-G
Model no. | WM15TR07 | WM15TR08 | WM15TR09 | WM15TR10 | WM15TR12 |
Washing Machine type | For GENERAL ( N ) W/M | For GENERAL ( M ) W/M | For HITACHI (3 clip) W/M | For HITACHI (5 clip) W/M | For TOSHIBA W/M |
Contact Rating | 220V 3A | 220V 3A | 220V 3A | 220V 3A | 220V 3A |
Temperature Range | – 10 degree C to ± 55 degree C | – 10 degree C to ± 55 degree C | – 10 degree C to ± 55 degree C | – 10 degree C to ± 55 degree C | – 10 degree C to ± 55 degree C |
Operating Direction of Main Shaft | Clockwise ( CW ) | Clockwise ( CW ) | Clockwise ( CW ) | Clockwise ( CW ) | Clockwise ( CW ) |
Operating Torque of Main Shaft | ≤ 0.88 N.m | ≤ 0.88 N.m | ≤ 0.88 N.m | ≤ 0.88 N.m | ≤ 0.88 N.m |
Insulation Resistance | Above 100 Ω | Above 100 Ω | Above 100 Ω | Above 100 Ω | Above 100 Ω |
Insulation Endure Force | AC 1500V ⁄min | AC 1500V ⁄ min | AC 1500V ⁄min | AC 1500V ⁄ min | AC 1500V ⁄min |
Max. Setting Time | 15 ± 2 Minutes | 15 ± 2 Minutes | 15 ± 2 Minutes | 15 ± 2 Minutes | 15 ± 2 Minutes |
Longevity | Above 10000 times | Above 10000 times | Above 10000 times | Above 10000 times | Above 10000 times |
Wire number | 6 | 6 | 3 | ||
Wire color | Purple,Yellow, BR Orange, BR, Grey | BR , GR , Yellow Yellow, BR, Grey | Blue, Purple, Black | ||
Wire length | 760 mm for Purple, Yellow, BL 260 mm for Orange, BR, Grey | 750 mm for BR, Green, Yellow 250 mm for Yellow, BR, Grey | Blue: 970 mm, Purple: 940 mm, Black: 410mm |
S1, S2 On-Off Time: As Customer Requirement
