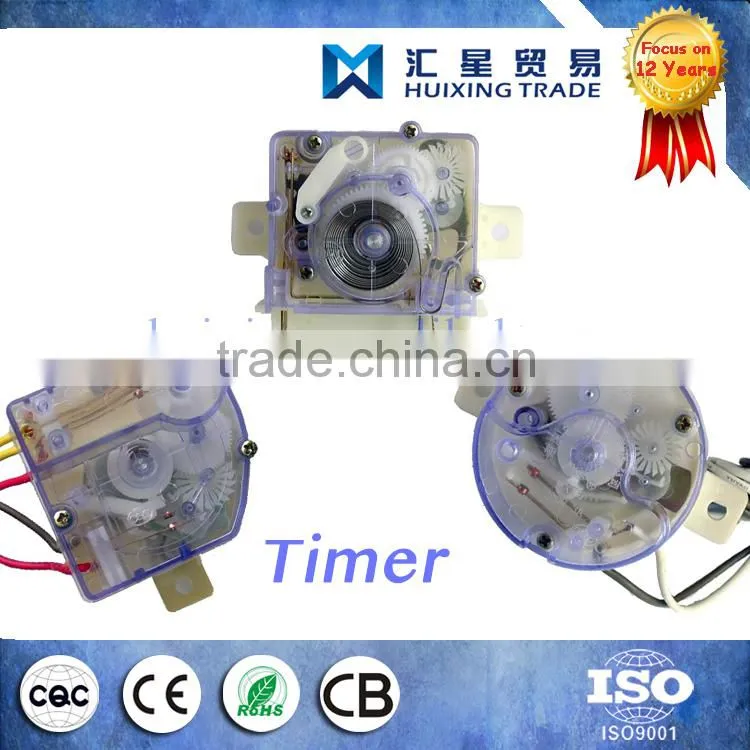

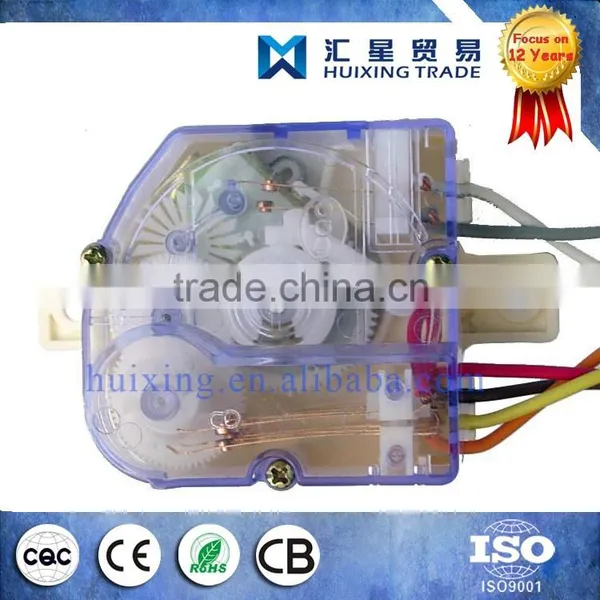

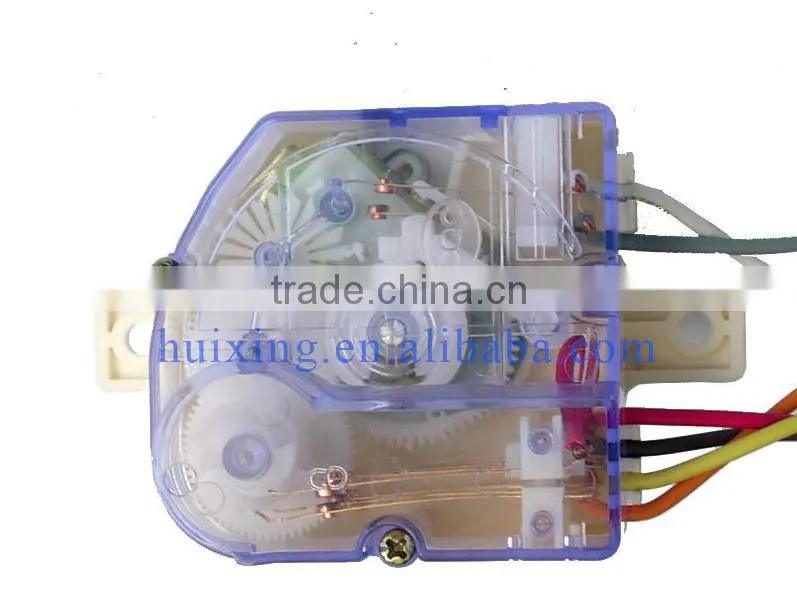

Washing Machine Washing Timer

Name: Washing Machine Washing Timer
Brand: HUIXING
SKU: 110856649
Availability: InStock

US$ 0.8 - 2.5 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

HUIXING

Model Number:

HXT15-14-6

Ningbo ETDZ Huixing Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO PORT

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name HUIXING

Model Number HXT15-14-6

Product Description

Item:

Washing Machine Washing Timer

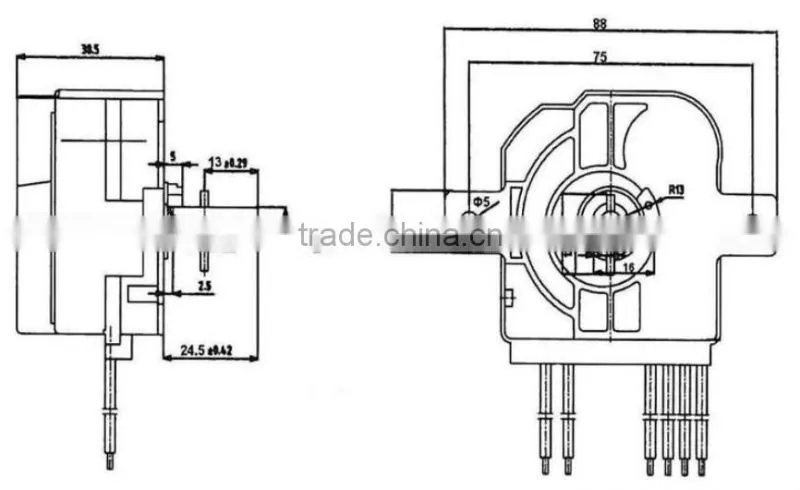

Specifications:

Model no.	WM15TR07	WM15TR08	WM15TR09	WM15TR10	WM15TR12
Washing Machine type	For GENERAL ( N ) W/M	For GENERAL ( M ) W/M	For HITACHI (3 clip) W/M	For HITACHI (5 clip) W/M	For TOSHIBA W/M
Contact Rating	220V 3A	220V 3A	220V 3A	220V 3A	220V 3A
Temperature Range	– 10 degree C to ± 55 degree C	– 10 degree C to ± 55 degree C	– 10 degree C to ± 55 degree C	– 10 degree C to ± 55 degree C	– 10 degree C to ± 55 degree C
Operating Direction of Main Shaft	Clockwise ( CW )	Clockwise ( CW )	Clockwise ( CW )	Clockwise ( CW )	Clockwise ( CW )
Operating Torque of Main Shaft	≤ 0.88 N.m	≤ 0.88 N.m	≤ 0.88 N.m	≤ 0.88 N.m	≤ 0.88 N.m
Insulation Resistance	Above 100 Ω	Above 100 Ω	Above 100 Ω	Above 100 Ω	Above 100 Ω
Insulation Endure Force	AC 1500V ⁄min	AC 1500V ⁄ min	AC 1500V ⁄min	AC 1500V ⁄ min	AC 1500V ⁄min
Max. Setting Time	15 ± 2 Minutes	15 ± 2 Minutes	15 ± 2 Minutes	15 ± 2 Minutes	15 ± 2 Minutes
Longevity	Above 10000 times	Above 10000 times	Above 10000 times	Above 10000 times	Above 10000 times
Wire number	6	6			3
Wire color	Purple,Yellow, BR Orange, BR, Grey	BR , GR , Yellow Yellow, BR, Grey			Blue, Purple, Black
Wire length	760 mm for Purple, Yellow, BL 260 mm for Orange, BR, Grey	750 mm for BR, Green, Yellow 250 mm for Yellow, BR, Grey			Blue: 970 mm, Purple: 940 mm, Black: 410mm
