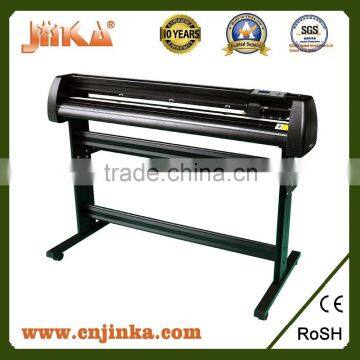

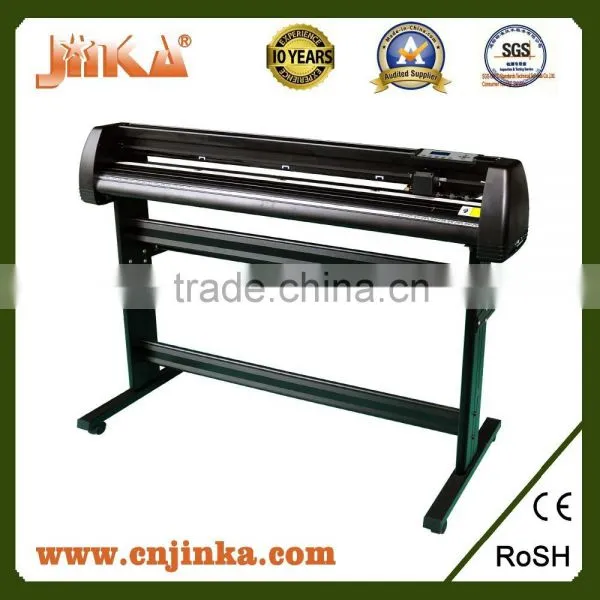

Help CenterGraphtec Cutting Plotter JK1351XE
Related Products
-
Vinyl Cutter Blade.blade.Roland Plotter Blade.Graphtec Plotter BladeNegotiableMOQ: 1 Set -
JINKA Cutting Plotter Practical Type 720 mmNegotiableMOQ: 1 Set
-
Vinyl Cutter Blade.blade.Roland Plotter Blade.Graphtec Plotter BladeNegotiableMOQ: 1 Set
-
Cutter Plotter/ Vinyl Cutter MachineNegotiableMOQ: 1 Set
-
Vinyl Cutting Plotter 720 mm Practical TypeNegotiableMOQ: 1 Set
Vinyl cutting plotter——JK1350XE:
1.Cutting size:1350mm
2.Max paper feeding:1260mm
3.Artcut software in English
4.Optical eye can be added
Model Item |
JK361XE |
JK721XE |
JK871XE |
JK1101XE |
JK1351XE |
Max. paper width |
360mm |
720mm |
870mm |
1100mm |
1350mm |
Max. plotting width |
270mm |
630mm |
780mm |
1000mm |
1260mm |
Net weight/Gross weight |
8/12kgs |
11/21kgs |
13/23kgs |
15/27kgs |
17/30kgs |
Packing size |
62*35*38cm |
96*35*43cm |
111*35*43cm |
134*35*43cm |
159*35*43cm |
interface |
Serial port &USB port(optional) |
||||
Language Format |
DMPL/HPGL |
||||
Max. plotting speed |
800mm/s |
||||
Max. cutting force |
500g |
||||
Cutting Tool |
Imported hardness alloy steel blade |
||||
Power supply |
AC90V~AC240V |
||||
Operation Environment |
Temperature:5°C~35°C Relative humidity:(30%-50%)without condensation |
||||
colors |
White color, grey color, black color |
||||
Standard Accessory :
1. Blade holder 2. Pen holder
3. Blade (3 piece) 4. Hexagon wrench
5. 2A fuse 6. Driver CD (USB driver / MAC driver / Coreldraw driver)
7. 1.5m power cable 8. 1.8m USB cable
9. 2.5m serial cable 10. Dust cover
11. Paper manual 12. Screw
Tutorial video in the CD disk will teach customers how to install the driver and use the software.
Shipping:
1) FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2) By Air or by Sea for batch goods, for FCL / LCL; Airport/ Port receiving;
3) Customers specifying freight forwarders or negotiable shipping methods.
4) Delivery Time: 3-7 days for samples; 7-20 days for batch goods.
Payment:
1) We accept T/T, Paypal, Western Union, L/C(As order)
2) The bank operation fee of L/C payment term is very high. So not advise.

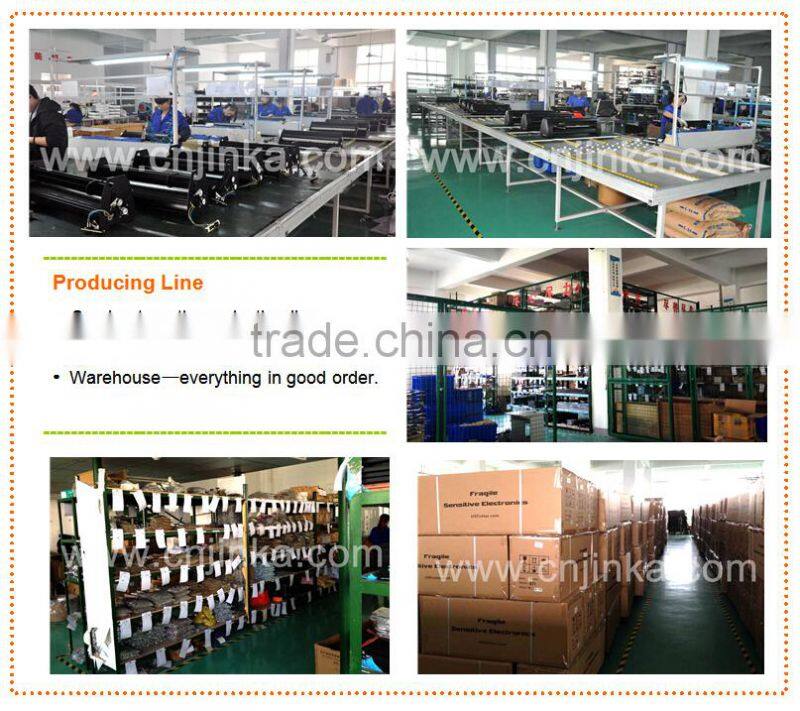

Hefei kaxing Digital Equipment Co. Ltd. has 11 years Production experience in making
many kinds of vinyl cutter and Heat press machine.we have professional R&D Center ,
Aftersale department and factory.We aim to provide the best quality machines and
competitive price to all our customers.
1. One year warranty on whole vinyl cutter plotter .
2. Professional service before and after sale.
3. Supply training video and user' s manual in English.
4. 24 hours support for the software and machine maintenance.
