Display Shelf Equipment of Shuttle Racking For System
- 1000 Ton / Tons per Month
- Shanghai Nanjing
- T/T
- Cement warehouse dry ash warehouse bottom bulk machine LRZSQ-200 automotive bulk machine
- Aggregate line automotive bulk machine SSQ-300 cement clinker warehouse bottom loading machine
- Air chute pneumatic plunger valve Lurui mechanical electric cut-off valve specifications customized
- AS500 air conveying chute top pneumatic conveying trough installation Angle 6-10°
- Storehouse pneumatic switch valve CP500 electric arc valve storehouse side dry ash discharge device
- Sand aggregate bulk machine Coke loading machine Lvrui machinery SSQ-300 type
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | SULI | Model Number: | SL-HJ009 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
CE high density radio shuttle racking system
What's the structure of our radio shuttle rack ?

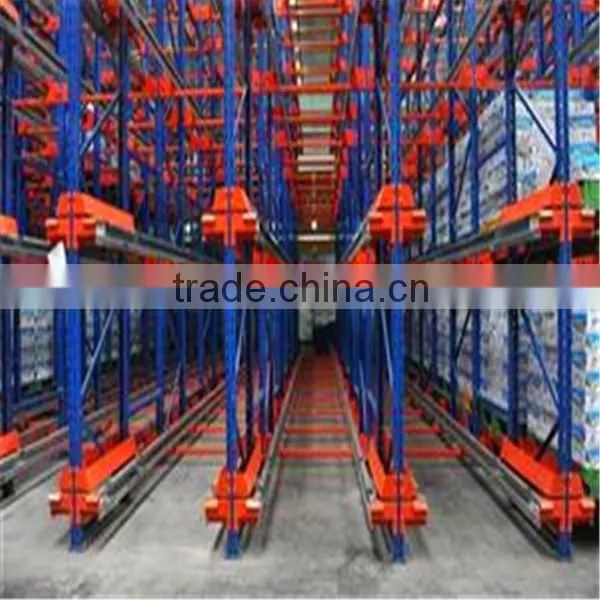

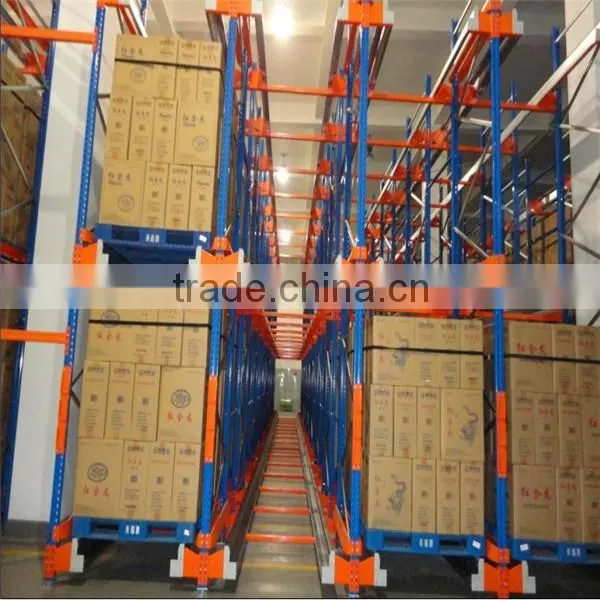

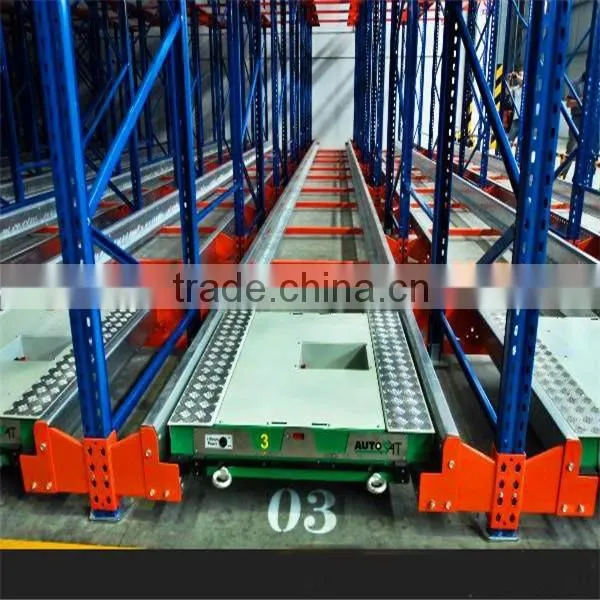

A shuttle system consists of supporting rack, shuttle rails and a shuttle cart. The shuttle cart runs on the rails and is propelled by an electric motor. It also has a platform on the top that can lift up and down. The lifting action is required to lift a pallet that is placed on the rail and then the electric motor moves the cart with the pallet on top into the rack in order to deposit the pallet in its right position.
When the pallet is required, the cart moves in under the pallet, lifts it and brings it to the front of the rack where it can be retrieved by a forklift.

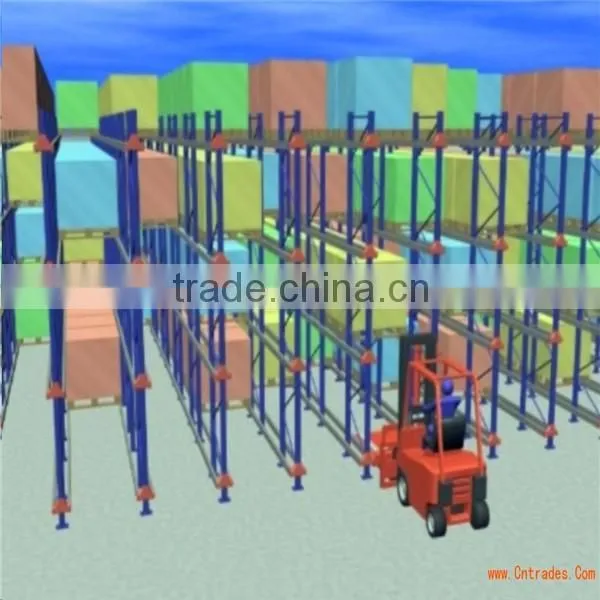

All the movements of the shuttle cart are controlled with a hand held remote control. The shuttle cart is placed in the desired lane with a forklift.
What are the features of our radio shuttle rack ?
Function introduction
number |
Work can |
Charteristic point |
1 |
Manual in-out-stock |
Press the remote manually to achieve single in-out-stock |
2 |
Automatic in-out-stock |
Press the remote manually to achieve automatic in-out-stock for many times |
3 |
First in,first out/first in,last out |
Achieve in-out-stock at two ends of single line |
4 |
Locating shuttle |
Use buzz to locate shuttle out of vision |
5 |
Battery level indication |
Display the remaining amout of electricity to facilitate the operator to charge in time |
6 |
Self-protection funcion |
Function to stop car when meet obstacle |
7 |
Rescue function |
Specially designed rescue car in case of failure funcion |
8 |
Automatical arrangement |
Function to arrange the pallets on rail in place |
9 |
Automatical count |
Function to count cargo under certain rule |
Technical performance and parameters
Order number | ItemS | Performanceandparameters |
1 | (Kg) Rated load capacity | 1500 |
2 | (W) Power of lifting motor | 550 |
3 | (W) Power of traction motor | 550 |
4 |
Drive power supply |
High energy lithium battery |
5 | (AH) Battery capacity | 80 |
6 | (H) Runtime at the normal temperature | >8 |
7 | (H) Runtime at low temperature | >6 |
8 | (H) Charge time | 8 |
9 |
Times of recharge | >800 |
10 |
Remote |
Hand-set remote made in Sweden |
11 |
Controlling mode |
Handling/Automatic mode |
12 | (M) Remote distance | 100 |
13 |
Functional temperate | -30℃~50℃ |
14 |
Programmable Logic Controller | SiemensPLC |
15 |
Travelling mode |
restricted between the designed tracks |
16 | (m/s) Speed without load | 0.8 |
17 | (m/s) Speed with full load | 0.6~0.7 |
18 | (mm) Distance of lift | 45 |
19 |
Transmission mode(lifting) |
Chain |
20 |
Transmission mode(traction) |
Chain |
21 |
Travelling wheel |
High-performance |
22 |
Material of pallet |
Wood, Plastic and Steel |
23 | (mm) Deflection of Pallet | <20 |
24 | L×W mm Suitable pallet size | L1100~1250,W800~1100 |
25 | (Kg) Equipment self weight | 240 |
26 |
Sensor |
Laser (Made in Germany) |
27 |
Detection mode of retarding brake |
Laser detection |
28 |
Detection mode for distance of front and back pallets |
Laser detection |
29 |
Space adjustment of front and back pallets |
Adjust according to goods |
Nanjing port, the closest port to us, is recommended strongly as loading port. Shanghai port is also available, but not recommended because of much higher cost of in-land trucking transportation from our factory.
1. Our engineer will caculate the exact costs and give you a factory pric;
2. The length, width, height will be customized according to your requirements;
3. Help you to keep tabs on the situation of the productivity and give you the latest information;
4. We could talk about the futher details about the size, the packing and the delivery. Our company will do our best to execute the order to your satisfaction.
5. Provide you design for your warehouse and other logistic equipment.
6. Provide aftersale service, listen to your feedback, and provide racks instead of broken ones.
7. We could guarantee that : 3 years against manufacturing defect and offer lifetime consultation on problems occurred.
And any enquiry will be appreciated !
The higher quality products and the higher quality service are waiting for you !
Click "send " now !
