Product Details
Place of Origin: | China | Brand Name: | SULI | Model Number: | SL-HJ005 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.high operating speed2.Powder Coated
3.Lifetime consultation on problems occurred
4.easy to install/dismount

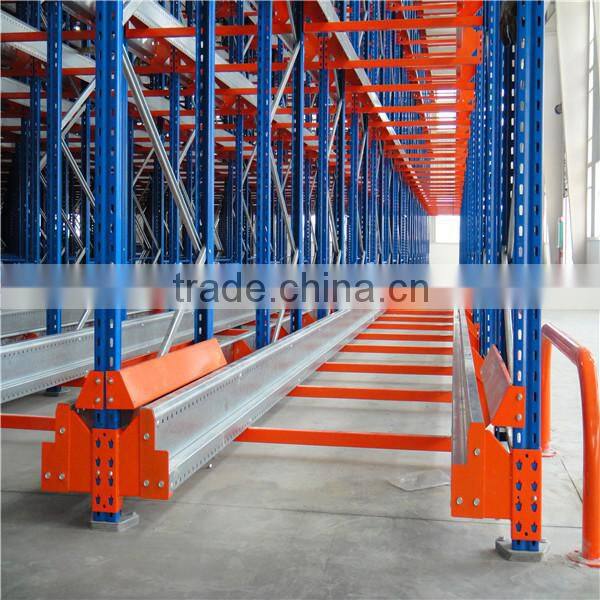

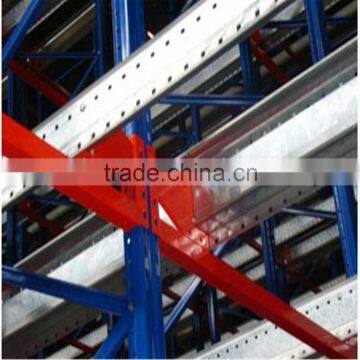

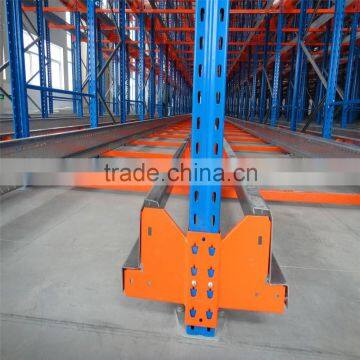

Metal heavy duty shuttle warehosue storage rack
What's the structure of our radio shuttle rack ?

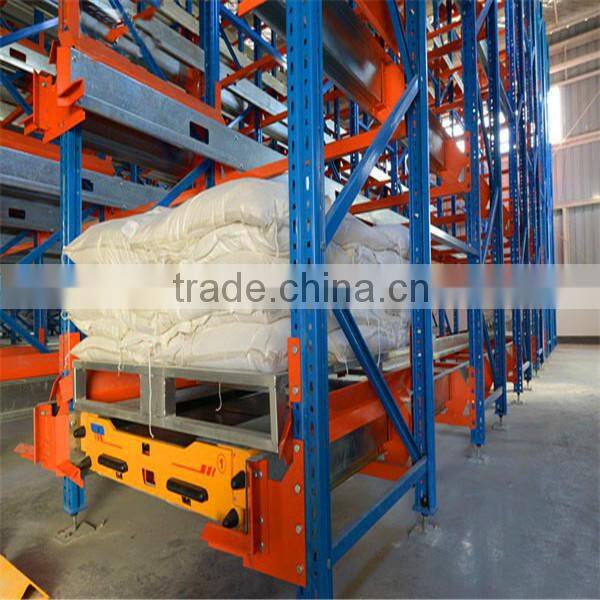

A shuttle system consists of supporting rack, shuttle rails and a shuttle cart. The shuttle cart runs on the rails and is propelled by an electric motor. It also has a platform on the top that can lift up and down. The lifting action is required to lift a pallet that is placed on the rail and then the electric motor moves the cart with the pallet on top into the rack in order to deposit the pallet in its right position.
When the pallet is required, the cart moves in under the pallet, lifts it and brings it to the front of the rack where it can be retrieved by a forklift.
All the movements of the shuttle cart are controlled with a hand held remote control. The shuttle cart is placed in the desired lane with a forklift.
What are the features of our radio shuttle rack ?
The radio shuttle rack used in intensive store shelves is a new type of warehouse racking systems, storage space utilization for high demand jobs in the tray unit for the storage of goods, bulk and out of the warehouse.
The shuttle system allows for more pallets to be stored in a given area when compared to normal static rack .It also minimizes damage to the rack because the forklift does not have to travel into the racking, as is the case with drive-in rack. Accessibility is increased because all the levels can be accessed at any time. In a drive-in rack system the bottom level must be cleared first in order to be able to access the higher levels.
1. Goods can be stored in the warehouses with highest density and low cost.
2. FIFO or FILO, Optional.
3. As each pallet only needs to be positioned at the beginning of the deep lane
storage it increases efficiency within operations.
4. Better safety and anti-seismic performance than drive in racks.
Technical Specifications:
Nominal Loading capacity : 500 KGS~4000KGS
Speed:Max.60M/Min
Operation Methods:
To be operated manually or vehicle-mounted or Radio remote control
Temperature in the freezer:-25°C
Nanjing port, the closest port to us, is recommended strongly as loading port. Shanghai port is also available, but not recommended because of much higher cost of in-land trucking transportation from our factory.
1. Our engineer will caculate the exact costs and give you a factory pric;
2. The length, width, height will be customized according to your requirements;
3. Help you to keep tabs on the situation of the productivity and give you the latest information;
4. We could talk about the futher details about the size, the packing and the delivery. Our company will do our best to execute the order to your satisfaction.
5. Provide you design for your warehouse and other logistic equipment.
6. Provide aftersale service, listen to your feedback, and provide racks instead of broken ones.
7. We could guarantee that : 3 years against manufacturing defect and offer lifetime consultation on problems occurred.
