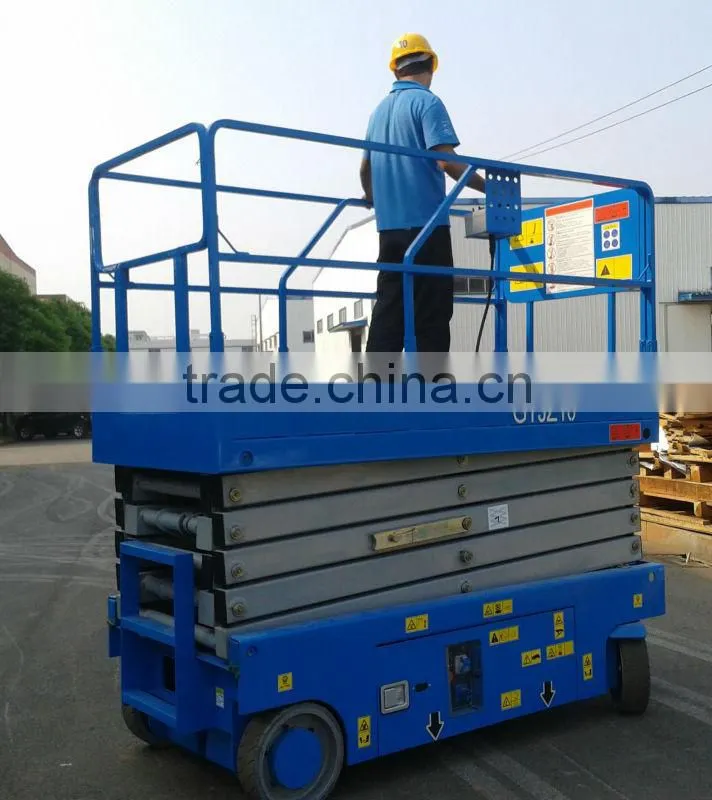

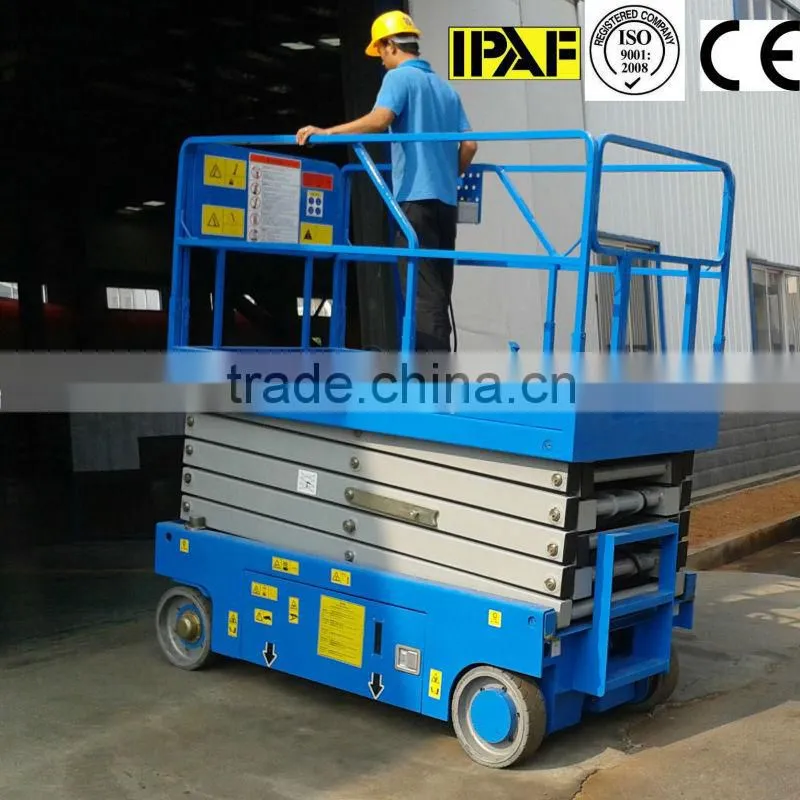

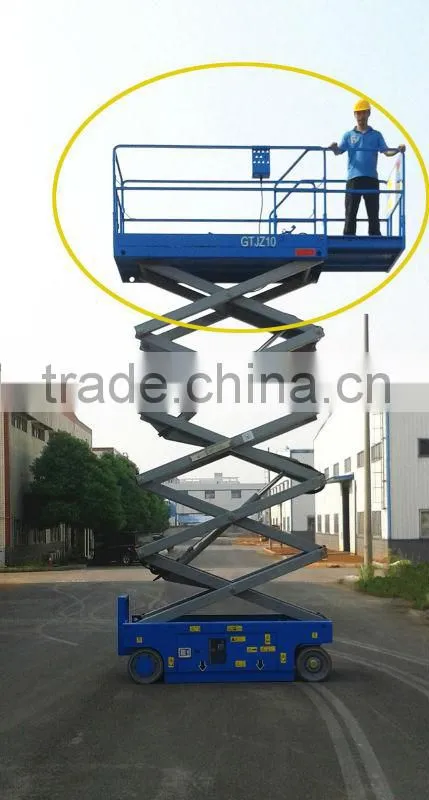

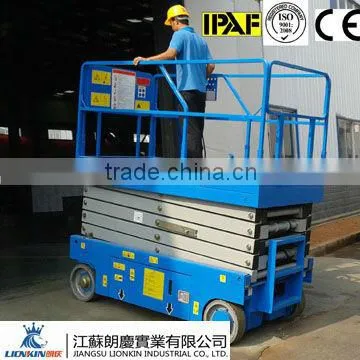

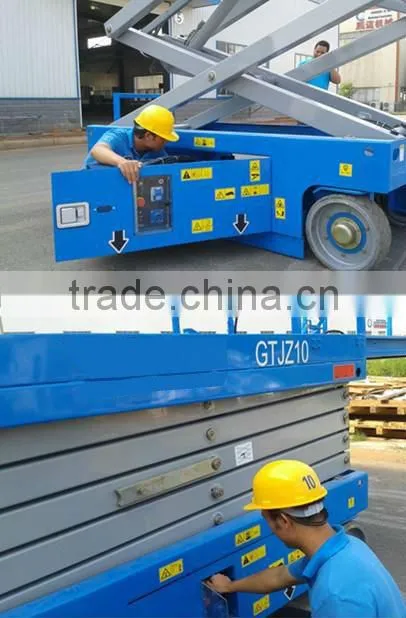

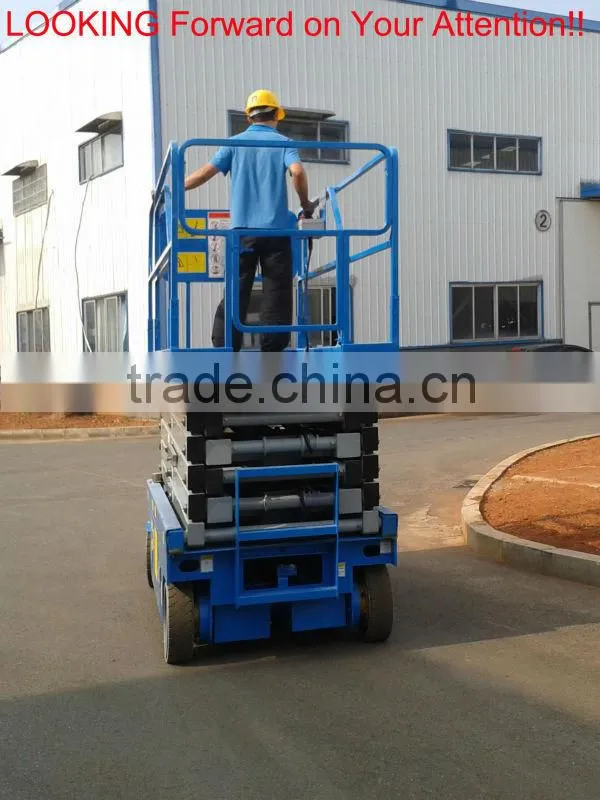

GTJZ12 Self-propelled Scissor Aerial Work Platform-electrical

Name: GTJZ12 Self-propelled Scissor Aerial Work Platform-electrical
Brand: RUNSHARE
SKU: 110838887

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

RUNSHARE

Model Number:

GTJZ12

Jiangsu Lionkin Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

DALIAN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name RUNSHARE

Model Number GTJZ12

Specifications

DC Motor: HydraPower from Korea
Hydraulic pump: HydraPower from Korea
Electromagnetism valve: oil-control (SANT) from Italy

Electrical scissor platform’s configuration

DC Motor: HydraPower from Korea

Hydraulic pump: HydraPower from Korea

Electromagnetism valve: oil-control (SANT) from Italy

Brake: White from USA

RE Motor: White from USA

Hydraulics Release pump: White from USA

Battery: Trojan from USA

Controller: IFM from Germany

Pressure sensor: Meas from USA

Coulometer: Curtis from USA

Model No.		GTJZ12
Max. Platform Height	mm	11600
Max. work Height		13300
Min. Platform Height		1530
Ground Clearance		100/20
Lift Rated Capacity	kg	230
Platform Size	mm	2430×1130
Platform Extend Length	mm	900
Max. Drive Speed(Platform Stowed)	km/h	3.2
Max. Drive Speed(Platform Elevated)	km/h	0.8
Min. Turning Radius	mm	2300
Max. Travel Grade	%	25
power Motor	v/kw	24/3
Battery	v/Ah	4×6/230
Charger	v/A	24/20-30
Overall Length	mm	2440
Overall Width		1150
Overall Height		2680
Overall Net Weight	kg	2800
