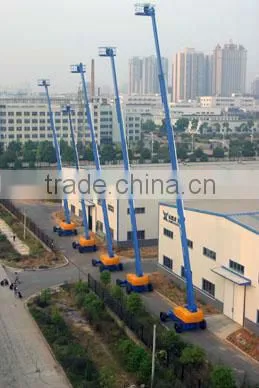

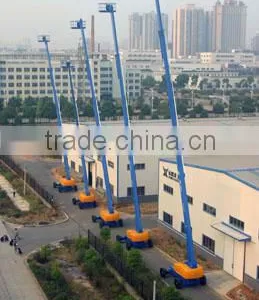

GTBZ18Z TELESCOPIC BOOM

Name: GTBZ18Z TELESCOPIC BOOM
Brand: RUNSHARE
SKU: 110838937

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

RUNSHARE

Model Number:

GTBZ18Z

Jiangsu Lionkin Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name RUNSHARE

Model Number GTBZ18Z

Specifications

Automatic-leveling platform,Hydraulic platform rotation, 360 continuous turntable rotation,Fully proportional joystick controls

	Platform height maximum	18.0m
	Working height, maximum	19.7m
	Horizontal reach maximum	16.5m
	Maximum load capacity	480 kg(restricted),340 kg(non-restricted)
	Turntable tailswing	102 cm
	Turning radius, outside	5.2 m
	Turning radius, inside	3.0 m
	Turntable rotation (degrees)	360° continuous
	Platform rotation	160°
	Maximum allowable 90 lbsside force (CE)	400 N
	Control voltage	24V DC
	Tires and wheels
	Tire size	33×12-20
	Type	solid tire
	Overall tire diameter	83.1 cm
	Wheel diameter	50.8 cm
	Wheel width	25.3 cm
	Wheel lugs	9 @ 3/4 -16
	Lug nut torque, dry	570 Nm
	Lug nut torque, lubricated	434 Nm
	Fluid capacities
	Hydraulic tank	190 liters
	Hydraulic system (including tank)	280 liters
	Fuel tank	151 liters
	Coolant capacity	18.9 liters
	Drive hubs	1.4 liters
	Turntable rotation drive hub	2.8 liters
	Airborne noise emissions	82 dB(A)
	Travel speeds
	Travel speed, stowed	6.3km/h
	Travel speed,raised or extended	1.1km/h
	Travel speed, Boom fully extended	0.65km/h
	Braking distance, maximum
	High range on paved surface	1.2 to 1.8 m
	Gradeability (boom stowed)	30%

	Engine
68	Model	Cummins B3.3-C60
69	Horsepower	45/2200 kw/r/min
70	Drive pump
71	Type	bi-directional variable displacement piston pump
72	Displacement	0 to 46 cc
73	Flow rate @ 2200 rpm, maximum	108 L/min
74	Drive pressure, maximum	250 bar

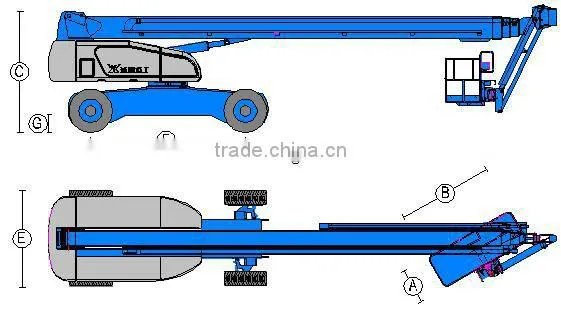

Measurements Specifications
