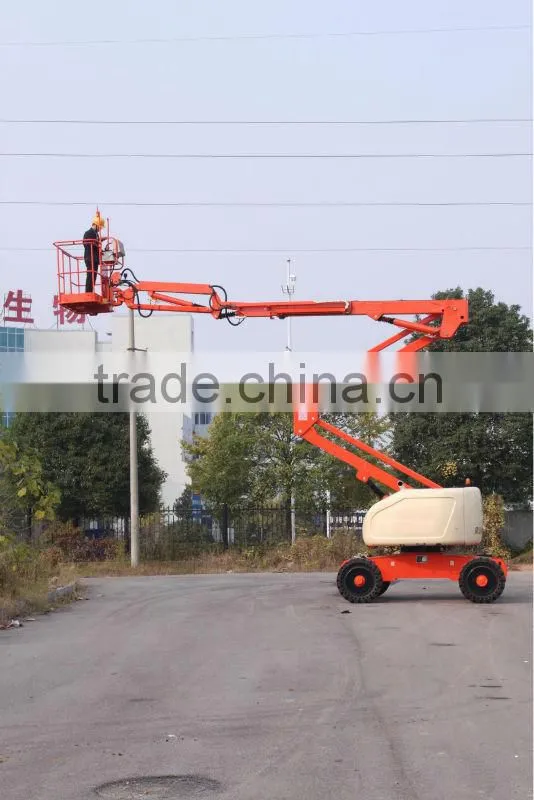

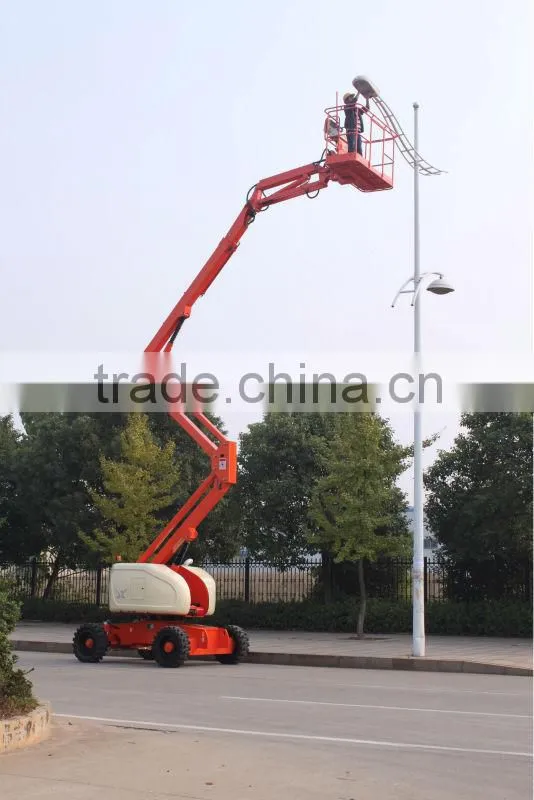

GTBZ22A ARTICULATING BOOM Self-Propelled Lift

Name: GTBZ22A ARTICULATING BOOM Self-Propelled Lift
Brand: LIONKIN
SKU: 110838955

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

LIONKIN

Model Number:

GTZZ20A

Jiangsu Lionkin Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name LIONKIN

Model Number GTZZ20A

Specifications

Automatic-leveling platform,Hydraulic platform rotation, 360 continuous turntable rotation,Fully proportional joystick controls

MODEL		GTZZ 20A
MEASUREMENTS		Metric		US
Working height maximum *		21.22m		69ft6in
Platform height maximum		19.5m		64ft
Horizontal reach maximum **		11.75m		38ft6in
A	Platform width	0.76m		2ft6in
B	Platform length	1.83m		6ft
C	Height-stowed	2.39m		7ft10in
D	Length-stowed	8.9m		29ft2in
E	Width	2.39m		7ft10ft
F	Wheelbase	2.6m		7ft2in
G	Ground clearance-center	0.4m		1ft4in
PRODUCTIVITY
Lift capacity (restricted)		230kg		507lbs
Platform rotation		160°
Jib rotation		135°
Turntable Swing		360°continuous
Turntable tailswing		0		0
Drive speed -stowed		6.3km/h		3.9mph
Travel speed -raised or extended		1.1km/h		0.68mph
Gradeability -stowed		30%
turning radius - inside		3.0m		9ft10in
Turning radius –outside		5.2m		17ft
Controls		12V DC Proportional
Solid tires/Foam filled		33×12-20
POWER
Power source		Cummins B3.3-C60(45kw)
Auxiliary power unit		12V DC
Hydraulic tank capacity		140L
Fuel tank capacity		100L
WEIGHT
2WD		9200kg	20280lbs
STANDARDS COMPLIANCE EN280,JG/T5101,Q/ADZV001-2008

Standard configuration:

Engine	Cummins from Japan
Engine	Perkins from UK
Variable pump	Rexroth from German
	SAUER from USA
	Sam from Italy
	Eaton from USA
Gear pump	MARZOCCHI from Italy
Gear pump	SALAMI from Italy
Travel motor	Rexroth from German
Travel motor	SAUER from USA
Travel reducer	Rexroth from German
	Reggiana Riduttori from Italy
	PMP from Italy
Hydraulic valve	Oil-control from Italy
Hydraulic valve	Hydroforce from USA
