Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > W720T Skid Steer Loader

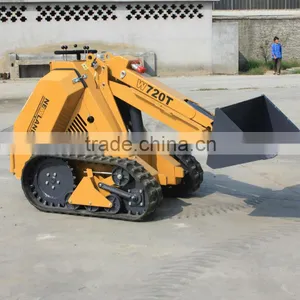

W720T Skid Steer Loader
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
HUACHENG-LIONKIN
Model Number:
W720T
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
HUACHENG-LIONKIN
Model Number
W720T
Place of Origin
Shandong, China
Type
Skid Steer Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
1.32X1.75X0.92m
Rated Load
200Kg
Certification
ISO CE EPA
Warranty
ONE YEAR
After-sales Service Provided
No overseas service provided
Specifications
OUR PRODUCTS IS WITH CE ANS EPA CERTIFICATION
| Mini Skid Steer Loader | |
| Type | W720T |
| Engine brand | KOHLER |
| Pump brand | ZANEDA |
| Rated power | 26HP |
| Performance parameters | |
| Operating weight | 860kg |
| Rated load | 200kg |
| Maximum load | 450kg |
| Drive system | |
| Transmission form | motor drive |
| Tire/Track | crawler 280 |
| Driving wheel | - |
| Maximum walking speed | 10km/h |
| Hydraulic system | |
| Operation mode | hydraulic |
| System pressure | 17MPa |
| Output standard flow rate | 25L/min |
| The maximum output flow | NA |
| Electrical system | |
| Voltage | DC12V |
| Gas volume | |
| Hydraulic tankL | 27L |
| Fuel tank | 21L |
| Outline dimensions | |
| Total high | 1320mm |
| Total length(without bucket) | 1750mm |
| Total width | 920mm |
| Operation parameters(with bucket) | |
| Operating height | 2160mm |
| To bucket pin height | 1810mm |
| Level bucket bottom height | 1730mm |
| With standard bucket length | 2205mm |
| The maximum height on the flip angle | 25º |
| The maximum height of the discharging angle | 30º |
| Discharge height | 1412mm |
| Discharge distance | 530mm |
| Wheelbase | 652mm |
| Tread | 640mm |
| Ground clearance | 140mm |
| Angle of departure | 15º |
| Bucket width | 820mm |
| Bucket capacity | 0.12m³ |
