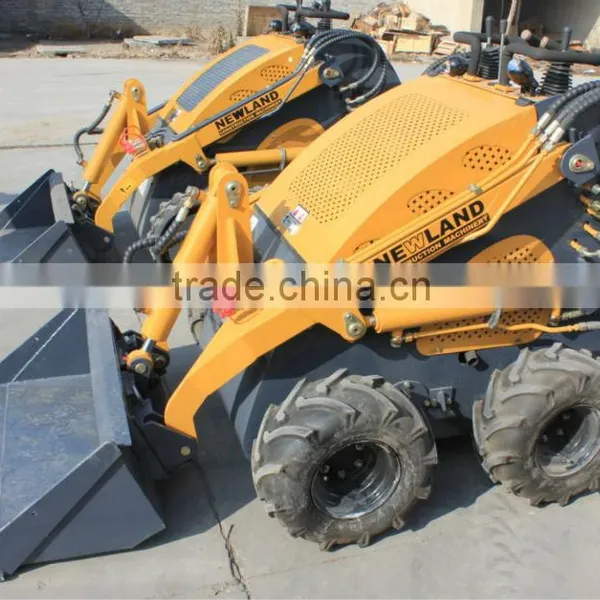

W720 Skid Steer Loader

Name: W720 Skid Steer Loader
Brand: HUACHENG-LIONKIN
SKU: 110837745
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

HUACHENG-LIONKIN

Model Number:

W720

Jiangsu Lionkin Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HUACHENG-LIONKIN

Model Number W720

Place of Origin Shandong, China

Type Skid Steer Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 1.75X1.03X1.21m

Rated Load 200Kg

Certification ISO CE EPA

Warranty ONE YEAR

After-sales Service Provided No overseas service provided

Specifications

OUR PRODUCTS IS WITH CE ANS EPA CERTIFICATION

Type	W720
Engine brand	B&S/HONDA
Pump brand	ZANEDA
Rated power	21HP/23HP
Performance parameters
Operating weight	720Kg
Rated load	200Kg
Maximum load	450Kg
Drive system
Transmission form	chain drive
Tire/Track	16*6-8
Driving wheel	4*4
Maximum walking speed	10km/h
Hydraulic system
Operation mode	mechanical
System pressure	17MPa
Output standard flow rate	25L/min
The maximum output flow	NA
Electrical system
Voltage	DC12V
Gas volume
Hydraulic tankL	27
Fuel tank	21L
Outline dimensions
Total high	1210mm
Total length(without bucket)	1750mm
Total width	1030mm
Operation parameters(with bucket)
Operating height	2210mm
To bucket pin height	1860mm
Level bucket bottom height	1780mm
With standard bucket length	2210mm
The maximum height on the flip angle	25º
The maximum height of the discharging angle	30º
Discharge height	1480mm
Discharge distance	540mm
Wheelbase	636mm
Tread	1750mm
Ground clearance	120mm
Angle of departure	15º
Bucket width	980mm
Bucket capacity	0.15m³
