JC45 Skid Steer Loader

Name: JC45 Skid Steer Loader
Brand: LIONKIN
SKU: 110837783
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

LIONKIN

Model Number:

JC45

Jiangsu Lionkin Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name LIONKIN

Model Number JC45

Place of Origin Shandong, China

Type Skid Steer Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 3540X1720X2140mm

Rated Load 700KG

Certification ISO CE EPA

Specifications

OUR PRODUCTS IS WITH CE , ISO ,EPA CERTIFICATION

Model		JC45
Engine model		490
Bore x stroke (mm)		95X 105
Rated power (Kw)		37
Rotating speed ( rpm)		2650
Number of cylinders		4
Max. torque (N .m)		156
Displacement ( L)		2.67
Max.Speed(km/h)		12
Tire Model		10-16.5
Operating load (kg)		700
Lifting		Arc upgrade
Bucket capacity (m³)		0.4
Rated flux (L/min)		75
Fuel tank capacity (L)		65
self weight bucket (kg)		300

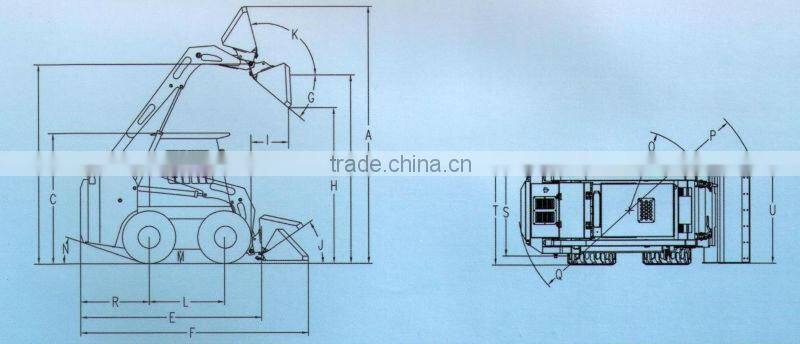

A	Overall operating height (mm)	3980
B	Height to bucket hinge pin (mm)	3080
C	height to top of cab (mm)	2140
D	Height to bottom of level bucket(mm)	2913
E	Overall length without bucket(mm)	2640
F	overall length with bucket(mm)	3420
G	Dumping angle at maximum height(°)	40
H	Dumping height(mm)	2380
I	Dumping reach(mm)	700
J	Rollback o bucket on ground(°)	30
K	Rollback of bucket at full height(°)	104
L	Wheelbase(mm)	991
M	Ground clearance(mm)	185
N	Angle of departure(°)	20
O	Front turning radius without bucket(mm)	1168
P	Front tuning radius(mm)	1958
Q	Rear tuning radius(mm)	1630
R	Rear axle to bumper (mm)	1108
S	Tread width, enter line to centerline (mm)	1450
T	Width (mm)	1720
U	Bucket width (mm)	1740
