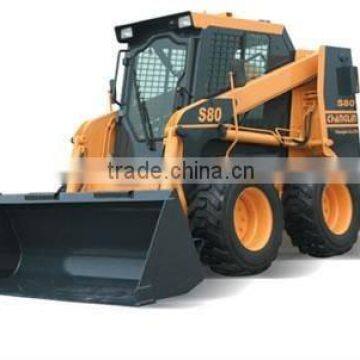

Help CenterS80 Skid Steer Loader
Related Products
Specifications
Equipped with reliable CATERPILLAR 3306B license engine or genuine Cummins engine
Features of Skid Steer Loader:
1. Equipped with reliable CATERPILLAR 3306B license engine or genuine Cummins engine
2. 3 forward & 3 reverse power shift transmission
3. Bucket automatic leveling ability
4. Combined seal cylinder obtains high seal performance and more reliability
Specifications of Skid Steer Loader:
Overall Dimension | |||
1 |
Length(with bucket on ground) |
3270(mm) |
|
2 |
Width(to outside of wheels) |
1760(mm) |
|
3 |
Bucket width |
1850(mm) |
|
4 |
Height(To the top of the cab) |
1946(mm) |
|
5 |
Wheelbase |
1110(mm) |
|
6 |
Tread |
1454(mm) |
|
7 |
Min. ground clearance |
210(mm) |
|
Main Technical Specification | |||
1 |
Rated load |
900(Kg) |
|
2 |
Operating weight |
3667KG |
|
3 |
Rated bucket capacity |
0.5(m3) |
|
4 |
Max. breakout force |
28kN |
|
5 |
Static tipping loads |
≥20kN |
|
6 |
Max. dump clearance |
2425(mm) |
|
7 |
Dump reach |
553(mm) |
|
8 |
Dump angle at any position |
≥400 |
|
Angle of departure |
300 |
||
8 |
Digging depth(with bucket bottom horizontal) |
0(mm) |
|
9 |
Min. turning radius |
||
(1) Outside of bucket |
2030(mm) |
||
(2) Outside of front wheel |
1295(mm) |
||
(3) outside of rear frame |
1500(mm) |
||
10 |
Pivot angle frame |
400 |
|
11 |
Oscillating angle of rear axle |
+12o |
|
12 |
Lifting time of bucket |
≤4.8(sec.) |
|
13 |
Lowering time of bucket |
≤6.7(sec.) |
|
14 |
Dumping time |
≤2.1(sec.) |
|
15 |
Traveling speed(Km/h),1forward and 1 reverse |
||
(1) forward gear |
0~11 |
||
(2) reverse gear |
0~11 |
||
Diesel engine | |||
1 |
Model |
Cummins B4.5-C80 0 |
|
2 |
Type |
Direct injection. Turbocharge. Water cooling |
|
3 |
Rated output |
59 (kW) |
|
4 |
Inter-bore of cylinder/stroke |
114/135(mm) |
|
5 |
Total exhaust of cylinder |
8.3 (L) |
|
6 |
Model of starting motor |
42MT |
|
7 |
Power of start motor |
8.2(KW) |
|
8 |
Voltage of starting motor |
24(V) |
|
9 |
Rated speed |
2200(r/min) |
|
10 |
Max. Torque |
998(N.M) |
|
11 |
Starting type |
Electric |
|
12 |
Min. specific fuel consumption |
207(g/Kw.h) |
|
13 |
Engine specific oil consumption |
0.9-1.6(g/Kw.h) |
|
14 |
Net weight |
617(kg) |
|
