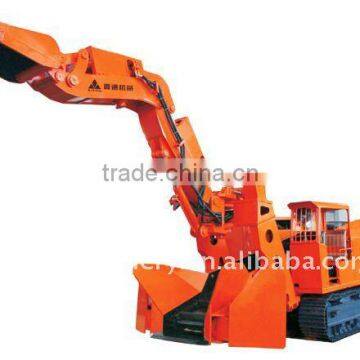

LWL-180 Crawler Bucket Loader
Negotiable
/ Set
1 Set(Min. Order)
- SHANGHAI
- T/T Money Gram
You May Like
Product Details
| Condition | New | Brand Name | Siton | |
| Model Number | LWL-180 | Place of Origin | Jiangxi, China | |
| Type | Other, Crawler bucket loader | Moving Type | Crawler Loader |
Product Description
Specifications
our products has been sold to many countries!| Project | Unit | Technical parameters | |
| Weight | kg | ≈16800 | |
| Loading capacity | m3/h | ≈180 | |
| Mining width | mm | ≤7030 | |
| Mining distance (from the shovel I) | mm | ≤3170 | |
| Mining height | mm | ≤4635 | |
| Digging depth | mm | ≤800 | |
| Loading height | mm | 1586~2005(Variable) | |
| Uninstall from the | mm | 2200(Variable) | |
| Walking speed | mm | 0.89±5% | |
| Scraper chain speed | m/min | 44 | |
| Scraper-chain form of transport | Ds dual drive / single-chain single-drive | ||
| Minimum turning radius | m | ≥12 | |
| Rated working pressure | Mpa | ≤20 | |
| Away from the track surface | mm | ≥27 | |
| Total power | kw | 55/45 | |
| Wheelbase | mm | 1111 | |
| Gauge | mm | 600/762/900 | |
| Maximum material by size (width × height) | mm | 880×730 | |
| The maximum rotational angle of boom | (°) | ±55 | |
| Dimensions | Long | mm | ≥8000 |
| (transporting) | Wide | mm | 1790 |
| High | mm | ≥2430 | |
| Dimensions | Long | mm | ≥9700 |
| (working) | Wide | mm | 2515 |
| High | mm | ≥2550 | |
