Home > Products > Mining Machinery > D32 Mining Dump Truck
D32 Mining Dump Truck
- Tianjin
- T/T Money Gram
You May Like
Product Details
| Fuel | Diesel | Gear Box | Automatic | |
| Made In | China | Steering | Left | |
| Drive | FWD | Brand Name | BZK | |
| Place of Origin | Beijing, China | Model | Rigid Dump Truck | |
| Year | 2013 |
Product Description
Specifications
The D32 Off-Road Dump Truck is specially designed and developed for medium-sized Mining projects.
Features:
The D32 Off-Road Dump Truck is specially designed and developed for medium-sized Mining projects. It is also suitable for over-burden hauling in quarries’ operations and hydro power station constructions.
Parameter:
Item | Unit | Parameter |
Overall dimensions(L×W×H) | mm | 7642×3837×3700 |
Payload | Kg | 32000 |
Engine Model Cummins | Cummins QSM11-C330 | |
Max. Engine Power | km/rpm | 246Kw@2100 |
Max. Engine Torque | rpm | 1674N.m@1400 |
Max Grade-ability | % | 50 |
Min. Turning Radius | m | ≥35 |
Top speed | Km/h | 7642×3837×3700 |
Item | Unit | Parameter |
G.V.W. | kg | 55400 |
Transmission | Eaton MRT-12710B.Double transmitting shafts in main and sub box | |
Drive axle | With wheel hubs reductions, total reduction ratio: 11.86:1. The main reduction being with heavy-duty single stage spiral bevel gear; Hubs reduction with 3 planetary gear reduction system. | |
Suspension | Nitrogen/oil suspension units | |
Dump Body | Wedge-shaped | |
Body capacity | m3 | Struck 15 Heaped (SAE2:1)20 |
Body hoist | sec | Hoisting time≤18 Return time≤25 |
Twin three stage double acting cylinders are mounted on the outer chassis frame | ||
Clutch | 15” Double-Plate dry clutch | |
Model of Tires | 18.00-25 | |
Electrical system | V | 24 |
Steering | Fully hydraulic power steering system | |
Brakes | Double circuits, pneumatic control brake system |

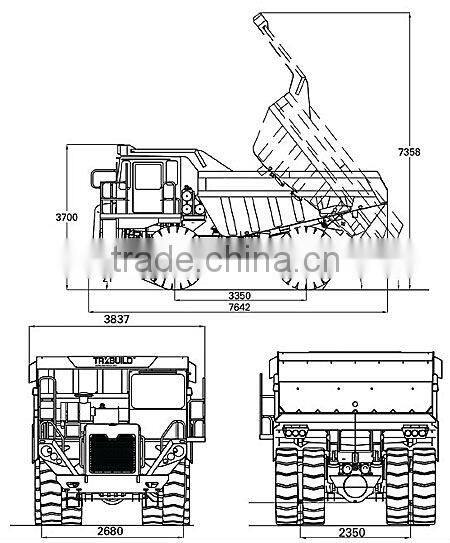

Dimensions:
