Home > Products > Mining Machinery > D45 Rigid Dump Truck

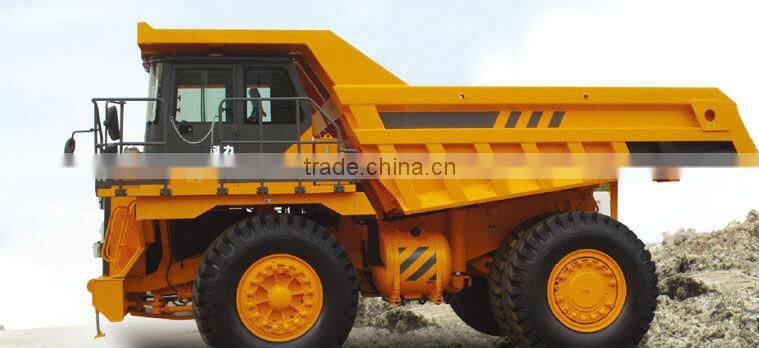

D45 Rigid Dump Truck
- 30 Set / Sets per Month
- Tianjin
- T/T
Product Details
Condition: | New |
Product Description
Specifications
the 45 tone payload makes the D45 a lean and mean transport machine no heavy construction site can do without
Features:
Fitted with one of the biggest dumper in the market, the 45 tone payload makes the D45 a lean and mean transport machine no heavy construction site can do without. Shipped with the same steel braced framework evident in all our trucks, the D45 is the productive workhorse with the monster payload.
Item | Unit | Parameter |
Overall dimensions(L×W×H) | mm | 8500×4300×4300 |
Payload | Kg | 45000 |
Engine Model Cummins | Cummins QSX15 | |
Max. Engine Power | km/rpm | 391Kw@2100 |
Max. Engine Torque | rpm | 2440N.m@1400 |
Max Grade-ability | % | 54 |
Min. Turning Radius | m | ≥34 |
Top speed | Km/h | 8500×4300×4300 |
Item | Unit | Parameter |
G.V.W. | kg | 82000 |
Wheelbase | mm | 4000 |
Front Track | mm | 3400 |
Rear Track | mm | 2880 |
Mini Turning Radius | m | ≤9 |
Transmission | Allison H5610AR Automatic type with hydraulic torque converter ,Integrated hydrodynamic retarder between converter,and gearbox. 6 forward and 2 reverse speed | |
Steering | Fully hydraulic steering system with adjustable steering wheel height and inclination column,Service brake - Self adjusting dry disc brakes for all wheels. Independent air over | |
Brakes | Service brake - Self adjusting dry disc brakes for all wheels. Independent air over hydraulic actuation circuits fro front and rear wheels. Parking brake - Normally closed caliper type on driveline disc brake. Retarder incorporated in transmission | |
Drive axle | Fully floating axle shaft with hub reduction ,Final reduction ratio21.11 : 1 | |
Suspension | Nitrogen/oil suspension units | |
Dump Body | Wedge profile type for quick clean discharge. Body plate and under floor ribs are made from high yield point steel.Exhaust heating at the bottom of body | |
Body capacity | m3 | Struck 21 Heaped (SAE2:1) 27.6 |
Body hoist | sec | Hoisting time≤18Return time≤18 |
Twin three stage double acting cylinders are mounted on the outer chassis frame | ||
Model of Tires | 21.00-35 | |
Electrical system | V | 24 |

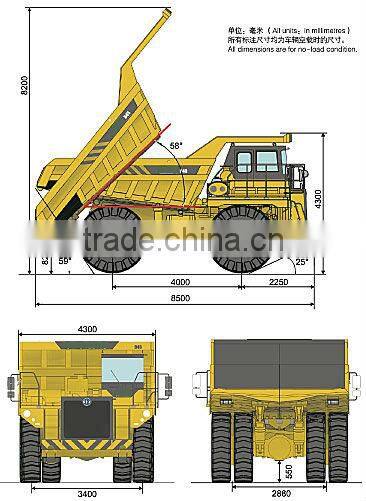

Dimensions:
