Home > Products > Forklift Trucks > CPCD25HF into containers forklift truck

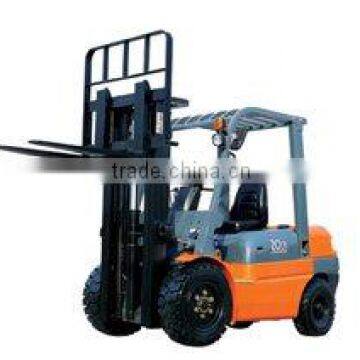

CPCD25HF into containers forklift truck
- 100 Set / Sets per Month
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Fujian, China | |
| Brand Name | XGMA | Model Number | CPCD25HF | |
| Type | Powered Pallet Truck | Power Souce | Diesel Engine | |
| Rated Loading Capacity | 2500KG | Max. Lifting Height | 3000MM | |
| Min. Lifting Height | 127MM | Fork Length | 1070 | |
| Fork Width | 122 | Overall Dimensions | 3688x1240x2122 |
Product Description
Specifications
2-3 ton H type the secpe of application of fullfreelift trucks are wider than the ordinary ones. They are especially suitable
2-3 ton H type the secpe of application of fullfreelift trucks are wider than the ordinary ones. They are especially suitable for loading/unloading and stacking the goos in narrow places. For example : in holds, on shops and inside containers etc. with lower height in a novel style, these trucks are easy to be operated and maintained. Various domestic and imported attachments are available upon request.
Technical parameter:
| Type | Unit | CPCD25HF | |
| Rated capacity | kg | 2500 | |
| Dead weight | kg | 3850 | |
| Standard Fork: L×W×H | mm | 1070×122×40 | |
| Turning radius | mm | 2400 | |
| Overall dimensions: L×B×H | mm | 3688×1240×2122 | |
| Max. Travel speed | Km/h | 19.5 | |
| Gradeability (Full load) | % | 15 | |
| Load center distance | mm | 500 | |
| Tilt angle of mast (F/B) | ° | 6°/12° | |
| Standard distance of forks | mm | 260-1030 | |
| Max lifting height | mm | 3000 | |
| Free lifting height | mm | 150 | |
| Min. ground clearance | mm | 127 | |
| Track (F/R) | mm | 1020/970 | |
| Wheelbase | mm | 1650 | |
| Tyre | Front |
| 28×9-15-14PR |
| Rear |
| 6.5-10-10PR | |
| Engine | Type |
| 490BPG/A490BPG (environmental) |
| Rated power/ speed | Kw/r.p.m | 37/2650 | |
| Max. torque/Speed | N.m/r.p.m | 145/1800-2000 | |
