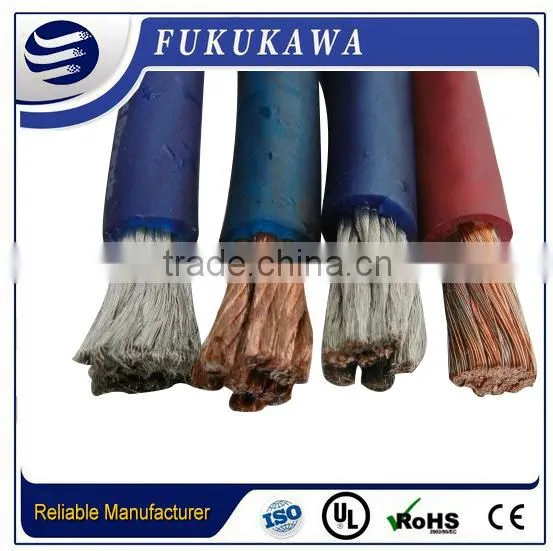

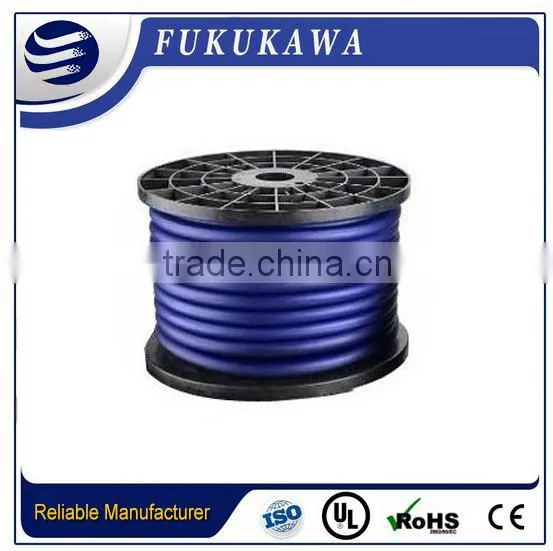

Auto Cable /Car Audio Cable
Specifications
Best Auto Cable for car
PVC Insulated Flexible Auto Cable
1. Standard: BS6004
2. Application: These wires are used for the wiring of switch control, relay and instrument panels of power switch-gear, and such purpose as internal connections in rectifier equipment and in motor starters and controllers, where operation at temperature of 70°C
3. Construction: plain annealed copper conductor stranded, PVC insulated
4. Voltage: 300/500V, 450/750V
5. Core Color: Red, blue, white, green, yellow, brown, black
6. General application:
car cable, battery cable, booster cable, auto cable, automobile cable, jumper cable for car battery charging; inside building in embedded installations. Insulation sheath material and color: PVC in red, black, blue, and orange etc.
7.Nominal cross-sectional area of core (size):
0.3mm2, 0.5mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 8mm2,10mm2,13mm2, 16.0mm2, 19mm2, 25mm2, 28mm2, 32mm2, 35mm2, 38mm2, 45mm2, 50mm2, 56mm2, 65mm2, 70mm2, 75mm2, 80mnm2, 95mm2, 107mm2 and 120mm2 and AWG 6#, 4#,2#,1#,1/0,2/0,3/0,4/0
8.Construction
PVC INSULATED FLEXIBLE WIRE SINGLE CORE | |||
SIZE/MM2 |
STRUCTURE/MM |
OVERALL DIAMETER/MM |
WEIGHT(KG/KM) |
0.3MM2 |
16X0.15 |
2.3 |
6.2 |
0.4MM2 |
23X0.15 |
2.5 |
8.5 |
0.5MM2 |
16X0.20 |
2.6 |
8.7 |
0.75MM2 |
24X0.20 |
2.8 |
12.8 |
1.0MM2 |
32X0.20 |
3 |
14.5 |
1.5MM2 |
48X0.20 |
3.5 |
20.5 |
2.5MM2 |
49X0.25 |
4.2 |
32.5 |
4.0MM2 |
56X0.30 |
4.8 |
52.4 |
6.0MM2 |
84X0.30 |
6.4 |
74.8 |
10MM2 |
84X0.4 |
8 |
124.4 |
16MM2 |
126X0.4 |
9.4 |
185.4 |
25MM2 |
196X0.4 |
11.5 |
288.1 |
35MM2 |
276X0.4 |
13 |
397.2 |
50MM2 |
396X0.4 |
15 |
557.4 |
70MM2 |
360X0.5 |
17 |
772.1 |
Package:
1) Packing length: 100 to 1,000m reeled in carton drum or according to customers' requirement
2) Outer packing: carton box, pull box, wooden case
3) Other packing requirement according to client's' request
1. Response within 12 hours
2. Strict quality control system.
3. Faster lead time than our competitors.
4. Excellent quality with reasonable price.
5. Strong technical support (technical data, drawing, etc.)
6. Cable solutions to your particular requirements.
7. Free sample is available with economic express fee.
8. 12 months quality guarantee after delivery.
About Us:
We Fukuawa (Fukchuen) Company,RongTai company,JinRongYu Cable Company just the Son Companies OF HONGKONG KIN DING TAI GROUP.(KDT GROUP) Which Establish in 2009.
1.We have 3 factories in Mainland, different factory produce different kingds of cables with good price.
Our productsCovering:UL Electric Cables,Thhn/Thwn,Thw/Tw,Spt Teflon cables, fire resistant cables, optical fiber Cables, Medical wires,silicon wires,any kinds of speicial cables.
also could make Multicore Control Cables,Network cables,coaxial cables,communication cables, electric cables, welding cables,Mini HDMI,MINI USB3.0,MINI Displayport Cable etc.
2.Certificate: UL. CE. RoHs. ISO. SGS.etc.
3.R&D: More Than 30.
4.Professional Test Department. (We could pass any test if you need for your goods.)
5.We also the supplier of Huawei,Lenovo,Foxconn etc.
HOPE WE COULD BE A PART OF YOU IN THE COMING FUTURE .
1. What is your Brand?
Fukukawa is specialized for UL cable, XLPE/PE/PVC/Rubber/Teflon/PTFE/PUR any insulated Cables for medium-low voltage electric products.
2. Do you have any experiences?
We export large quantities to North America,South America,European Country,Middle East, Africa, Southeast Asia . Bid tenders of government in some Middle East and Africa Countries.
3. Can I get samples before order?
Yes, we offer you sample for quality check.
4. Can I customize some special product and make my logo on the product?
OEM and ODM are welcomed. We are focusing on customer service.
5. Payments:
Western Union, T/T and L/C are available.
6. What certificates you have?
CE, CB, UL ,SGS, ISO9001.
7. Special support for customer:
Provide USD $50,000 Credit; 2 years guarantee, the replacements free during our guarantee time.
8.Delivery time:
20working days after receive your deposit.
9. For more service and details, welcome to send us message or inquiry.
skype:williamqlq Whatsapp:0086 15818359798
