Industrial evaporative air chiller
If you are interesting in our product, please fell free to contact with us. We will serve you anytime.

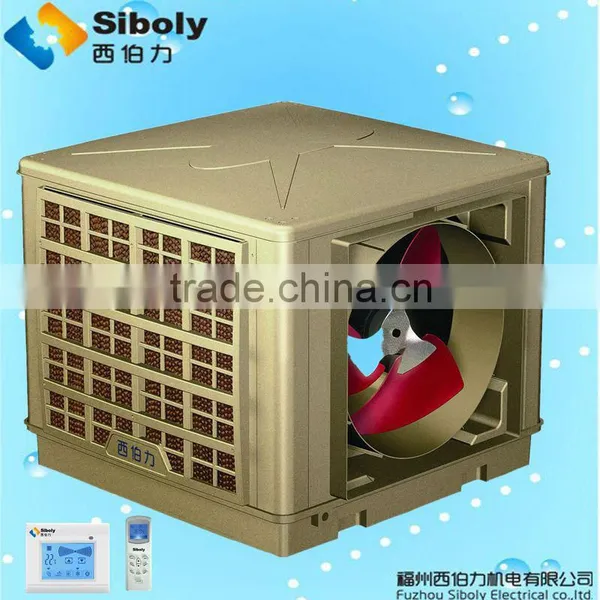

Industrial evaporative air chiller
Work Principle: pump water to wet the wet curtains,then a high power fan blow fresh and moist air in the cabnit into a room,while outdoor dry and hot air by pressure continuously goes through the wet pads which cool the hot air into the cabinet.
Applying efficienct “directly cooling by evaporativing”techonology,as water evaporated, energy is lost from the air reducing temperature.
Application places: large areas including factories, warehouses, assembly lines, laundries, large kitchens, Coffee shops, welding shops, auto service garages, outdoor loading docks, outdoor restaurants, swimming pools, tennis courts, golf driving ranges and hundreds of others otherwise "impossible" places that need cooling.
Detailed product description:
air flow |
20000m3/h |
voltage |
220v/50hz |
power |
1.5kw |
|
water consumption |
10-15L/h |
|
dimenstion of air outlet |
670mm*670mm |
Size(L*w*h) |
1100mm*1100mm*920mm |
weight |
75kg |
effective area |
150m2-200m2 |
noise |
71db |
type of bolwer fan |
axial |
material of shell |
the improvement of plastic PP |
wind speed |
1 gear,LCD screen |
discharge |
Sideward |
Feature:
Casing: Patent casing. Adopt dedicated polymer, which is formidable in anti-aging, anti-ultraviolet and anti-corrosion. Optimize the design of structure, which is effective in anti-pressure, anti-knock, anti-deformation.
Motor: Adopt aluminium alloy casing material, blazonry, light weight, good heat dissipation, high efficiency. Use secure protection class IP55, to prevent the dust and moisture from invading. Equipped with the famous “C&U” Bearing, maintenance free, safe, low noise, small vibration, long service life.
Structure:For different application situation, there are three methods of air outlet: top,side & down air discharge.
Air Blower:Use professional-design axial fan. Larger airflow. Latest technology. Lower noise.
Cooling Pad:Use high-performance 5090 evaporative cooling pad, outstanding evaporative capacity, and effective in cooling.
Control System:Adopt the leading LCD-Touch controler, serve with Intelligent Three prase type and Frequency Speed Control System type.
Water Distribution:Adopt open-type water distributor, well-distributed and fluent flow,resistance to block.
Certification( CE / 3C certification / Quality Certification / New-tech enterprise / ISO14001 / HVAC Membership Certificate)
