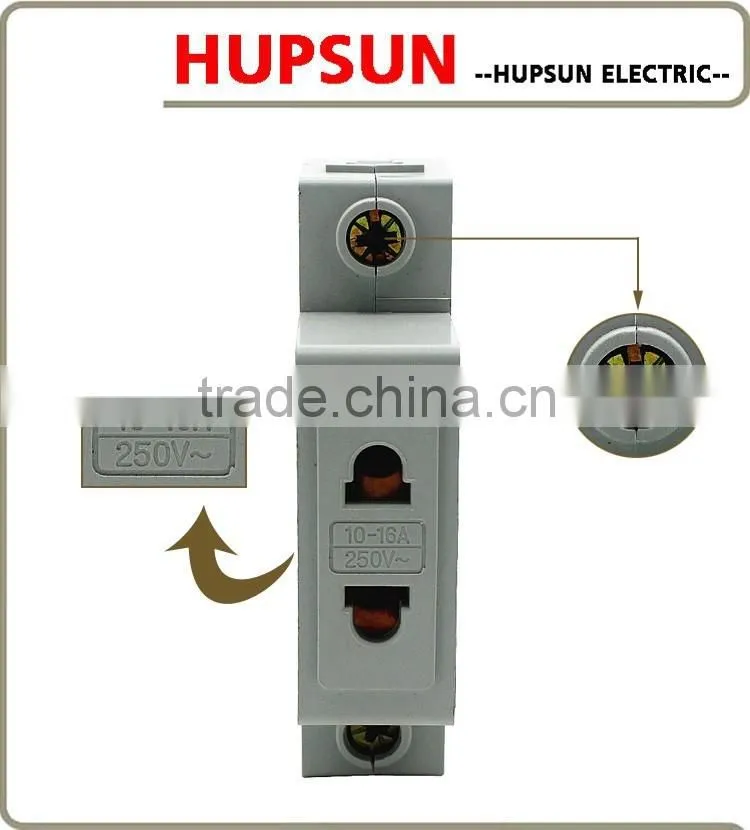

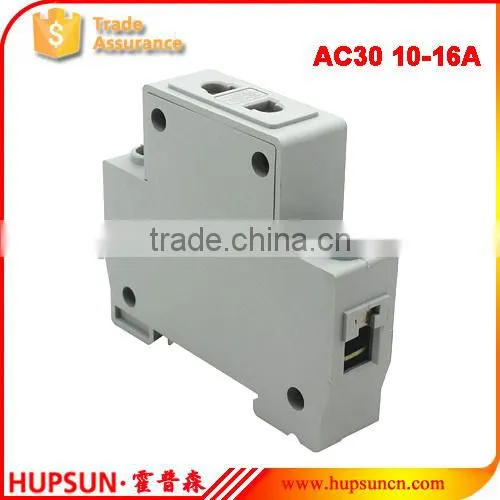

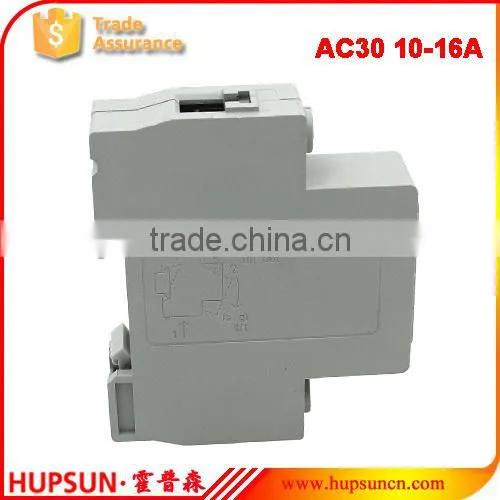

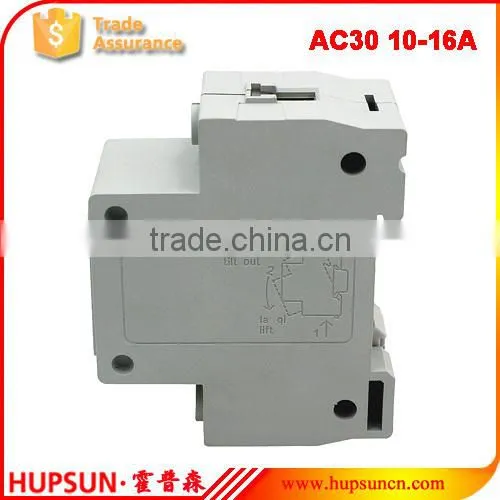

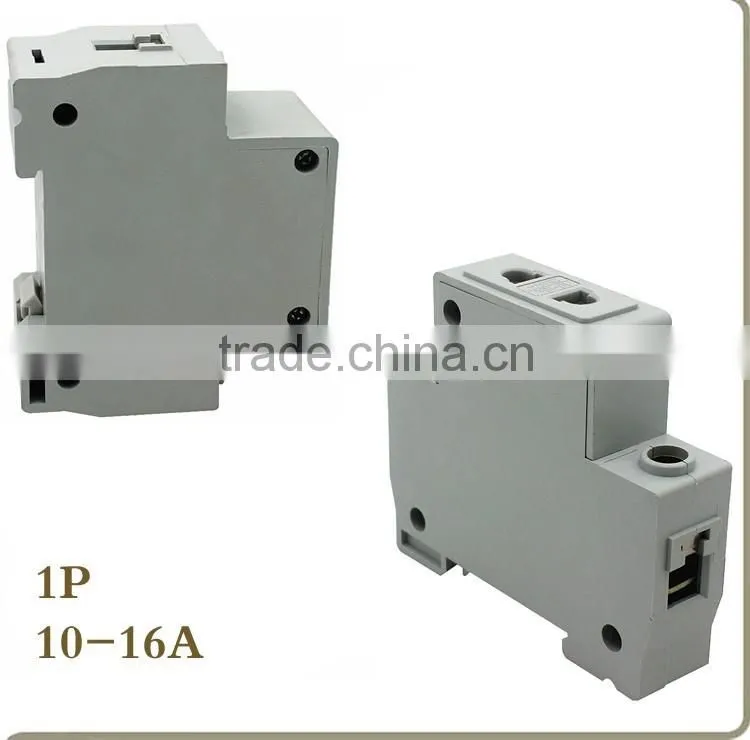

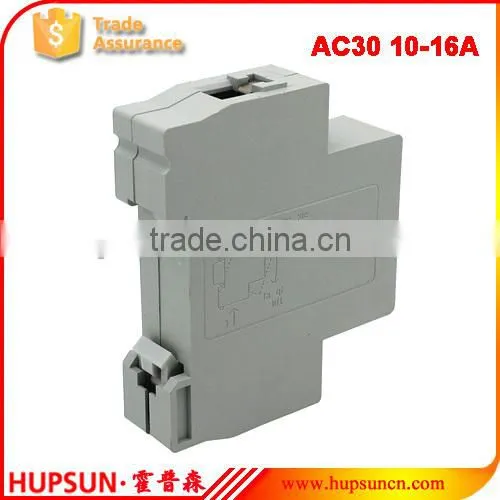

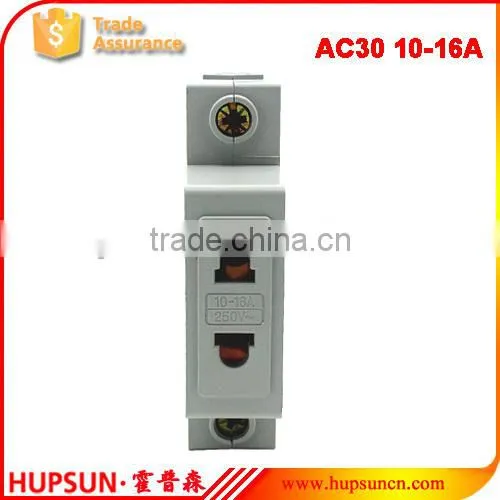

1P female Electric Plugs And Sockets AC30
1P female Electric Plugs And Sockets AC30
1. Scope & application: Modular Sockets
Modular sockets are applied to AC 50Hz, rated work voltage 250V/ 440V and below, rated current to 10A/ 16A/ 25A, and usually use for home, office, farm, light industry and so on.
2. Construction features: Modular sockets
Modular sockets has good reliable contact, which is suitable for guide installation and can be used together with our other modular products for connection of mobile devices, tools or electric and electronic non-modular equipments directly inside civil and industrial switchboards.
The products comply with the standard IEC60881-1, GB2099.

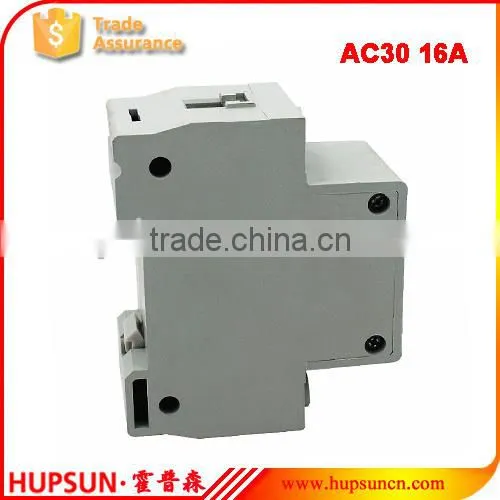

1P female Electric Plugs And Sockets AC30
3. Main parameter: Modular sockets
| Pole | Voltage | Current | Operation life | Standard | Connect wire | Modular Mounting | Installation |
| 2P | 250V | 10A | 5000 cycles | IEC, CCC | <16MM2 | yes |
DIN-Rail |
| 2P+E | 250V | 10A, 16A | 5000 cycles | IEC, CCC | <16MM2 | yes | DIN-Rail |
| 3P+E | 440V | 16A, 25A | 5000 cycles | IEC, CCC | <16MM2 | yes | DIN-Rail |
| Type | Current(A) | Voltage(V) | Width(mm) | Poles | Connection Capacity |
| AC30-10/2 | 10 | 250 | 18 | 2 | ≤16MM2 |
| AC30-10/2 | 16 | 250 | 18 | 2 | ≤16MM2 |
| AC30-10/2 | 10 | 250 | 36 | 3 | ≤16MM2 |
| AC30-10/2 | 16 | 250 | 36 | 3 | ≤16MM2 |
| AC30-10/2 | 20 | 250 | 36 | 3 | ≤16MM2 |
| AC30-10/2 | 25 | 250 | 36 | 3 | ≤16MM2 |
| AC30-10/2 | 10 | 250 | 36 | 3 | ≤16MM2 |
| AC30-10/2 | 16 | 250 | 36 | 3 | ≤16MM2 |
| AC30-10/2 | 16 | 415 | 54 | 4 | ≤16MM2 |
| AC30-10/2 | 25 | 415 | 72 | 4 | ≤16MM2 |

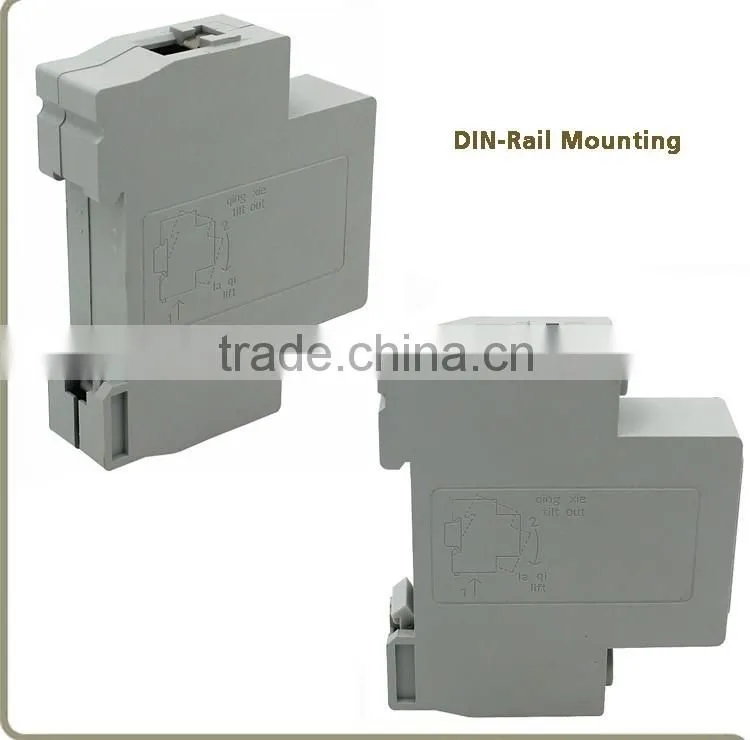

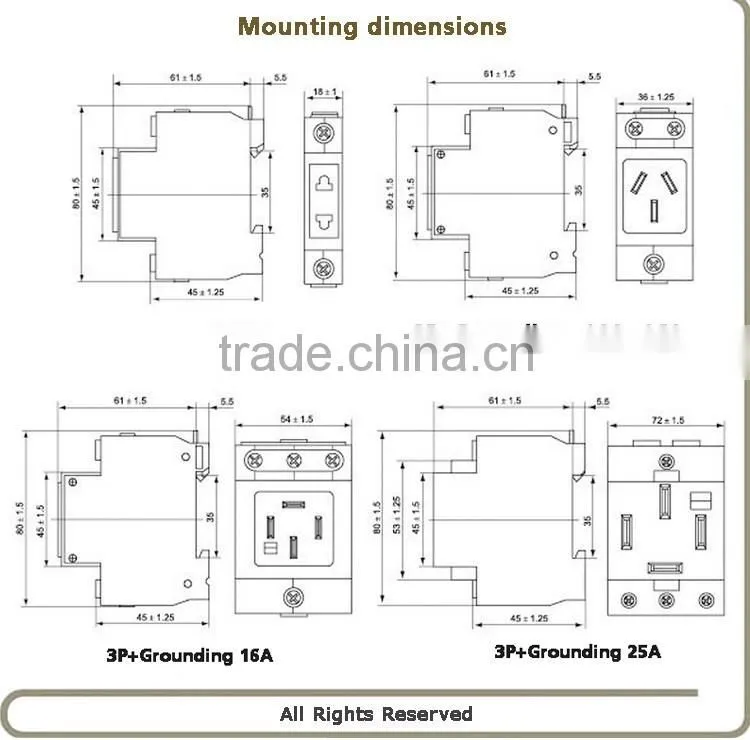

4. Installation: Modular sockets
Installation DIN width 35mm
| Frequency: 50 or 60Hz | Overvoltage category: ΙΙΙ |
| Rated insulation voltage: Ui 500V | Pullution degree: 2 |
| Rated impulse withstand voltage | Protection class: IP20 |
| Uimp: 5000V | Standard mounting: 35mm DIN Rail |
| Dielectric test voltage at ind. Freq. | Ambient temperature: -50°c to +40°c |
| For 1min: 2.8KV | Storage temperature: -25°c to +70°c |
1P female Electric Plugs And Sockets AC30
1P female Electric Plugs And Sockets AC30
