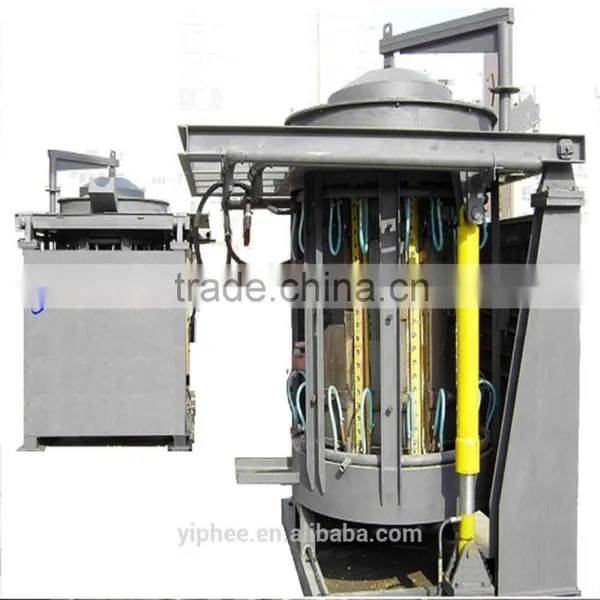

1.25T Melting Induction Furnace,Aluminum Melting Furnace,New Electric Furnace
1.25T Melting Induction Furnace,Aluminum Melting Furnace,New Electric Furnace
Product Description
- 1.Using a zero-voltage scanning soft-start mode, in any case may at any time to start or stop, will not have impact on power supply.
- 2.Rapid melting, the production cost is low; Pollution is small, comply with environmental requirements;
- 3.A direct effect from the cold furnace melting. Dissolved material will be fully dumped clean. Molten material easy to replace.
- 4.Power adjustment flexibility. Be able to continuously smooth adjustment. Temperature uniformity can be easily controlled. Oxidation burning less. Metal components evenly.

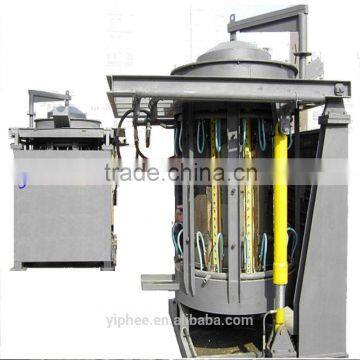

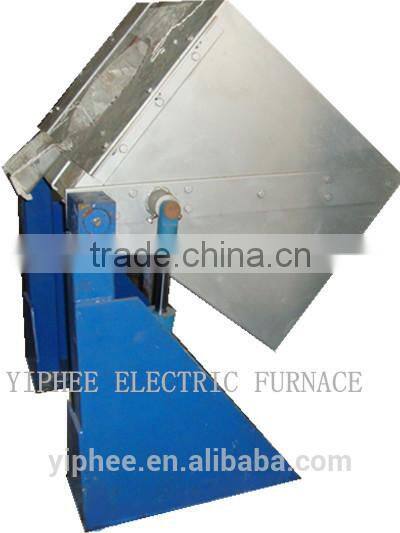

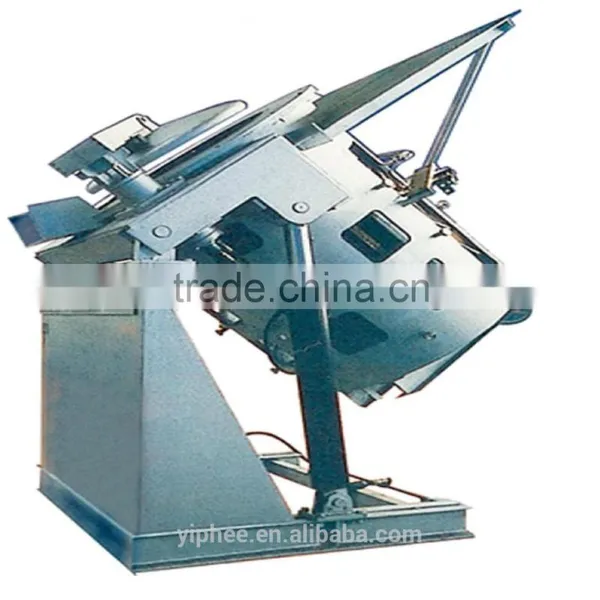

- 5.Furnace shell using cast aluminum or steel structure, small footprint; Furnace flip dump convenience, according to the need to use electric, manual, hydraulic tilting furnace and other means.
- 6.Designed to automatically adjust angle of inverter circuit that can automatically adjust the load impedance match, without adjustment of capacitance compensation and always run the equipment in good working condition; Power supply system diagnostic error function, easy maintenance.
- 7. We will customize the furnace according to your request.
The main products are
- 1. aluminum bar heating furnace;heating furnace of copper rods;stainless steel and other metal bar heating.
- 2. Intermediate frequency melting electric furnace; induction furnace, medium frequency induction furnace;copper melting furnace;cast iron melting furnace;intermediate frequency melting furnace of aluminum; medium frequency induction melting nickel;experimental electric furnace;noble metal smelting furnace;small smelting furnace;heat treatment equipment;intermediate frequency induction pipe bending equipment;medium frequency induction diathermy apparatus.
- 3.We will customize the furnace according to your request.
Capacity kg | Powerkw | input voltage v | Frequency of Input Current hz | Rated input Current A | Transformer Capacity KVA | output voltage V | output frequency KHZ | melting time MIN | Energy Consumption Kw.h/T
| Water Cooling T/h | Input Water Pressure MPa
| Volume M3
| Weight kg |
10~50kg | 50 | 380 | 50/60 | 80 | 60 | 750 | 2.5 | 20-60 | 900 | 3 | 0.2 | 1.2 | 350 |
100kg | 100 | 380 | 50/60 | 160 | 120 | 750 | 1000 | 20-60 | 850 | 5 | 0.2 | 6 | 1500 |
150kg | 100 | 380 | 50/60 | 160 | 120 | 750 | 1000 | 30-70 | 850 | 5 | 0.2 | 6.5 | 1600 |
200kg | 120 | 380 | 50/60 | 192 | 150 | 750 | 1000 | 30-70 | 800 | 7 | 0.2 | 7.5 | 1700 |
250kg | 130 | 380 | 50/60 | 208 | 150 | 750 | 1000 | 30-70 | 800 | 7 | 0.2 | 8.5 | 1800 |
350kg | 180 | 380 | 50/60 | 288 | 200 | 750 | 1000 | 30-70 | 750 | 8 | 0.2 | 9 | 2000 |
500kg | 250 | 380 | 50/60 | 400 | 315 | 750 | 1000 | 30-70 | 700 | 10 | 0.2 | 9.5 | 2300 |
600kg | 350 | 380 | 50/60 | 560 | 400 | 750 | 1000 | 40-80 | 700 | 11 | 0.2 | 11 | 2500 |
750kg | 450 | 380 | 50/60 | 720 | 500 | 1500 | 1000 | 40-80 | 650 | 15 | 0.2 | 12 | 3800 |
1000kg | 600 | 380 380v-2 | 50/60 | 960 480 | 600 | 1500 | 0.8 | 50-90 | 620 | 18 | 0.2 | 13 | 4500 |
1250kg | 800 | 380 380v-2 | 50/60 | 1280 640 | 800 | 1500 | 0.8 | 50-90 | 600 | 20 | 0.2 | 14 | 5000 |
1500kg | 1000 | 380 380v-2 | 50/60 | 1600 800 | 1250 | 1500 | 0.8 | 50-90 | 600 | 25 | 0.2 | 15 | 5500 |
2000kg | 1250 | 660 380v-2 | 50/60 | 1120 1000 | 1500 | 2500 | 0.7 | 50-90 | 580 | 28 | 0.2 | 17 | 6000 |
3000kg | 1500 | 660 380v-2 | 50/60 | 1350 1200 | 1800 | 2500 | 0.7 | 60-100 | 570 | 35
| 0.2 | 20 | 7000 |
5000kg | 2500 | 1000 660v-2 | 50/60 | 2000 1120 | 3000 | 3000 | 0.5 | 60-100 | 560 | 43 | 0.2 | 23 | 8500 |
6000kg | 4000 | 1000 | 50/60 |
| 4400 | 4000 | 0.5 | 60-100 | 560 | 52 | 0.2 | 26 | 10000 |
8000kg | 5000 | 1000 | 50/60 |
| 5000 | 5000 | 0.5 | 60-100 | 560 | 62 | 0.2 | 30 | 14000 |

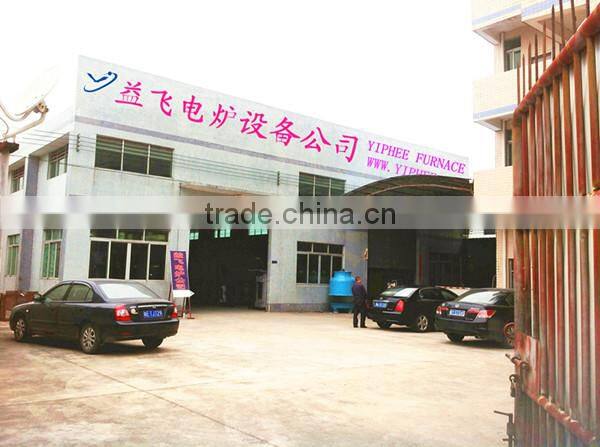

Company Information

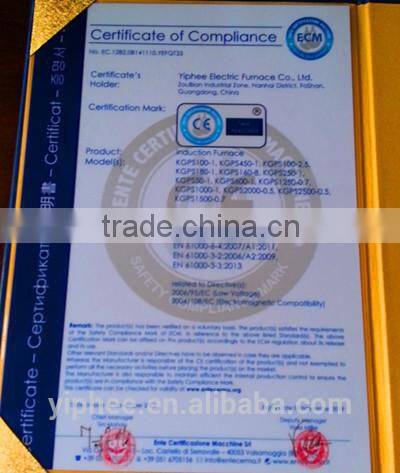

Yiphee Electric Crucible Furnace passed ISO international quality system certification and EU CE Certification,and induction melting furnace for iron have been sold to many contries,such as Europe, Belarus, Russia, Kosovo, Portugal, Africa, Libya, Zambia, Zimbabwe, South America, Ecuador, Peru, Brazil, North America, Asia, Hong Kong, Vietnam, Malaysia, Indonesia, Myanmar, Saudi Arabia, Lebanon, Bahrain, Tajikistan, Uzbekistan, North Korea, Poland, Iran,Colombia, Australia,Iran,etc.
Welcome to visit us!
