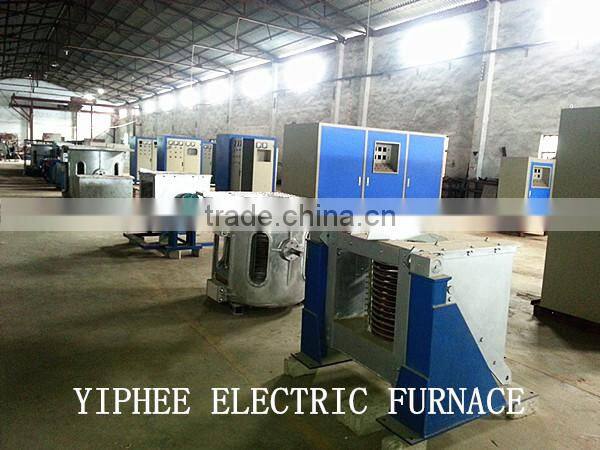

1250KG Capacity Cast Steel Industrial Electric Melting Furnace
Introduction of induction smelting furnace :
The device is a three –phase power frequency current transform intro single-phase intermediate frequency . Heating and smelting by electromagnetic induction eddy current loss .
Application of induction smelting furnace :
Intermediate frequency induction furnace is mainly used for smelting ferrous and nonferrous metal and alloys , such as steel , iron , copper ,nickel , lead , tin , zinc , gold and silver , etc. Also it is suitable for heat treatment , hardening , holding , quenching , annealing , tempering, thermal refining, etc.
Characteristics of induction smelting furnace :
1.Using a zero-voltage scanning soft-start mode, in any case may at any time to start or stop, will not have impact on power supply.
2. Fast smelting with low production cost; low-pollution and environment-friendly ;
3. A direct effect from the cold furnace melting. Dissolved material will be fully dumped clean. Molten material easy to replace.
4. Power adjustment flexibility. Be able to continuously smooth adjustment. Temperature uniformity can be easily controlled. Oxidation burning less. Metal components evenly.

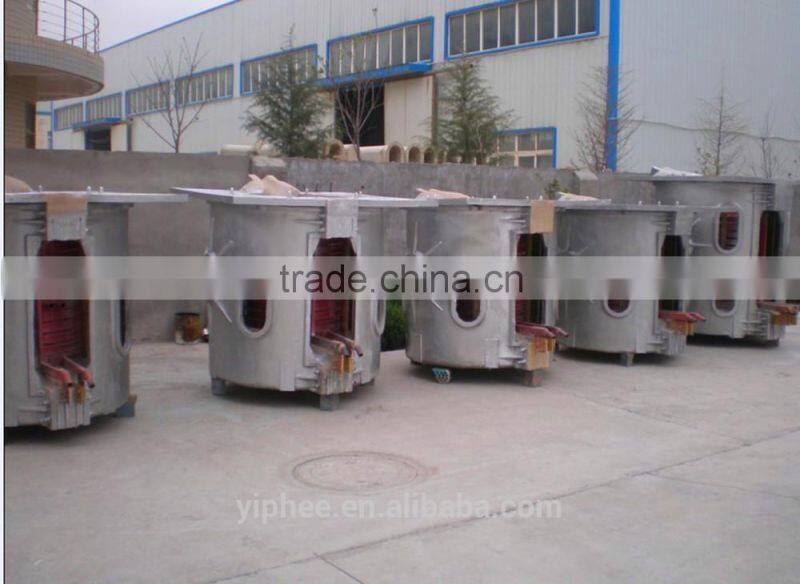

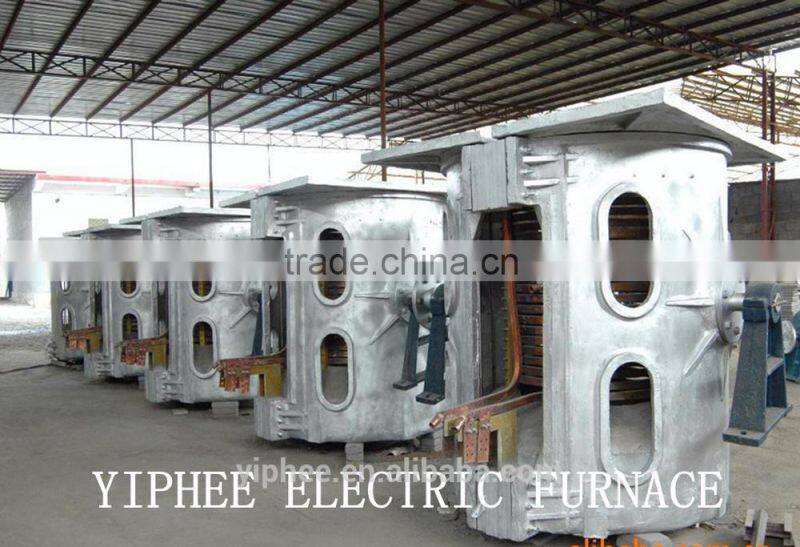

5. Furnace shell using cast aluminum or steel structure, small footprint; furnace flip dump convenience, according to the need to use electric, manual, hydraulic tilting furnace and other means.
6. Designed to automatically adjust angle of inverter circuit that can automatically adjust the load impedance match, without adjustment of capacitance compensation and always run the equipment in good working condition; power supply system diagnostic error function, easy maintenance.
Model and parameters of induction smelting furnace :
Rated capacity |
KG |
10-50 |
100 |
150 |
250 |
350 |
500 |
750 |
1000 |
1500 |
2000 |
3000 |
5000 |
Rated power |
KW |
50 |
100 |
100 |
130 |
180 |
250 |
450 |
600 |
1000 |
1250 |
1500 |
2500 |
Input voltage |
V |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380-2 |
380-2 |
380-2 |
380-2 |
660-2 |
Transformer capacity |
KVA |
60 |
120 |
120 |
150 |
200 |
315 |
500 |
800 |
1500 |
1800 |
2000 |
3500 |
Out voltage |
V |
750 |
750 |
750 |
750 |
750 |
750 |
1500 |
2500 |
2500 |
2500 |
2500 |
3500 |
Output frequency |
KHZ |
2.5 |
1 |
1 |
1 |
1 |
1 |
1 |
0.8 |
0.8 |
0.7 |
0.7 |
0.5 |
Melting time |
Min |
20-60 |
20-60 |
30-70 |
30-70 |
30-70 |
30-70 |
40-80 |
50-90 |
50-90 |
50-90 |
60-100 |
60-100 |
Power consumption(steel) |
Kw.h/T |
900 |
850 |
850 |
800 |
750 |
700 |
650 |
620 |
600 |
580 |
570 |
560 |
Power consumption(cast iron) |
Kw.h/T |
850 |
800 |
800 |
750 |
700 |
650 |
630 |
610 |
580 |
570 |
560 |
550 |
Power consumption(copper) |
Kw.h/T |
500 |
500 |
500 |
490 |
480 |
480 |
400 |
390 |
380 |
360 |
330 |
310 |
Power consumption(aluminum) |
Kw.h/T |
780 |
750 |
750 |
710 |
670 |
620 |
600 |
570 |
540 |
520 |
500 |
500 |
Water cooling |
T/h |
3 |
5 |
5 |
7 |
8 |
10 |
15 |
18 |
25 |
28 |
35 |
43 |
.
