2000-5000KG manufactory electric melting furnace for any metals
Introduction of induction smelting furnace :
The device is a three –phase power frequency current transform intro single-phase intermediate frequency . Heating and smelting by electromagnetic induction eddy current loss .
Application of induction smelting furnace :
Intermediate frequency induction furnace is mainly used for smelting ferrous and nonferrous metal and alloys , such as steel , iron , copper ,nickel , lead , tin , zinc , gold and silver , etc. Also it is suitable for heat treatment , hardening , holding , quenching , annealing , tempering, thermal refining, etc.
Characteristics of induction smelting furnace :
1.Using a zero-voltage scanning soft-start mode, in any case may at any time to start or stop, will not have impact on power supply.
2. Fast smelting with low production cost; low-pollution and environment-friendly ;
3. A direct effect from the cold furnace melting. Dissolved material will be fully dumped clean. Molten material easy to replace.
4. Power adjustment flexibility. Be able to continuously smooth adjustment. Temperature uniformity can be easily controlled. Oxidation burning less. Metal components evenly.
5. Furnace shell using cast aluminum or steel structure, small footprint; furnace flip dump convenience, according to the need to use electric, manual, hydraulic tilting furnace and other means.
6. Designed to automatically adjust angle of inverter circuit that can automatically adjust the load impedance match, without adjustment of capacitance compensation and always run the equipment in good working condition; power supply system diagnostic error function, easy maintenance.
Components of induction smelting furnace:

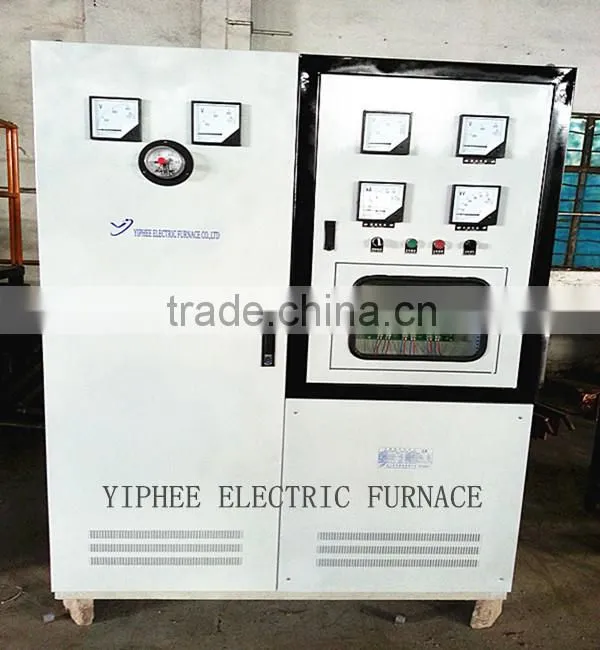

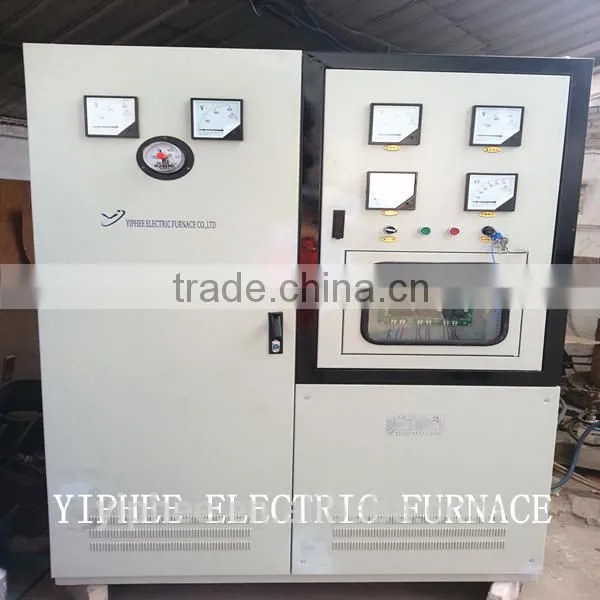

By manual or electric tilting system : Consist of main control cabinet , capacitor cabinet , aluminum shell furnace body , speed reducer , bracket , water cooling cables, titling control box, crucible (crucible mould) and so on .
By hydraulic tilting system : consists of main control cabinet , capacitor cabinet , steel shell furnace body , hydraulic pressure station , water cooling cables , crucible (crucible mould ) and so on .
Model and parameters of induction smelting furnace :
|
Capacity kg |
Powerkw |
input voltage v |
Frequency of Input Current hz |
Rated input Current A |
Transformer Capacity KVA |
output voltage V |
output frequency KHZ |
melting time MIN |
Energy Consumption Kw.h/T
|
Water Cooling T/h |
Input Water Pressure MPa
|
Volume M3
|
Weight kg |
10~50kg |
50 |
380 |
50/60 |
80 |
60 |
750 |
2.5 |
20-60 |
900 |
3 |
0.2 |
1.2 |
350 |
100kg |
100 |
380 |
50/60 |
160 |
120 |
750 |
1000 |
20-60 |
850 |
5 |
0.2 |
6 |
1500 |
150kg |
100 |
380 |
50/60 |
160 |
120 |
750 |
1000 |
30-70 |
850 |
5 |
0.2 |
6.5 |
1600 |
200kg |
120 |
380 |
50/60 |
192 |
150 |
750 |
1000 |
30-70 |
800 |
7 |
0.2 |
7.5 |
1700 |
250kg |
130 |
380 |
50/60 |
208 |
150 |
750 |
1000 |
30-70 |
800 |
7 |
0.2 |
8.5 |
1800 |
350kg |
180 |
380 |
50/60 |
288 |
200 |
750 |
1000 |
30-70 |
750 |
8 |
0.2 |
9 |
2000 |
500kg |
250 |
380 |
50/60 |
400 |
315 |
750 |
1000 |
30-70 |
700 |
10 |
0.2 |
9.5 |
2300 |
600kg |
350 |
380 |
50/60 |
560 |
400 |
750 |
1000 |
40-80 |
700 |
11 |
0.2 |
11 |
2500 |
750kg |
450 |
380 |
50/60 |
720 |
500 |
1500 |
1000 |
40-80 |
650 |
15 |
0.2 |
12 |
3800 |
1000kg |
600 |
380 380v-2 |
50/60 |
960 480 |
600 |
1500 |
0.8 |
50-90 |
620 |
18 |
0.2 |
13 |
4500 |
1250kg |
800 |
380 380v-2 |
50/60 |
1280 640 |
800 |
1500 |
0.8 |
50-90 |
600 |
20 |
0.2 |
14 |
5000 |
1500kg |
1000 |
380 380v-2 |
50/60 |
1600 800 |
1250 |
1500 |
0.8 |
50-90 |
600 |
25 |
0.2 |
15 |
5500 |
2000kg |
1250 |
660 380v-2 |
50/60 |
1120 1000 |
1500 |
2500 |
0.7 |
50-90 |
580 |
28 |
0.2 |
17 |
6000 |
3000kg |
1500 |
660 380v-2 |
50/60 |
1350 1200 |
1800 |
2500 |
0.7 |
60-100 |
570 |
35
|
0.2 |
20 |
7000 |
5000kg |
2500 |
1000 660v-2 |
50/60 |
2000 1120 |
3000 |
3000 |
0.5 |
60-100 |
560 |
43 |
0.2 |
23 |
8500 |
6000kg |
4000 |
1000 |
50/60 |
|
4400 |
4000 |
0.5 |
60-100 |
560 |
52 |
0.2 |
26 |
10000 |
8000kg |
5000 |
1000 |
50/60 |
|
5000 |
5000 |
0.5 |
60-100 |
560 |
62 |
0.2 |
30 |
14000 |
Our company
Yiphee Electric Crucible Furnace passed ISO international quality system certification and EU CE Certification,and induction melting furnace for iron have been sold to many contries,such as Europe, Belarus, Russia, Kosovo, Portugal, Africa, Libya, Zambia, Zimbabwe, South America, Ecuador, Peru, Brazil, North America, Asia, Hong Kong, Vietnam, Malaysia, Indonesia, Myanmar, Saudi Arabia, Lebanon, Bahrain, Tajikistan, Uzbekistan, North Korea, Poland, Iran,Colombia, Australia,Iran,etc.
Welcome to visit us!
