Automatic Disposable Gloves Packing Machine

Name: Automatic Disposable Gloves Packing Machine
Brand: Chlbao disposable glove packing machine
SKU: 110785845

US$ 5,000 - 6,500 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Food, Beverage, Commodity, Medical, Other, Textiles, Food, Beverage, Commodity, Medical, Machinery & Hardware, Textiles

Packaging Type:

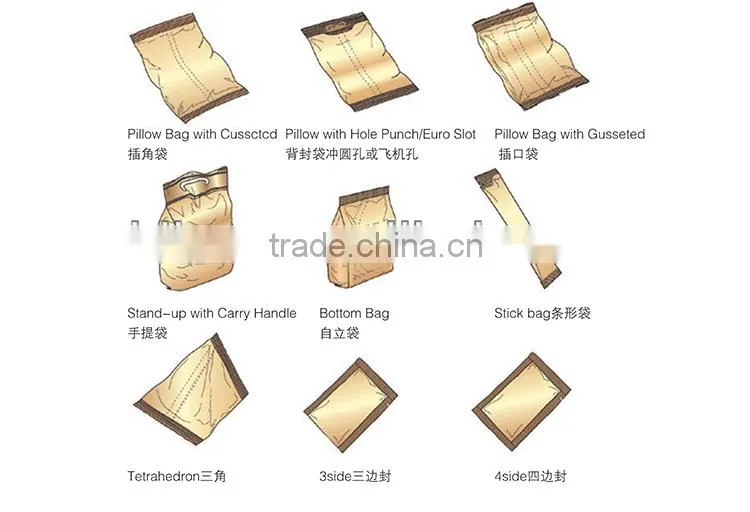

Bottles, Stand-up Pouch, Bags, Film, Pouch

Foshan Chuanglibao Packaging Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou /Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Food, Beverage, Commodity, Medical, Other, Textiles, Food, Beverage, Commodity, Medical, Machinery & Hardware, Textiles

Packaging Type Bottles, Stand-up Pouch, Bags, Film, Pouch

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Electric

Voltage 220V 380V

Power 3KW

Place of Origin Guangdong, China

Brand Name Chlbao disposable glove packing machine

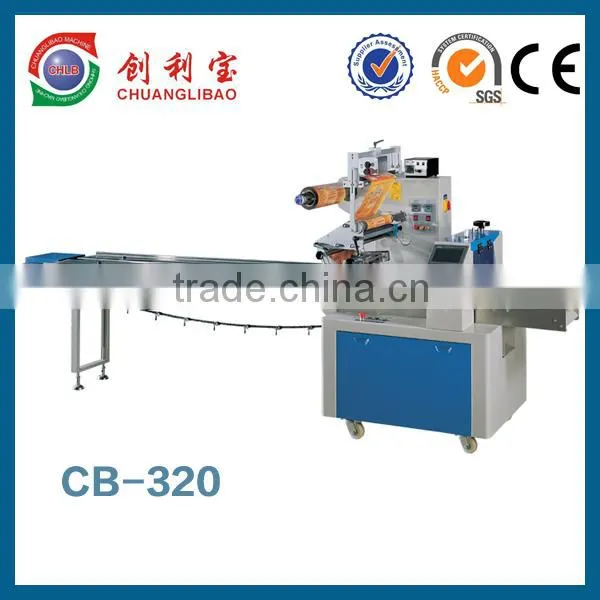

Model Number CB-320

Weight 600kg

Dimension(L*W*H) 3900*940*1500mm

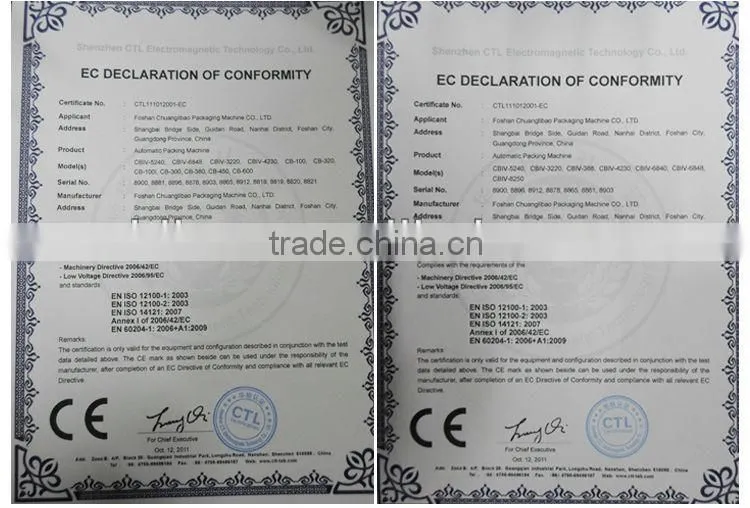

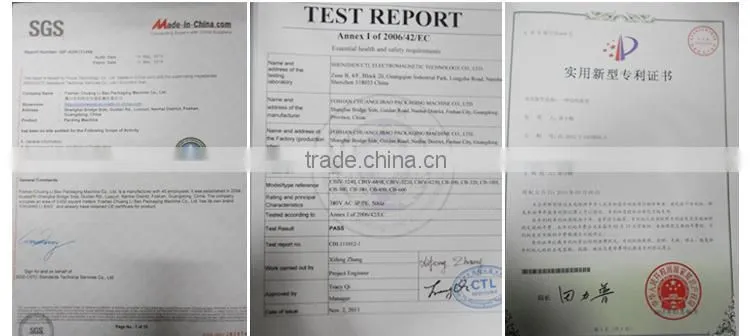

Certification CE,SGS,BV

After-sales Service Provided Engineers available to service machinery overseas

Specifications

disposable glove packing machine
1Imported Panasonic PLC control
2high speed:max 200bags / min
3CE;high quality and good pric

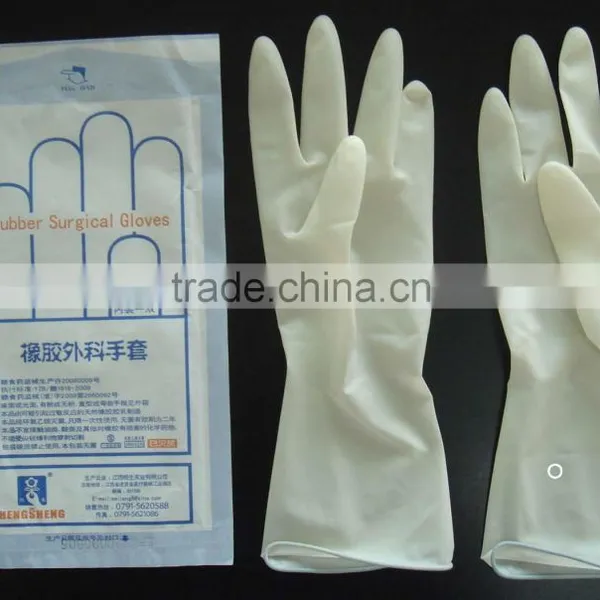

automatic disposable gloves packing machine

Scope of application

Suitable for regular products like moon cake, biscuit, bread, candy, medicine, daily article, hardware, carton, tray etc

Functional Description

The key parts of the machine are adopted of stainless structure, in accordance with food QS and medicine GMP health requirements.
Controlled by dual frequency conversion, the cutting of bag length is following the length setting, saving time and film.
High sensitive electronic eye tracing system, after setting, the machine is no need to be adjusted by hand, the cutting position is accuracy, and the seal is firm and beautiful.
Temperature is controlled by PID intelligence independently and steadily which is suitable for various materials.
Machine can be turned off by position; fault is self-diagnosed and displayed clearly.
Counting automatically, the packaging production’s counting is accuracy.
Machine design and convey system is simple. The machine is convenient to maintain.
The machine can be equipped with gas charging device and production date code system according to client’s packaging requirements.

Technical Specifications

Single knife	Bag size: L (160-400)× W (50-150) × H (3-55) mm
Single knife	Speed: 100 bags/min
Double knife	Bag size: L (80-200) × W (50-150)× H (3-55) mm
Double knife	Speed: 200 bags/min
Thickness of film	40-70 um
Width of film	≤320 mm
Dimension of film roll	outer diameter ≤300 mm inner diameter ≤75mm
Power requirement	220V, 50HZ, 3KW
Machine size	L 3900* W 940* H 1500
Machine Weight	600KG

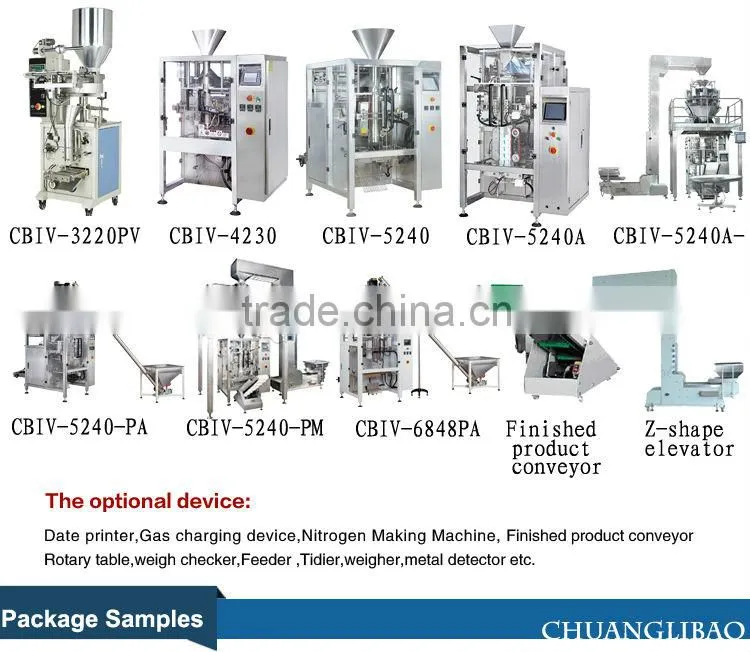

Optional device	printer, gas charging device, feeder, tidier
