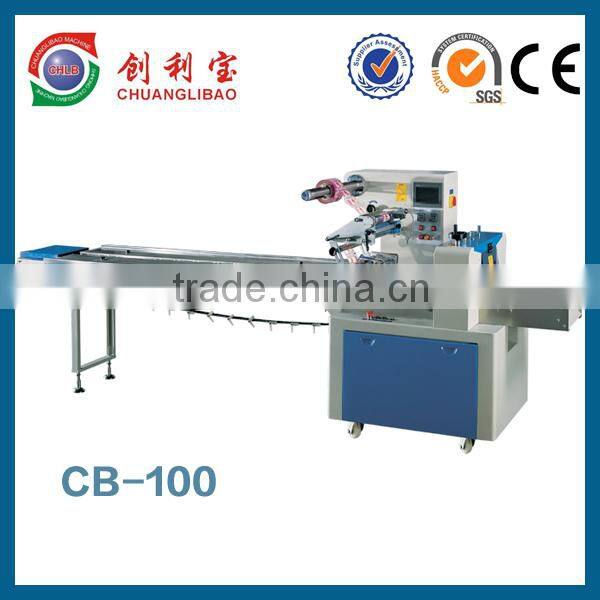

Chinese Wet Tissue Pillow Pack Packing Machine

Name: Chinese Wet Tissue Pillow Pack Packing Machine
Brand: Chlbao wet tissue packing machine
SKU: 110785873
Availability: InStock

Foshan Chuanglibao Packaging Machine Co., Ltd.

US$ 4,600 - 5,950 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Food, Beverage, Commodity, Medical, Other, Textiles, Food, Beverage, Commodity, Medical, Machinery & Hardware, Textiles

Packaging Type:

Bottles, Stand-up Pouch, Bags, Film, Pouch

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou /Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Food, Beverage, Commodity, Medical, Other, Textiles, Food, Beverage, Commodity, Medical, Machinery & Hardware, Textiles

Packaging Type Bottles, Stand-up Pouch, Bags, Film, Pouch

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Electric

Voltage 220V 380V

Power 2.75KW

Place of Origin Guangdong, China

Brand Name Chlbao wet tissue packing machine

Model Number CB-100

Weight 550kg

Dimension(L*W*H) 3900*850*1500MM

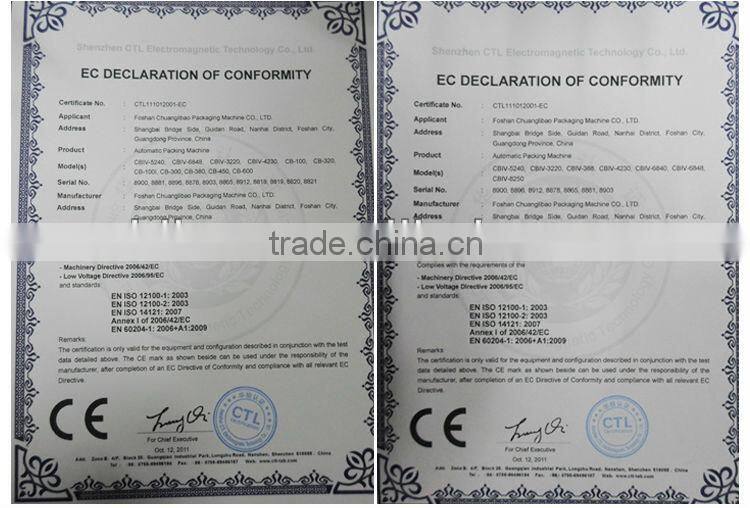

Certification CE,SGS,BV

After-sales Service Provided Engineers available to service machinery overseas

Specifications

wet tissue packing machine
1Imported Panasonic PLC control .
2high speed:max 200bags / min
3CE;high quality with good price..

chinese wet tissue pillow pack packing machine

Scope of application

Suitable for regular products like moon cake, biscuit, bread, candy, medicine, daily article, hardware, carton, tray etc

Functional Description

The key parts of the machine are adopted of stainless structure, in accordance with food QS and medicine GMP health requirements.
Controlled by dual frequency conversion, the cutting of bag length is following the length setting, saving time and film.
High sensitive electronic eye tracing system, after setting, the machine is no need to be adjusted by hand, the cutting position is accuracy, and the seal is firm and beautiful.
Temperature is controlled by PID intelligence independently and steadily which is suitable for various materials.
Machine can be turned off by position; fault is self-diagnosed and displayed clearly.
Counting automatically, the packaging production’s counting is accuracy.
Machine design and convey system is simple. The machine is convenient to maintain.
The machine can be equipped with gas charging device and production date code system according to client’s packaging requirements.

Technical Specifications

Model	CB-100
Single knife	Bag size: L (120-290) ×W (30-100) × H (3-35) mm
Single knife	Speed: 100 bags/min
Double knife	Bag size: L (60-145) × W (30-100)× H (3-35) mm
Double knife	Speed: 200 bags/min
Thickness of film	30-70 um
Width of film	≤220 mm
Dimension of film roll	outer diameter ≤300 mm inner diameter ≤75mm
Power requirement	220V, 50HZ, 2.75KW
Machine size	L 3900* W 850* H 1500
Machine Weight	550KG

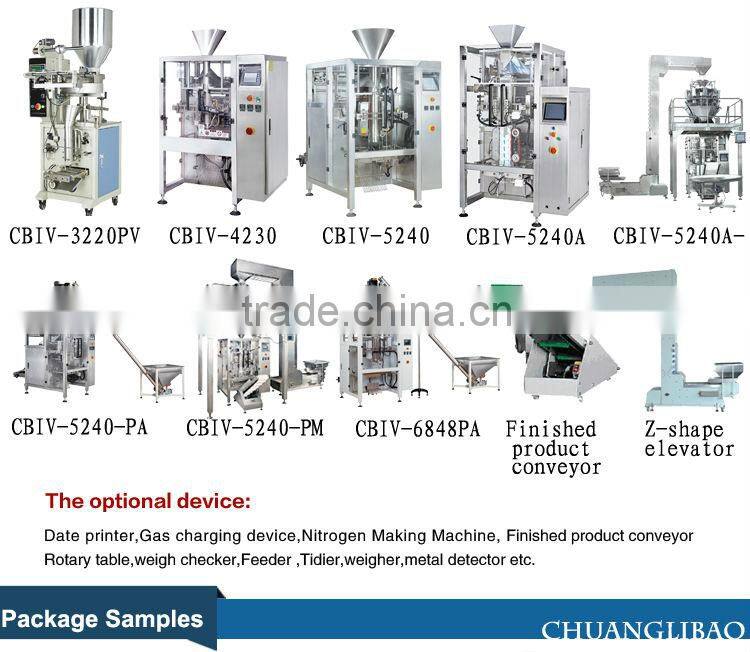

Optional device	printer, gas charging device, feeder, tidier
