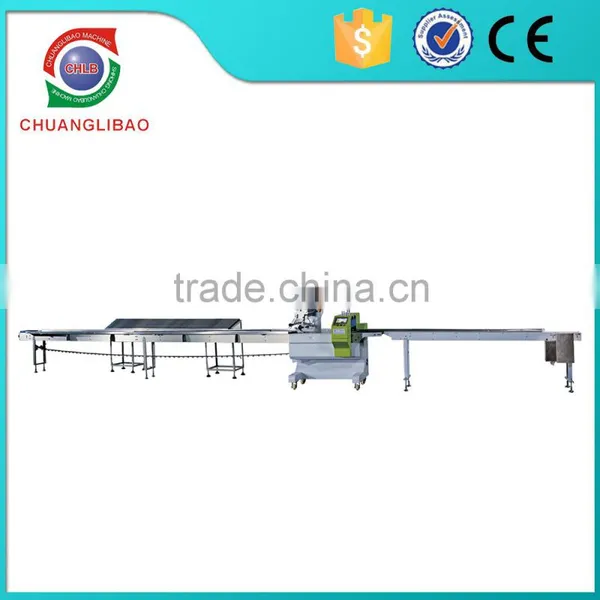

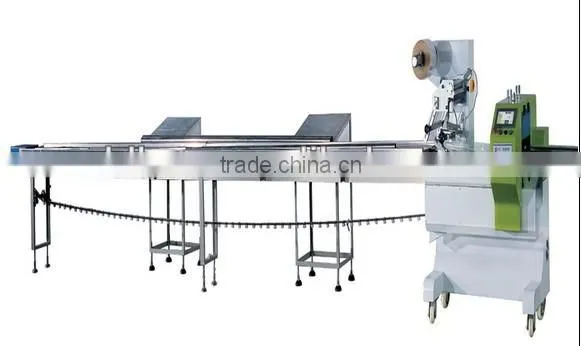

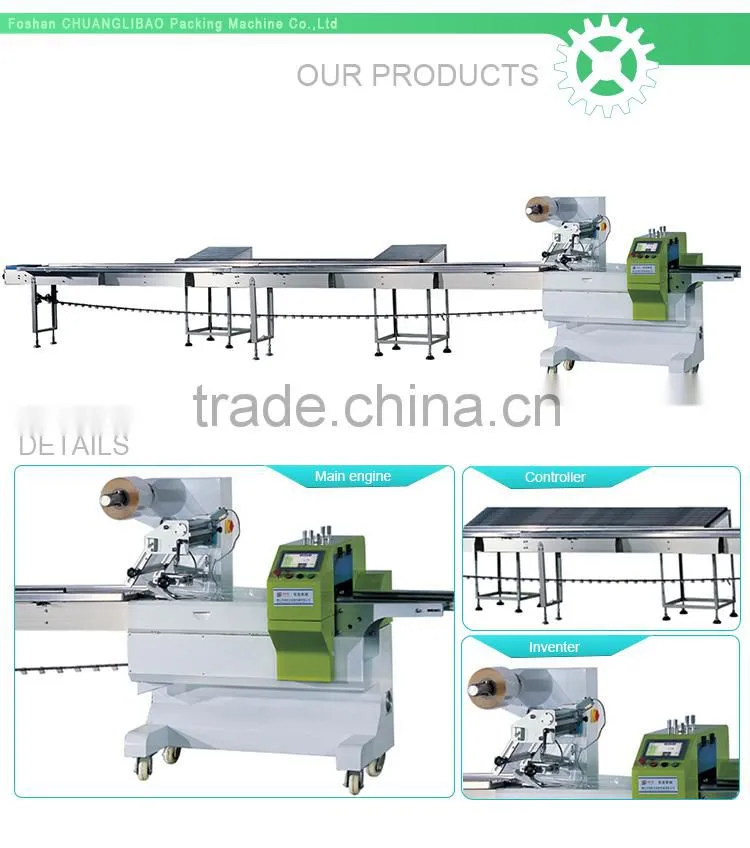

Chlb Automatic Stainless Steel Tube Pipe Wrapping Machine

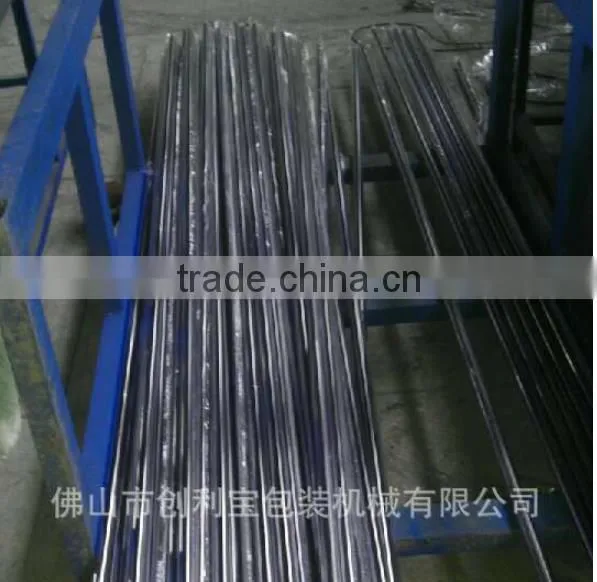

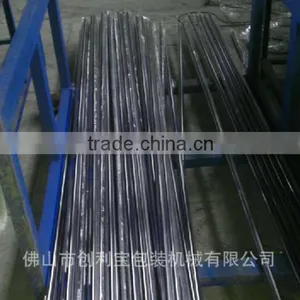

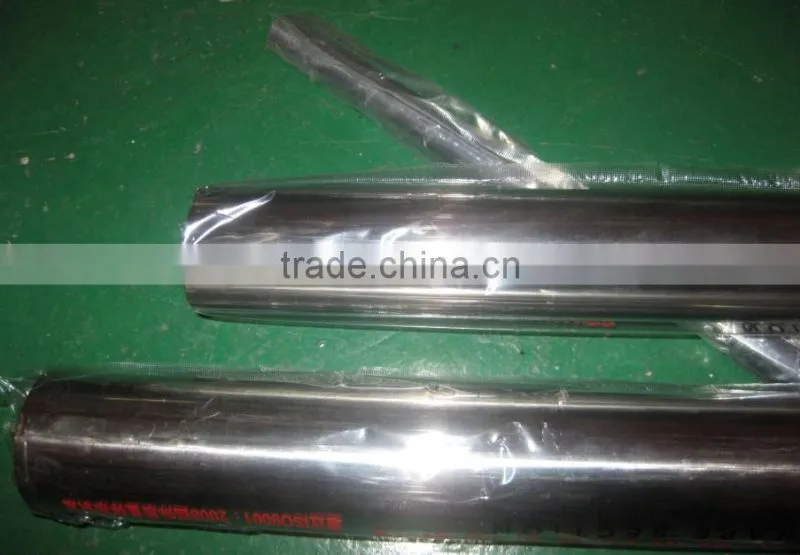

Suitable for packing various kinds of pipe products.

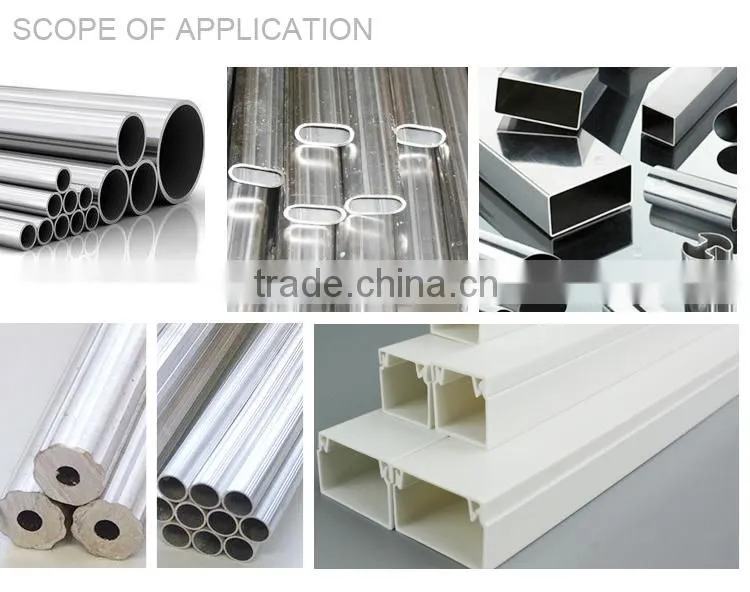

Functional Specification & Scope of application

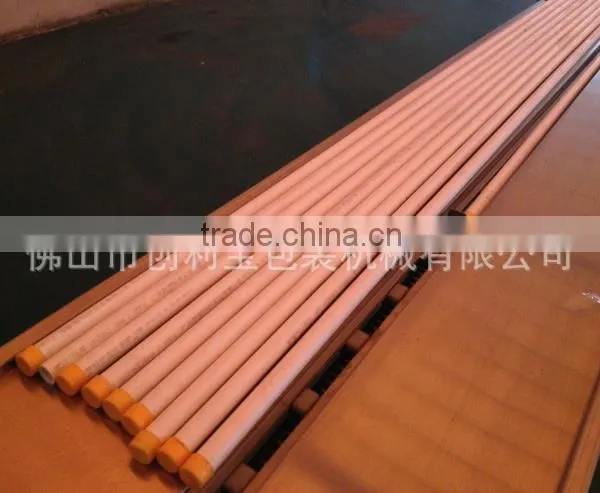

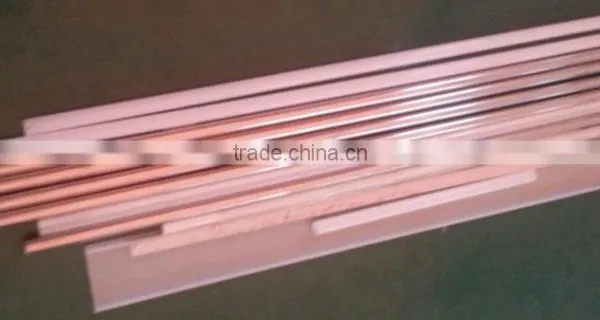

Aluminum alloy, stainless steel, plastic pipe, galvanized wire tube, wire slot, hardware etc.
- Mature Servo control technology, overload protection, leakage protection, fault alarm and other safety devices, to protect the safety and service life of packing machine.
- Using the transmission structure of three axis force, simplifies the structure of the mechanical transmission, reduce noise. Easy maintenance, less friction and long lifetime.
- Parameters can be stored in 10 groups, no need to readjust thus reduce the materials loss.
- The three axle independent control can be applied to products’ packing with different length and the max length can reach 6 meters. Fully automate the packing process, avoiding manual intervention. Reducing the cost of production greatly and enhancing productivity precisely.
- Intelligent control module makes temperature control more stable.
-
Servo motion controllers track synchronously thus no need to adjust the cutter speed.
| Bag size | Bag size: L (50-6000) × W (30-140)× H (3-60) mm |
| Speed: 20-200 bags/min | |
| Thickness of film | 25-70 um |
| Width of film | ≤320 mm |
| Dimension of film roll | outer diameter ≤300 mm |
| inner diameter ≤75mm | |
| Power requirement | 16.50V, 50HZ, 3KW |
| Machine size | L 3900* W 1100* H 1500 |
| Machine Weight | 700KG |
| Optional device | printer, gas charging device, feeder, tidier |
Origin of each components
Touch screen: Siemens / Germany Inverter: Schneider / French
PLC controller: Siemens / Germany Module: Siemens / Germany
Date printer: Dikai / Shanghai Motor: Tongtai / Kunlun
Photo-sensor: SICK / Germany Relay: Omron / Japan
Switch series: Schneider / French Solid phase: Schneider / French
- Provide 1 year complete warrantee and free replacement parts;
- Lifetime maintenance services;
- Free project planning and design services;
- Free training equipment operators and maintenance personnel;
- Free debugging of equipment until everything is functional;
- Free management of equipments' long distance shipping;
- Free training of equipment maintenance and operating personally;
- Free new production techniques and formulas.
CHUANGLIBAO has been an professional manufacturer of packing machine since 1998. We have strong research and development team, research and innovate is our aim and market is our guiding. We can research 2-3 new machines each year, and we spent more than USD $50000 for exhibition each year, we have been to Turkey, Indonesia, Malaysia, Dubai and so on, so we think we should have enough experience to help u more.
We are the second biggest packing machine supplier in China, our production is 50 sets per month, we can delivery you machine within 25 days as soon as we got your deposit. And we can send our engineer and master to your factory for machine service if you need, so we can help you in time.
Q: Why do you choose our packing machine?
A: Our machine with high quality and good service, We can solve your packing issue as soon as quickly if you have any questions, we also can send our engineer to you there if u need.
Q: What is the delivery time and how many days will come to destination port?
A: 20 working days after receiving deposit, the delivery time to destination port depends on your destination port.
Q: What’s advantage of your company and your packing machine?
A :Well trained and Experienced after-sales team and agents all over the world, guarantee the good maintenance and service during the use of machines.
