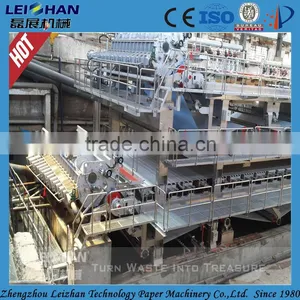

Automatic rewinder/ kitchen towel paper making machine
1. Various raw materials and output
2. High capacity
3. Low investment
4. Excellent salesafter service
Raw materials: Straw pulp and Deinking pulp, Straw, Bagasse, bamboo, wood, Deink, pulp
Paper grade: Toile Facial and Napkin basis paper
Paper width(on reel):1750-3400mm
Basis weight:12-30g/m2
Design speed:200m/min
Working Speed:150-180m/min
Creping Ratio: 15-30%
Productivity:5-11t/d
Specificaion: 1092,1575,1760,1880,2100,2362,2640,2800,3200
Main Technical Charateristic
Pressure net vat,stainless steel cylinder mould forming system
Square wimble pipe for pulp entering system
High line pressure touch roll by air controlling dewater system;
Compound breathing hot wind system

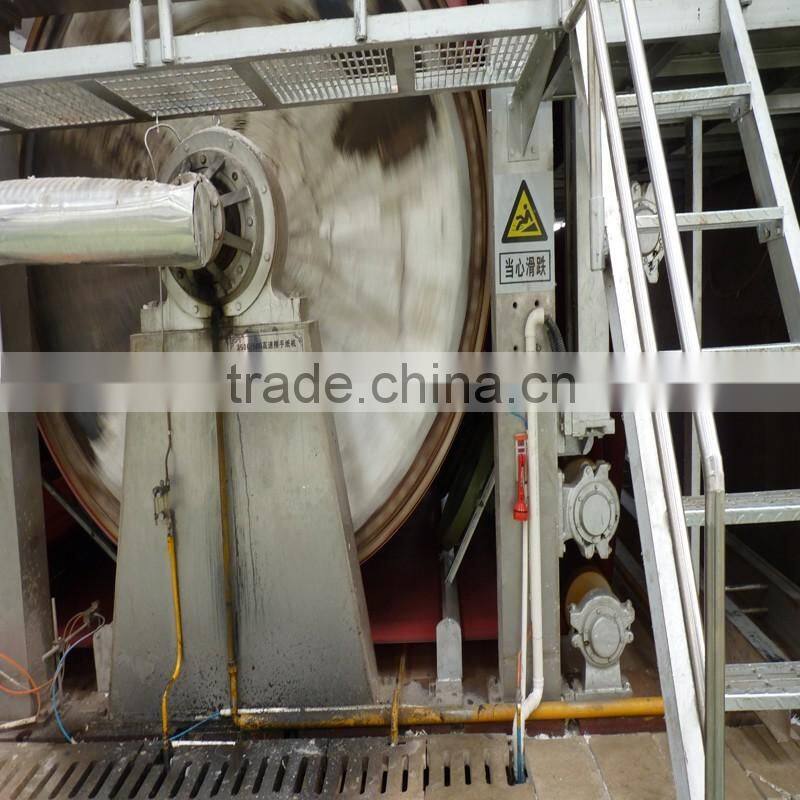

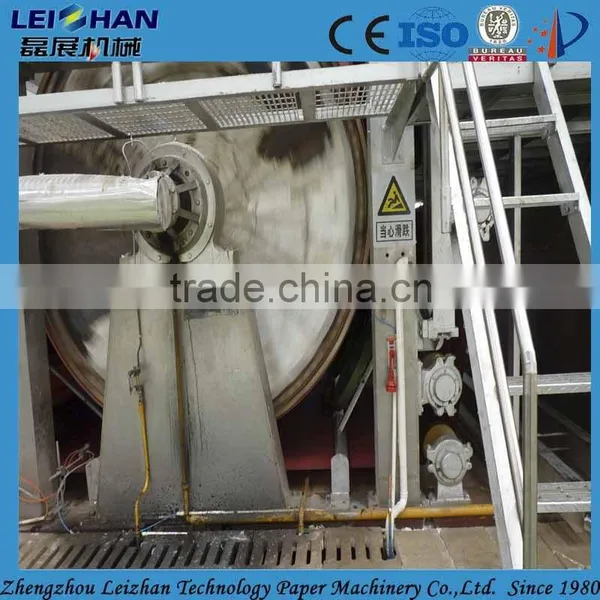

Yankee size:250mm
Compound air controlling creasing doctor syserm
Felt pneumatic automatic correction and electric stretch system
Main Spare Parts of Waste Paper Recycling Machinery
- Fourdrinier Wire&Mould Machine
- Shoe Press
- Dryer Cylinder
- Vacuum Pump&Vacuum System
- Sizing Machine
- Coating Machine
- Roll Press
- QCS
- Paper Winder
- Finished Product Package Delivery System
- Paper Cutter
- Lubricating System & Hydraulic System & Air Compressor System
- Steam and Condensate System
- Cooling Tower
Technical Parameter of Waste Paper Recycling Machinery
Item Type |
1092 |
1575 |
1760 |
1880 |
2400 |
2700 |
2900 |
3000 |
3200 |
Designing speed(m/min) |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
Working speed(m/min) |
130-200 |
130-200 |
130-200 |
130-200 |
130-200 |
130-200 |
130-200 |
130-200 |
130-200 |
Grammage(g/m2) |
13-30 |
13-30 |
13-30 |
13-30 |
13-30 |
13-30 |
13-30 |
13-30 |
13-30 |
Production capacity(t/d) |
2-3 |
3-5 |
4-6 |
5-7 |
6-8 |
7-10 |
8-10 |
8-11 |
8-11.5 |
Dryer diameter (mm) |
Φ2500× 1450 |
Φ2500× 2000 |
Φ2500× 2200 |
Φ2500× 2400 |
Φ2500× 2800 |
Φ2500× 3100 |
Φ2500× 3300 |
Φ2500× 3400 |
Φ2500× 3600 |
Power of main motor(KW) |
30 |
37 |
37 |
45 |
55 |
55 |
55 |
75 |
75 |
Track gauge(mm) |
1900 |
2400 |
2600 |
2800 |
3400 |
3700 |
3800 |
4000 |
4100 |

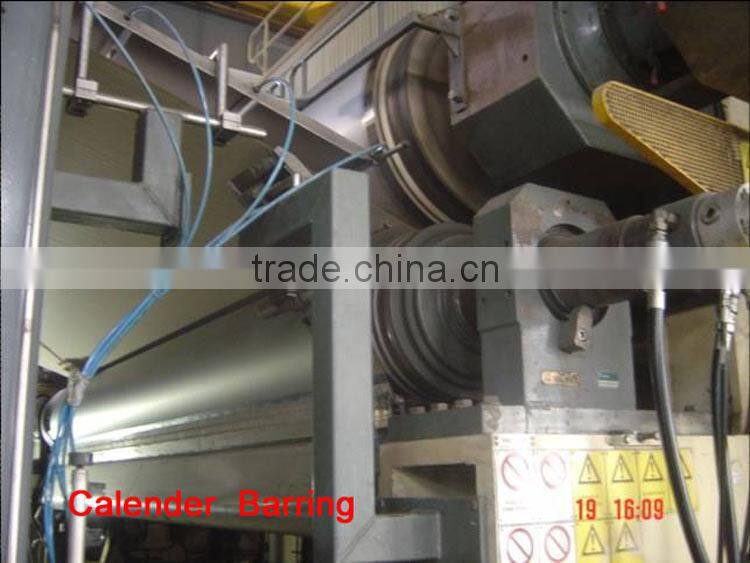

Calender barring: By heating roller under certain pressure to squeeze pages, making the sheet thickness uniform, so that to improve sheet smoothness glossiness.

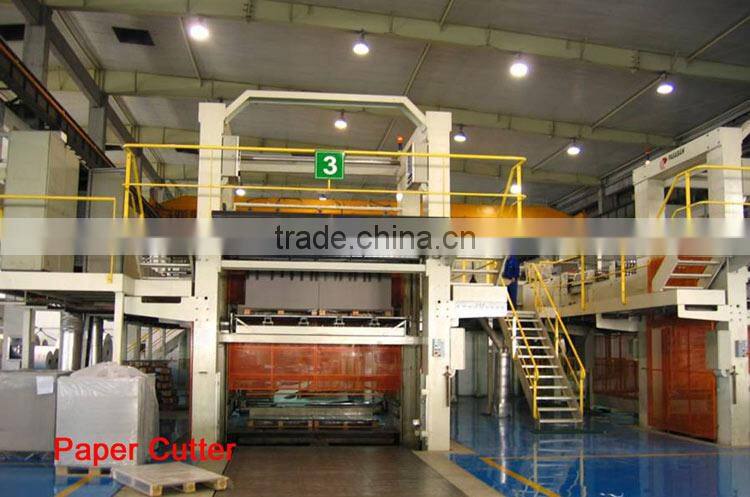

Paper Cutter:Cut the paper into different specifications sheet.
Paper pulper machine Leizhan Paper pulp machine/ carton paper machine/ fluting paper machine /corrugated paper making machine/ Paper Product Making Machinery list
1.Chain conveyor
2.Hydrapulper, Type D hydrapuler, Drum type hydrapulper
3.High density,mid density, low density cleaner
4.Vibrating screen, mid consistency pressure screen,inflow pressure screen,upflow pressure screen, fiber fractionating screen,light rejects screen,double drum pressure screen, coarse screen , fine pulp screen etc.
5.PZ series reject separator, Single-effect separating machine,, single fiber separating machine etc.
6.Double disc refiner, high taper fine grinding machine, double disc pulp-grinding machine, conical refiner etc.
7.High taper helical stirrer, square pulp pool stirrer
8.Stock pump, grapple, cutter, unpacker. disc thickener, sludge dewatering machine etc.
9.Paper machine
Leizhan Exhibition:
Leizhan participated in lots of exhibitons every year which are VIETNAM PAPER 2013, 2013 China International Paper Technology Exhibiton and Conference, Guangzhou Paper Exhibition, Shandong Paper Exhibition 2013 and Chengdu Paper Exhibition, etc. Next year welcome to visit Leizhan's exhibition.
Made in china high quality pulp slurry pump factory
What we can provide
Waste paper pulp machine production line
Automatic corrugated box production line
Corrugated paper making production line
Fluting paper pulp making production line
Coated White Board Paper production line
Honeycomb Paper making production line
testliner paper making production line
Paper plate making production line
tissue paper making production line
toilet paper making machine line
kraft paper making machine line
boxboard paper machine line
Paper coating machine line
Napkin paper machine line
OCC line
Services:
1.Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
2.After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;
More details please inquiry us. Waiting for your questions.
