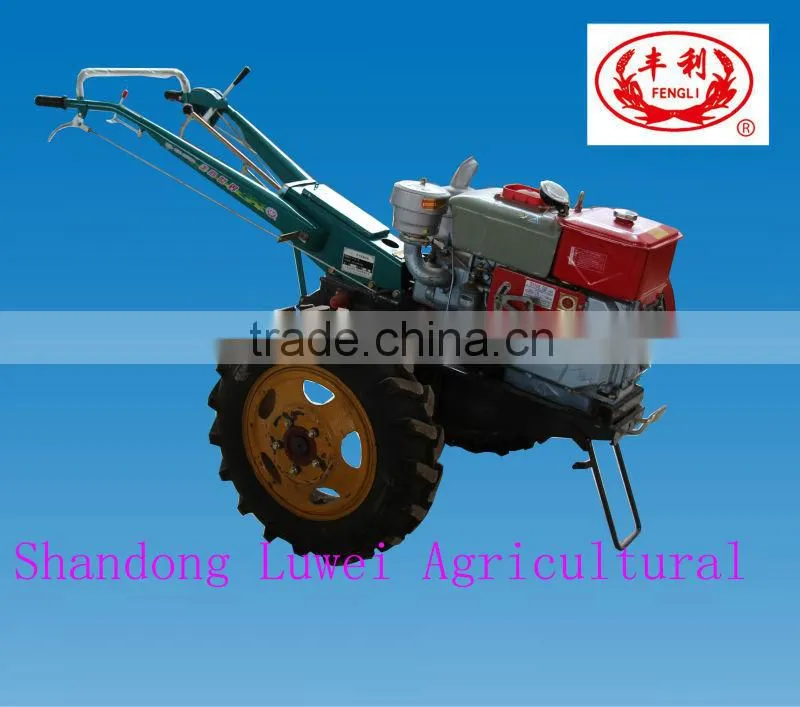

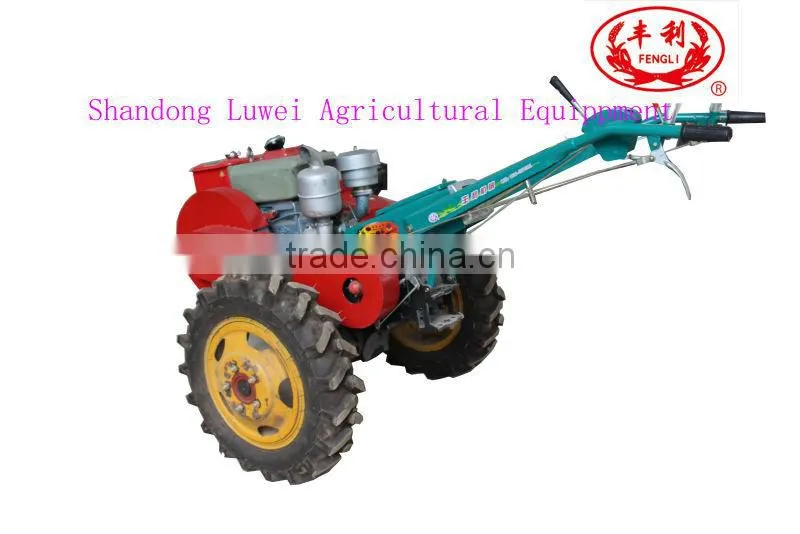

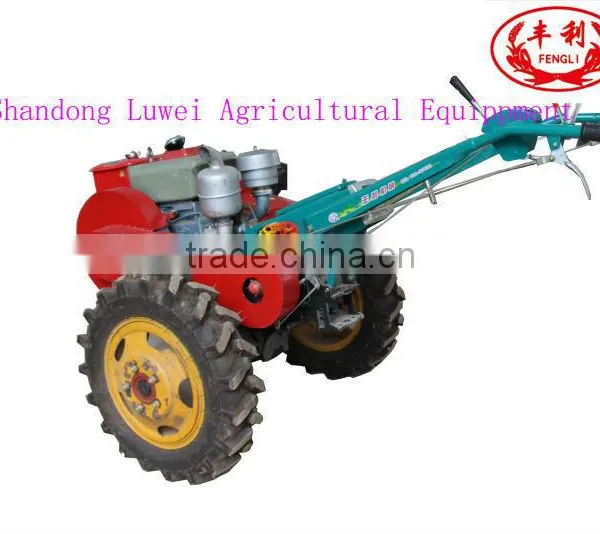

15hp Chinese Walking Tractor

15hp Chinese Walking Tractor thumbnail-1
15hp Chinese Walking Tractor photo-1
US$ 400 - 1,800 MOQ: 20 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Shandong Luwei Agriculture Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 11030
Certificate Other, ISO9001
Brand Name FENGLI
Model Number 151
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

Specifications

15hp walking tractor
pull and drive.
the diesel: S1100,but optional
compact construction
cultivate and transport.

This is 15HP walking tractor.

We are Shandong Agricultural Equipment,Co.,Ltd. We are glad to help you. And customers around the world are all welcome, anytime. We hope our factory and customers, you, will achieve developments always, together.

15hp chinese walking tractor

1.the whole tractor

type: both traction and driving

overall dimensions(L×W×H):2170×910×1160mm

wheel tread: 680~740mm( stepless adjustable)

mini-ground clearance:210mm

mini-working weight:340kg

transmission box: has main and subsidiary transmissions, 6 forward gears and 2 reverse, full power sliding gear transmission, (3+1)×2 composition style round column gear drive.

Connection of engine and transmission system:2 B188 triangle belts.

Number of stalls(forward/reverse): 6/2.

Every stall’s rated speed:

Stalls

1

2

3

4

5

6

Reverse 1

Reverse 2

Speed(kw/h)

3.5

6.4

10.4

12.6

21.3

27.7

2.6

7

Traction(N)

1970

1970

1970

1970

1740

1000

/

/

Connection of engine and clutch: belt transmission

Starter: hand cranking , or electric starter , it’s optional.

2.engine   trademark and model: JIANGDONG S1100

Style: horizontal, single cylinder, four strokes, water-cooled.

Company’s name: Yancheng Xingdong Machinery CO., Ltd.

Number of cylinder : 1 cylinder .

Cylinder diameter×stroke:100×115mm .

Replacement: 0.903L

Compression ratio: 17:1

Rated power: 11030W

Rated rotary speed: 2200r/min

Style of fuel injection pump: fork type

Cooling system: evaporative cooling,or water-cooled with condenser, it’s optional

3.style of headlamp: 151

4.model of fuel tank: 185-11100

      Capacity: 9L

5.about the silencer:

weight of silencer: 2kg

6.transmission system

      clutch type: single chip, dry type, normal joining, friction type

      transmission box type: composition of mechanical gearbox 7.travelling system:

model of tyre(drive wheel):6.00-16

tyre pressure(driving wheel): 120~250kpa

15hp chinese walking tractor



15hp chinese walking tractor

We are happy to help others, and surely we’d like us to cooperate, with you, friends from all over the world. We really want to make our factory better and better. And we will do our best to service you. Let us achive success together.
