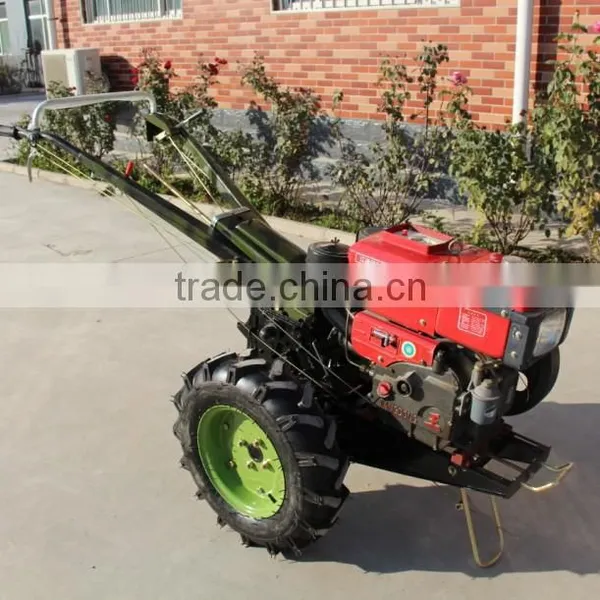

15hp Walking Tractor Made in China

15hp Walking Tractor Made in China thumbnail-1
15hp Walking Tractor Made in China thumbnail-2

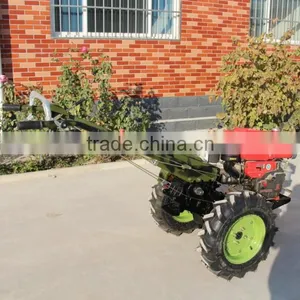

15hp Walking Tractor Made in China thumbnail-3
15hp Walking Tractor Made in China thumbnail-4
15hp Walking Tractor Made in China thumbnail-5
15hp Walking Tractor Made in China photo-1

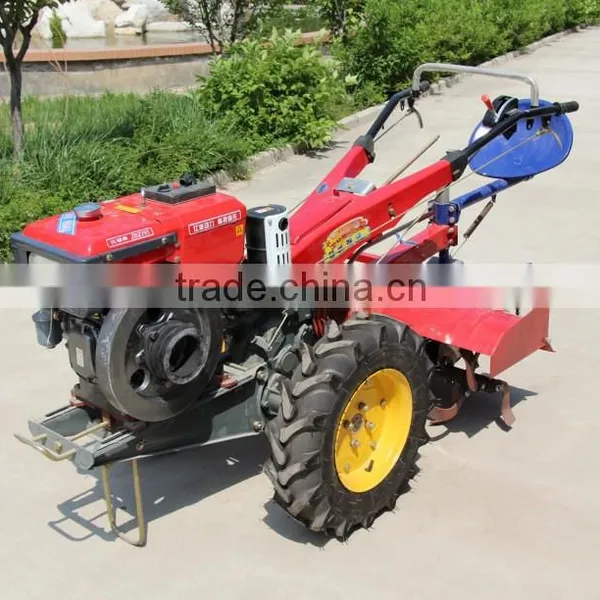

15hp Walking Tractor Made in China photo-2

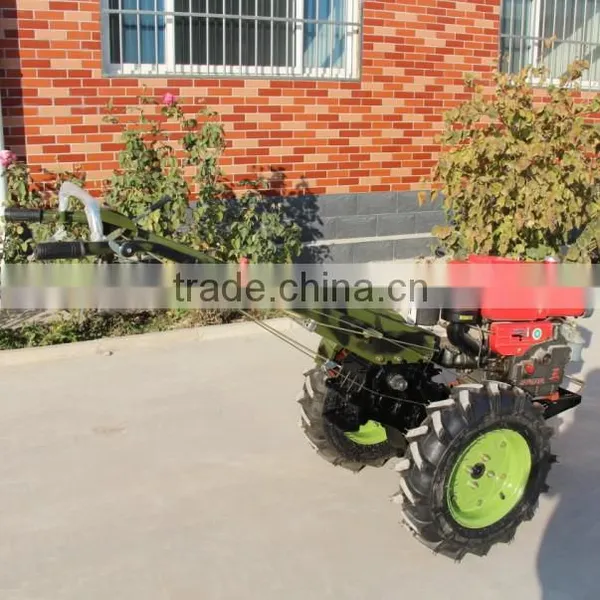

15hp Walking Tractor Made in China photo-3

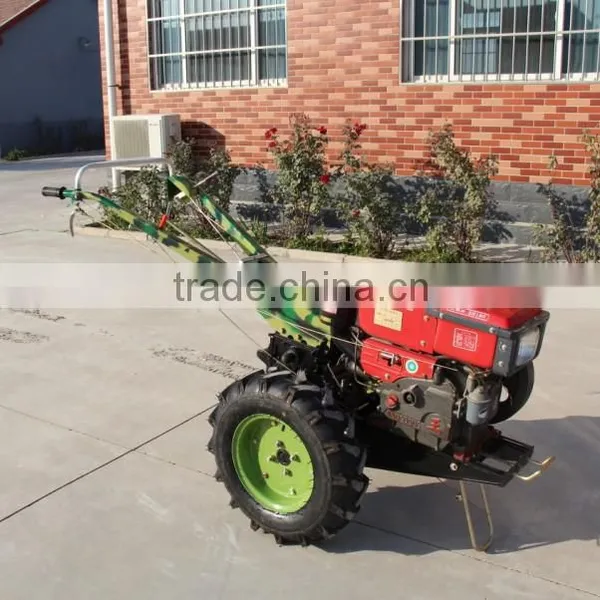

15hp Walking Tractor Made in China photo-4

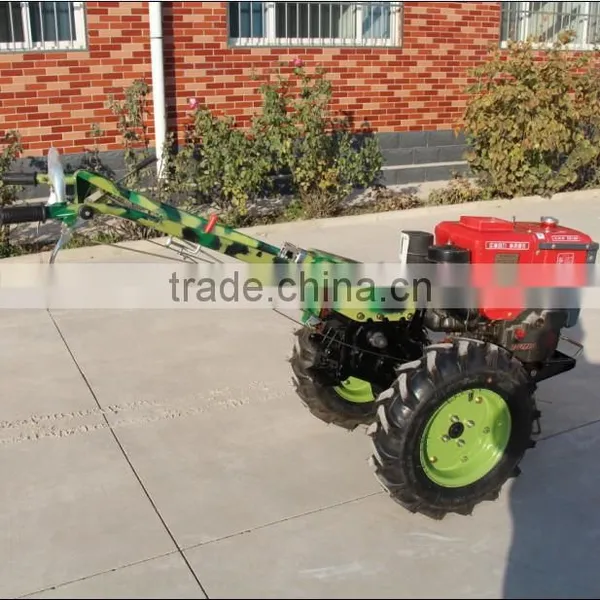

15hp Walking Tractor Made in China photo-5
US$ 880 - 1,400 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Type:
Walking Tractor
By wheel:
Other, 2WD, 2WD
Contact Supplier Request Quote Chat Now
Shandong Luwei Agriculture Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Walking Tractor
By wheel Other, 2WD, 2WD
Usage Other, Farm Tractor, Manual
Drive Type Other, Gear Drive, Gear Driver
Power(W) 11.03KW
Certificate Other, ISO9001, ISO9001
Brand Name FENGLI
Model Number 151
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

Specifications

15hp walking tractor
pull and drive.
the diesel: S1100,
compact construction
cultivate and transport.

Shandong Agricultural Equipment,Co.,Ltd.

15hp chinese walking tractor

1.The whole tractor

type: both traction and driving

overall dimensions(L×W×H):2170×910×1160mm

wheel tread: 680~740mm( stepless adjustable)

mini-ground clearance:210mm

mini-working weight:400kg

transmission box: has main and subsidiary transmissions, 6 forward gears and 2 reverse, full power sliding gear transmission,

(3+1)×2 composition style round column gear drive.

Connection of engine and transmission system:2 B188 triangle belts.

Number of stalls(forward/reverse): 6/2.

Every stall’s rated speed:

Stalls

1

2

3

4

5

6

Reverse 1

Reverse 2

Speed(kw/h)

3.5

6.4

10.4

12.6

21.3

27.7

2.6

7

Traction(N)

1970

1970

1970

1970

1740

1000

/

/

Connection of engine and clutch: belt transmission

Starter: hand cranking , or electric starter , it’s optional.

2.Engine   trademark and model: JIANGDONG S1100

Style: horizontal, single cylinder, four strokes, water-cooled.

Company’s name: Yancheng Xingdong Machinery CO., Ltd.

Number of cylinder : 1 cylinder .

Cylinder diameter×stroke:100×115mm .

Replacement: 0.903L

Compression ratio: 17:1

Rated power: 11030W

Rated rotary speed: 2200r/min

Style of fuel injection pump: fork type

Cooling system: evaporative cooling,or water-cooled with condenser, it’s optional

3.Style of headlamp: 151

4.Model of fuel tank: 185-1100

    Capacity: 8.5~1.1L

5.About the silencer:

   weight of silencer: 2kg880

6.Transmission system

   clutch type: single chip, dry type, normal joining, friction type

   transmission box type: composition of mechanical gearbox 7.travelling system:

   model of tyre(drive wheel):6.00-16

   tyre pressure(driving wheel): 120~250kpa
