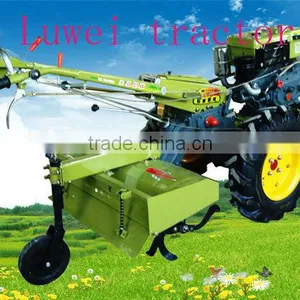

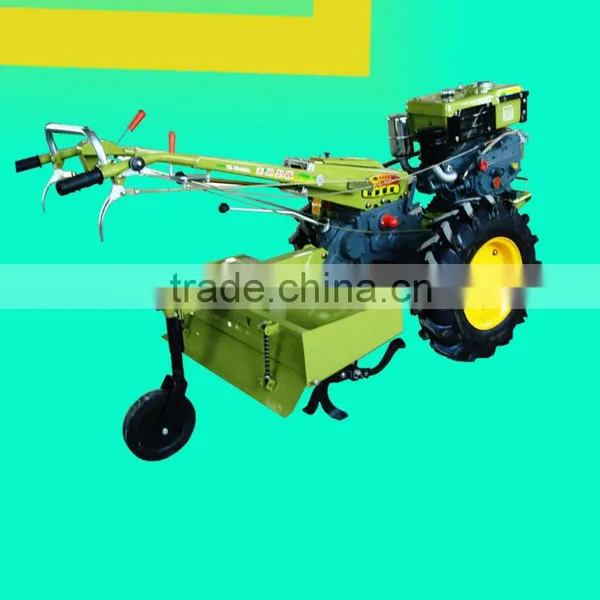

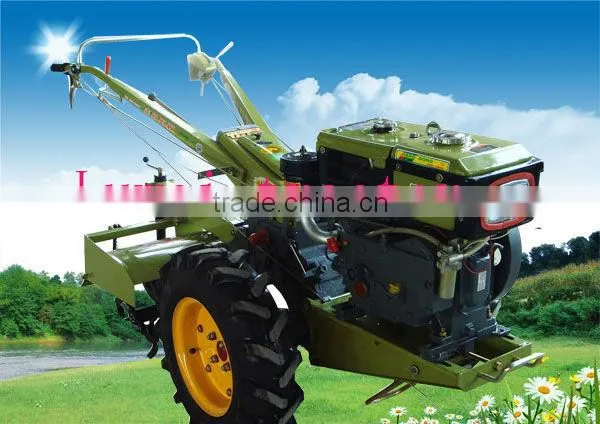

10HP Walking Behind Tractor

10HP Walking Behind Tractor thumbnail-1
10HP Walking Behind Tractor thumbnail-2
10HP Walking Behind Tractor thumbnail-3
10HP Walking Behind Tractor photo-1
10HP Walking Behind Tractor photo-2
10HP Walking Behind Tractor photo-3
US$ 400 - 1,800 MOQ: 20 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Shandong Luwei Agriculture Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 7000
Certificate Other, ISO9000
Brand Name FENGLI
Model Number 101B
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

Specifications

FL101 walking tractor
pull and drive.
the diesel: 190,but optional
compact construction
cultivate and transport.

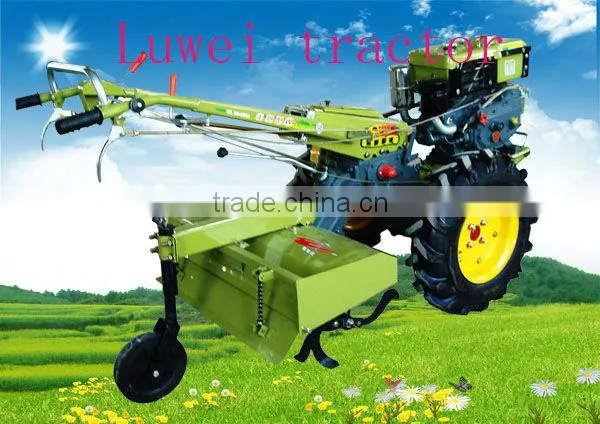

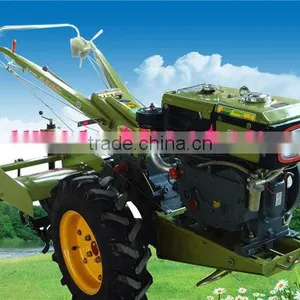

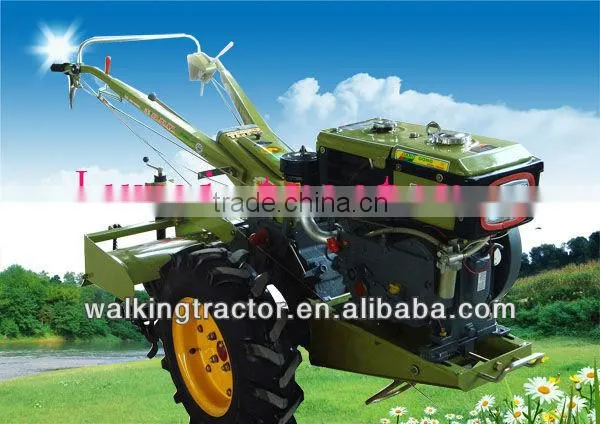

This is 10HP walking tractor.

We are Shandong Agricultural Equipment,Co.,Ltd. We are glad to help you. And customers around the world are all welcome, anytime. We hope our factory and customers, you, will achieve developments always, together.



1. the overall unit model: model 101B

type: both traction and driving

overall dimensions(L×W×H):2170×910×1160mm

wheel tread: 680~740mm( stepless adjustable)

mini-ground clearance:210mm

mini-working weight:340kg

transmission box: has main and subsidiary transmissions, 6 forward gears and 2 reverse, full power sliding gear transmission, (3+1)×2 composition style round column gear drive.

Connection of engine and transmission system:2 B188 triangle belts.

Number of stalls(forward/reverse): 6/2.

Every stall’s rated speed:

Stalls

1

2

3

4

5

6

Reverse 1

Reverse 2

Speed(kw/h)

2.52

2.98

3.12

9.3

16.37

24.49

1.93

6

Traction(N)

1600

1600

1600

1600

1616

956

/

/

Connection of engine and clutch: belt transmission

Starter: hand cranking

Open size of traction box:95mm

2.engine   trademark and model: JIANGDONG ZH190T

Style: horizontal, single cylinder, four strokes, water-cooled.

Company’s name: Yancheng Xingdong Machinery CO., Ltd.

Number of cylinder : 1 cylinder .

Cylinder diameter×stroke:90×90mm .

Replacement: 0.573L

Compression ratio: 18:1

Rated power: 7kw

Rated rotary speed: 2300r/min

Style and model of fuel injection pump: fork type, BF1A80Z03

Style and model of air filter: paper-oil bath steel mesh filter

Cooling system: evaporative cooling

3.style of headlamp: 190H3

4.model of fuel tank: R185-11100

      Capacity: 7.4L

5.about the silencer:

dimensions of eliminating vocal cavity(L×W×H):110×190mm

weight of silencer: 1.5kg

6.transmission system

      clutch type: single chip, dry type, normal joining, friction type

      transmission box type: composition of mechanical gearbox 7.travelling system:

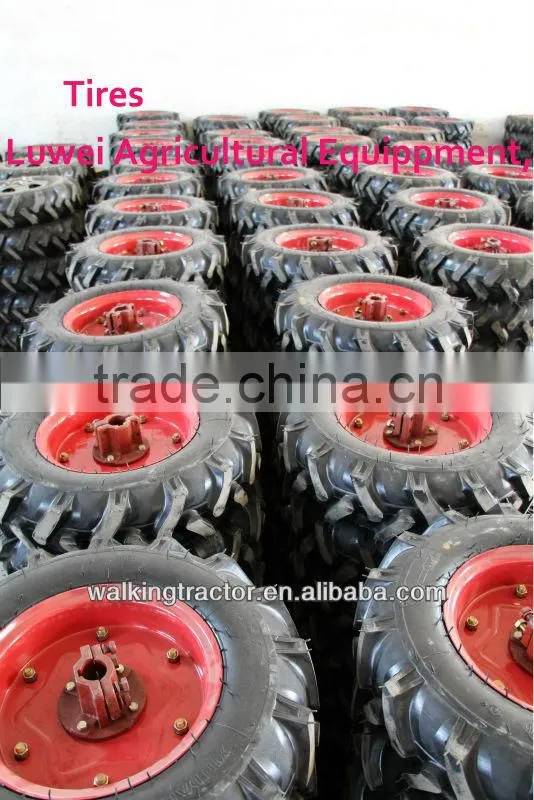

model of tyre(drive wheel):6.00-12

tyre pressure(driving wheel): 120~250kpa





10HP walking behind tractor



 10HP walking behind tractor

10HP walking behind tractor

10HP walking behind tractor

10HP walking behind tractor

10HP walking behind tractor

10HP walking behind tractor

10HP walking behind tractor

We are happy to help others, and surely we’d like us to cooperate, with you, friends from all over the world. We really want to make our factory better and better. And we will do our best to service you. Let us achive success together.
