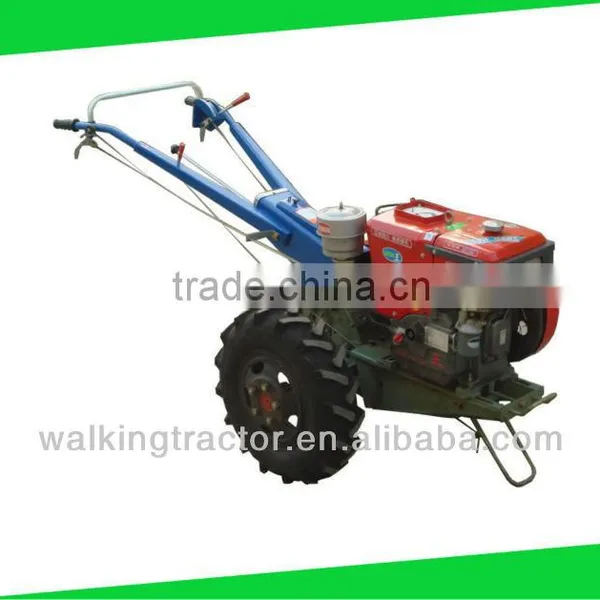

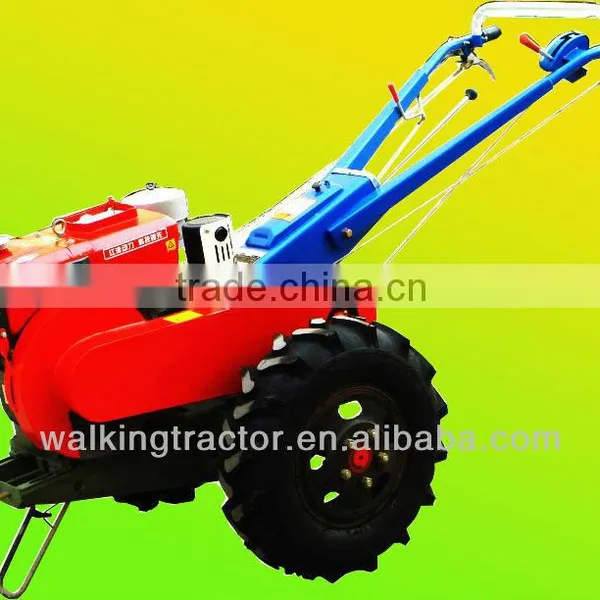

12HP walking tractor

Specifications

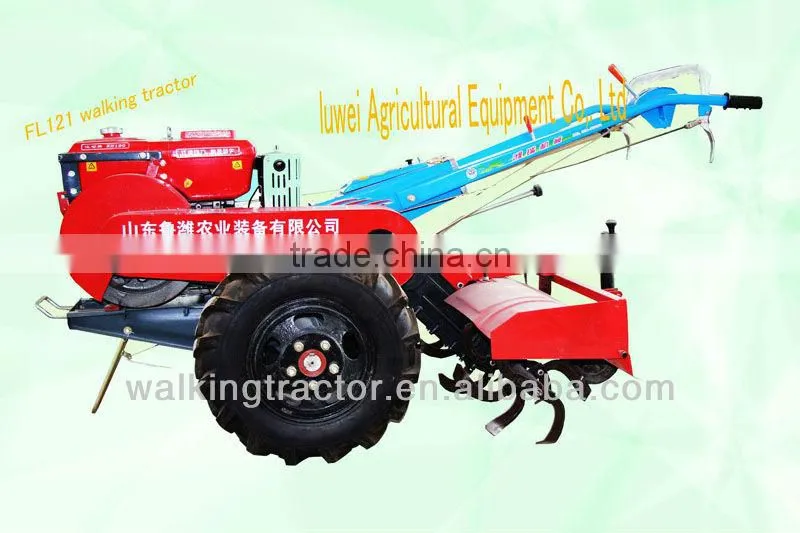

FL121 walking tractor
pull and drive.
the diesel: 195,but optional
compact construction
cultivate and transport.

Machine model:FL121

   Type: pull and drive.

   Overall dimensions(L×W×H):  2100×900×1250mm

   Wheel tread:  680~740mm(stepless shift,adjustable)

   minimum ground clearance: 210mm

    minimum turning radius: 210mm

 structure weight:270kg

  Minimum working weight:  320kg(with fuel, water, revelant equippments and tools)

   Transmission gear box:  equipped with main transmissions and sub transmissions,6 forward gears and 2 reverse, full power sliding gear transmission,consists of (3+1) ×2 cylindrical wheel gear

gears:



forward	1	speed(km/h)	1.98	rated traction(N)	1600
	2	speed(km/h)	3.08	rated traction(N)	1600
	3	speed(km/h)	4.98	rated traction(N)	1600
	4	speed(km/h)	8.04	rated traction(N)	1600
	5	speed(km/h)	12.49	rated traction(N)	1616
	6	speed(km/h)	20.2	rated traction(N)	956
reverse	1	speed(km/h)	1.53	rated traction(N)	/
	2	speed(km/h)	6.18	rated traction(N)	/





































rated power: 8.53KW

  rated rotating speed: 2400r/min

Connection of engine and transmission system:  2 triangle belt



Starting mode: rotating the hand crank or electric starting



2.engine model: 196

  type/style: horizontal, single cylinder, four stroke and water cooled

   type of cooling system: evaporative cooling or water-cooled, optional

3.capacity of fuel tank: 9L

4.drive wheel tyre: 6.00-12

5.tire pressure of drive wheel: 80~120KPa(0.8 ~1.2kgf/cm²  ) when farming

                                                140 ~ 200KPa(1.4.8 ~ 2.0kgf/cm ² ) when transporting
