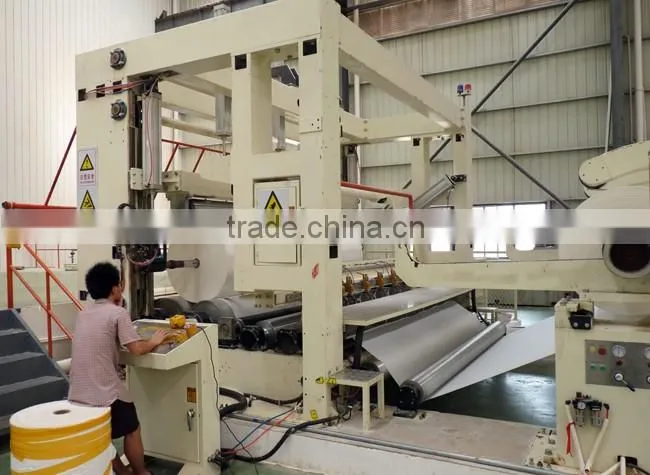

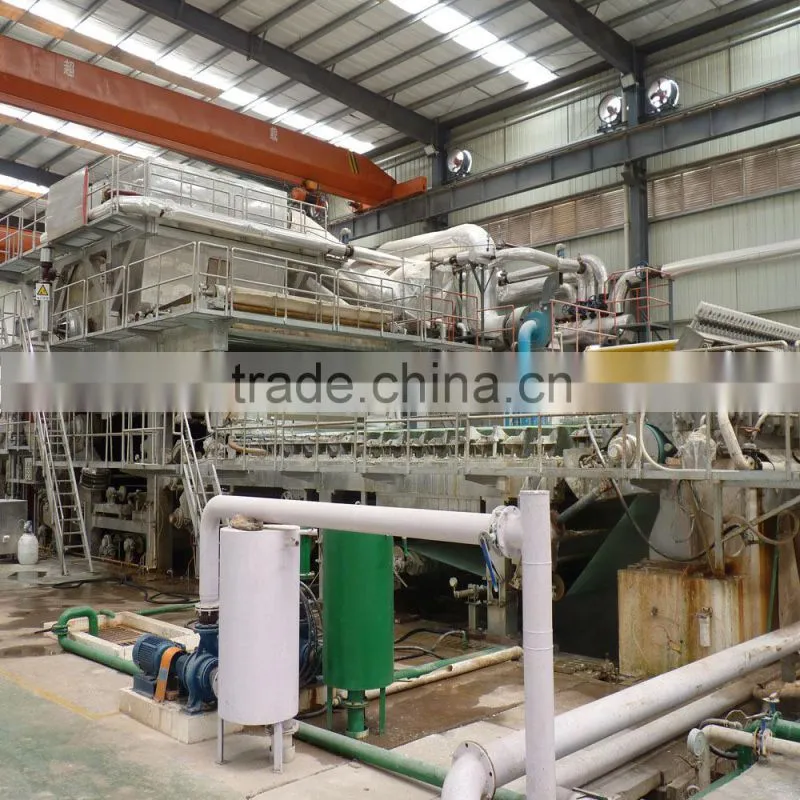

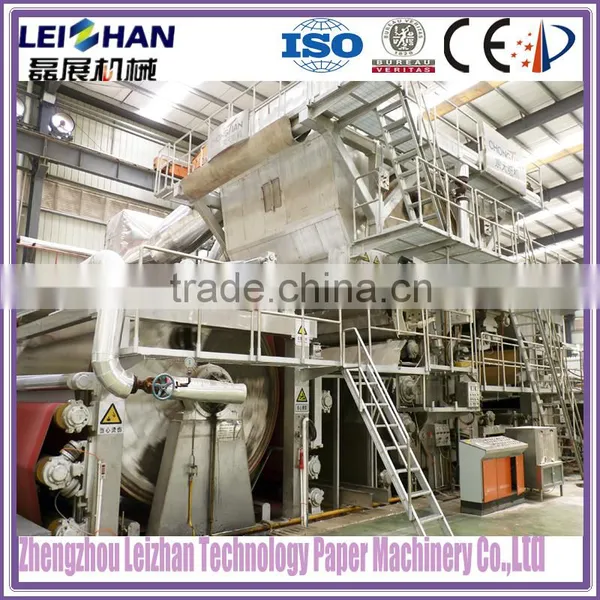

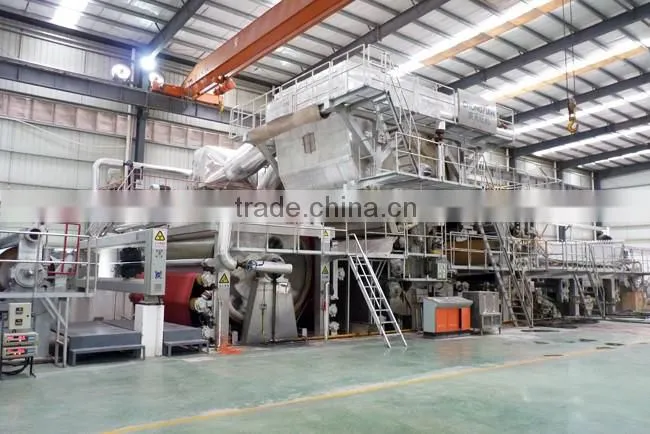

Factory price paper recycling machine/ tissue paper manufacturing machine
Factory price paper recycling machine/ tissue paper manufacturing machine has great performance , it makes recycled paper into new toilet tissue.
1.Trimmed Width:2400,2640,2880.3200,3400,3800,4200,4400
2.Raw material: Virgin Pulp, recycled paper, De-ink.ed pulp
Main Supporing Parts
•Heat recycle System
•Breating Hood
•Yankee Cylinder
•Suction Box.
•Vacuum Pump
•Horizontal Screen
•Fan pump
•Horizontal Wave Doctor Blade System
•PEO Supply System
Process Flow Diagram of toilet paper manufacturing plant
Raw materials (waste paper)——pulper——vibrating sieve——pulp tank——pulp pump——bleach machine(thruster)——refiner machine——pulp tank——pulp pump——pressure sieve——pulp tank—— pulp pump——except sand machine——net box——cylinder——blanket——paper making machine——drying——roll paper——the big finished jumbo paper
Main Technical Parameter Well selling goods paper
Machine Model |
1092 |
1575 |
1760 |
2200 |
2500 |
2800 |
Width (mm) |
1350 |
1750 |
1900 |
2150 |
2450 |
2750 |
Finished Products Diameter |
Φ 60~150mm (Tightness can be adjustable) |
|||||
Finished Products Inner Diameter |
Φ32~50 mm |
|||||
Jumbo roll diameter (mm) |
Φ 1200 (Other sizes can be ordered) |
|||||
Jumbo Roll Inner Diameter |
3”,76.2 mm (other sizes can be ordered) |
|||||
Perforation distance (mm) |
4 blade,90~160mm;2 blade,180~320mm; |
|||||
Production speed |
160-180 m/min |
|||||
Parameter set |
Touching-screener Multi-menu Man-machine Interface Operation System |
|||||
Programmable controller |
Mitsubishi PLC program |
|||||
Mechanical driving |
Driven by stepless speed-regulator to guarantee the precise length of final products. |
|||||
Embossment unit |
Single embossment, Double embossment, Steel to steel embossment; |
|||||
Embossment down roller |
Felt roller, paper roller, rubber roller |
|||||
Jumbo roll stand |
1-3 plies (ply quantity can be ordered) |
|||||
Air pneumatic system |
3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (customers should be prepared by themselves) |
|||||
Power |
5.5-15KW (Frequency speed-regulate ) |
|||||
Overall size (m)(L×W×H) |
7 X (2.3-4) X 1.8 |
|||||
Weight of equipment |
4000~8000kg (approximately) |
|||||
Chosen items (Should be ordered separately) | ||||||
Embossment |
Single embossment, double embossment, steel to steel embossment |
|||||
Embossment down roller |
Felt roller, paper roller, rubber roller |
|||||
Jumbo roll stand |
1-3 plies |
|||||
Jumbo roll stand driving |
Driven by variator |
|||||
Rewinding unit |
Non-core unit |
|||||
Printing unit |
Single color heliotype printing unit |
|||||
Side rolling embossment |
Steel to steel |
|||||
Perforation mode |
Air pneumatic separating unit |
|||||
Smooth embossment |
Steel to steel, Steel to rubber ; |
|||||
Remote telecom service system |
Should be ordered separately.
|
|||||
Give you our best !
♥.Pre-sale services: perfect technical design for you
We provide you with perfect prophase plan, process flow design and practical equipment on the basis of your condition.
♥.After-sale services: overseas service provided
It have been our tenet that we should provide the best to our customers. So we have engineers overseas for the installation and maintenance.
leizhan have developed into a first class paper and pulp machinery manufacturer since the establishment in 1980. In these years, we have finished many paper production line project in many countries and areas, including Egypt, India,Saudi Arabia,Malasia ,Russia,Afria, and some european and American ares.
Every year, Leizhan will receive invitations from exhibition in and out of China. In this year, we have attended 6 exhibitions, including that in India, Egypt, Shanghai, Beijing, Guangzhou, China.
