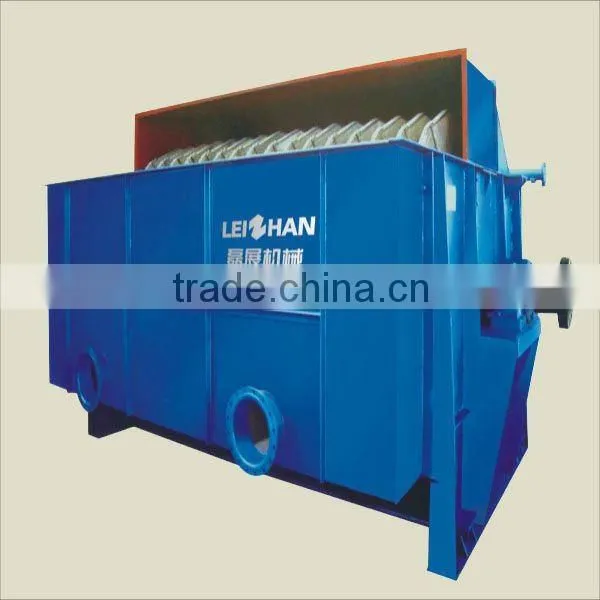

Help CenterZNP Series Disc Thicker for Waste Paper Mill Machinery
Related Products
-
Disc Thickener Used for Washing and Thickening/paper Making IndustryNegotiableMOQ: 1 Sheet -
Disc Thickener/paper Pulp Industrial UseNegotiableMOQ: 1 Sheet
-
2015 HOT SELL Disc Pulp Thickener Machine of Paper Production LineNegotiableMOQ: 1 Set
-
Paper Pulp Washing Machinery -disc ThickenerUS$ 1,000 - 150,000MOQ: 1 Set
-
Hot Sale Disc Filter Pulp Paper MachineUS$ 1,000 - 150,000MOQ: 1 Set
Specifications
1.Stainless steel sector2.White water filtrated is lower
3.Higher effciency and less space required
The ZNP series disc concentrator is a compact disc filter with atmospheric function, mainly for pulp and paper industry of low-enriched pulp washing, concentrated. Design do not need to run the vacuum or water leg. The slurry level is high or water pressure to most of the increase production and ensure stability. The device is not sensitive to change into the plasma flow and concentration, using a wide range, easy handling, low freeness pulp. The aircraft tank, fan tray, the center on the cover and spray pipe components, fan tray with the spindle rotation, through internal and external pressure and gravity, white water through the filter into the fan disk, the central tube one end white water exports out of the slurry is adsorbed on the fan disk, concentrated slurry by high-pressure water falling off, the overflow from the pulp side to the slurry tank discharge. This machine is different from the vacuum disc filter does not need an alternative to the higher floors, the traditional gravity rotary concentrator. Basic disc's gravity thickener design with 5-20 discs, each disc has multiple blades, each fan piece functions independently of the other fan film, regardless of the filter area or ability it is easy to a special simply rely on the installed blind flange or increase disc box to apply to any applications.
Main specifications
Model |
ZNP2508 |
ZNP2510 |
ZNP2512 |
ZNP2514 |
ZNP2516 |
ZNP3510 |
ZNP3514 |
ZNP3512 |
ZNP3516 |
Diameter of disc(mm) |
Φ2500 |
Φ3500 |
|||||||
Amount of disc(n) |
8 |
10 |
12 |
14 |
16 |
10 |
12 |
14 |
16 |
Nominal area(m2) |
60 |
75 |
90 |
105 |
120 |
150 |
180 |
10 |
20 |
Concentration of input pulp (%) |
0.8-1.2 |
||||||||
Concentration of output pulp (%) |
3.5-4.5 |
||||||||
Processing capacity ONP(t/d) |
0.9-1.2t/(m2.d) |
||||||||
Processing capacity Aocc(t/d) |
1.5-2.4t(m2.d) |
||||||||
Motor power(Kw) |
11 |
15 |
18.5 |
22 |
30 |
||||
Zhengzhou Leizhan Technology Paper Machinery Co.,Ltd.
Professional manufacturer of complete set paper making equipment with 30 years
Contact person:Grace Ma
Mobile phone: 86-15838395576 & 13783579051
Skype: ma_sainan
Send Inquiry to This Supplier
