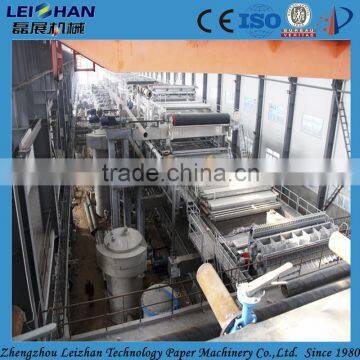

White top liner paper machine, Kraft rolling paper production machinery
- 1000 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T Credit Card
- Full Automatic 3 Layers Kraft Paper Machine
- New Condition Kraft Paper Machine/ Paper Machine for Sale/ Machine for Kraft Paper Making
- Kraft paper core making machine/ paper machine for sale
- High quality paper machine for sale/ machine for kraft paper making
- 2016 best sale kraft paper machine in Leizhan
- Good quality paper machine manufacturer supply machine for kraft paper making
Product Details
Condition: | New | Product Type: | Other, paper machine | Processing Type: | Other, paper machine |
Place of Origin: | Henan, China | Brand Name: | Leizhan | Model Number: | paper machine |
Voltage: | 380v / 450v | Power(W): | 2200-4000w | Dimension(L*W*H): | according to types |
Weight: | according to types | Certification: | Other, ISO, BV | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Wooden case or as your request
Product Description
White top liner paper machine, Kraft rolling paper production machinery
1. Trimmed width:787,1092,1575,1760,1880,2184,2400,2640,2880.3200,3400,3800,4200,4400
2. Raw material: Virgin Pulp, recycled paper, De-inked pulp.
Process Flow Diagram
Raw materials (waste paper)——pulper——vibrating sieve——pulp tank——pulp pump——bleach machine(thruster)——refiner machine——pulp tank——pulp pump——pressure sieve——pulp tank—— pulp pump——except sand machine——net box——cylinder——blanket——paper making machine——drying——roll paper——the big finished jumbo paper —— process machine
Structure of paper machine:
1. cylinder mould section:φ1000mm×1450mm stainless steel cylinder mould 1set, φ 300mm×1450mm couch roll 1set,coated by rubber, rubber shore hardness 38°C±2.
2. dryer section: φ 1500mm×1450mm alloy dryer can 1 set, 1group scraper knife. φ 350mm×1450mm touch roll 1set, coated by rubber, rubber shore hardness 90°C±2.Mechanical loading device
Main Technical Parameter :
Machine Model | 1092 | 1575 | 1760 | 2200 | 2500 | 2800 |
| |
Width (mm) | 1350 | 1750 | 1900 | 2150 | 2450 | 2750 |
| |
Finished Products Diameter | Φ 60~150mm (Tightness can be adjustable) | |||||||
Finished Products Inner Diameter | Φ32~50 mm | |||||||
Jumbo roll diameter (mm) | Φ 1200 (Other sizes can be ordered) | |||||||
Jumbo Roll Inner Diameter | 3”,76.2 mm (other sizes can be ordered) | |||||||
Perforation distance (mm) | 4 blade,90~160mm;2 blade,180~320mm; | |||||||
Production speed | 160-180 m/min | |||||||
Parameter set | Touching-screener Multi-menu Man-machine Interface Operation System | |||||||
Programmable controller | Mitsubishi PLC program | |||||||
Mechanical driving | Driven by stepless speed-regulator to guarantee the precise length of final products. | |||||||
Embossment unit | Single embossment, Double embossment, Steel to steel embossment; | |||||||
Embossment down roller | Felt roller, paper roller, rubber roller | |||||||
Jumbo roll stand | 1-3 plies (ply quantity can be ordered) | |||||||
Air pneumatic system | 3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (customers should be prepared by themselves) | |||||||
Power | 5.5-15KW (Frequency speed-regulate ) | |||||||
Overall size (m)(L×W×H) | 7 X (2.3-4) X 1.8 | |||||||
Weight of equipment | 4000~8000kg (approximately) | |||||||
Chosen items (Should be ordered separately) | ||||||||
Embossment | Single embossment, double embossment, steel to steel embossment | |||||||
Embossment down roller | Felt roller, paper roller, rubber roller | |||||||
Jumbo roll stand | 1-3 plies | |||||||
Jumbo roll stand driving | Driven by variator | |||||||
Rewinding unit | Non-core unit | |||||||
Printing unit | Single color heliotype printing unit | |||||||
Side rolling embossment | Steel to steel | |||||||
Perforation mode | Air pneumatic separating unit | |||||||
Smooth embossment | Steel to steel, Steel to rubber ; | |||||||
Remote telecom service system | Should be ordered separately. |
Installation
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment. Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.
Factory show
Paper making production lines we can provide
Waste paper pulp machine production line
Automatic corrugated box production line
Corrugated paper making production line
Fluting paper pulp making production line
Coated White Board Paper production line
Honeycomb Paper making production line
testliner paper making production line
Paper plate making production line
tissue paper making production line
toilet paper making machine line
kraft paper making machine line
boxboard paper machine line
Paper coating machine line
Napkin paper machine line
OCC line
Company Profile
Zhengzhou Leizhan Technology Paper making machinery Co.,Ltd is a professional manufacturer of pulp and papermaking equipments, which engaged in research and development, manufacture and sale, now has successfully developed the marketable high consitency pressure screen, inflow pressure screen and D type Hydrapulper, and become the leader manufaturer in this area for the domestic market.
This company is located in Zhengzhou City, Henan Provice, covering 40 thousand square meters. It has total assets of 50 million, over 200 employees including 10 senior engineers. This company has been certified for State ISO9001 Quality System Certification and owns 14 patents. Leizhan is designed with low carbon enviromental protaction, pays more attention to the international technical cummunication and cooperation, The main series of the products are waste paper delivery, waste paper bale breaking and screening, waste paper pulping, heavy slag cleaning, screening, deinking, concentration, heat dispersion, pulping, mixing and pulp conveying etc.
Leizhan has processing and testing equipment like CNC cutting machine, sand blasting system, vertical and horizontal CNC lathe, planer milling machine, vertical boring machine, automatic continuous welding machine, CNC bending machine, CNC shearing machine, veneer reeling machine, 1200 tons of press machine, high speed dynamic balance correction machine, assembly test table etc.
By more than 30 year's development, facing the new market condition and competition, we will improve and strengthen our brand strategy continuously, regard quality and service as the foundation of long-run development, by implementing the innovation of technology and management, based on pulper equipment, we strive forward to the international stage actively.
