Hot selling recycling paper making machine plant
Process flow
Trimmed Width(mm):1200-3600
Basis Weight(GSM):13-30
Production Capacity(TPD):2-45
Waste paper → high consistency hydrapulper → high frequency vibrating screen → pulp pump → efficient double disc pulp refiner → pulp pump → chest agitator→ pulp pump → centrifugal screen → pulp pump → impurity remover → corrugated paper machine → calendar → winding machine → rewinding machine → marketing
Raw materials for paper making

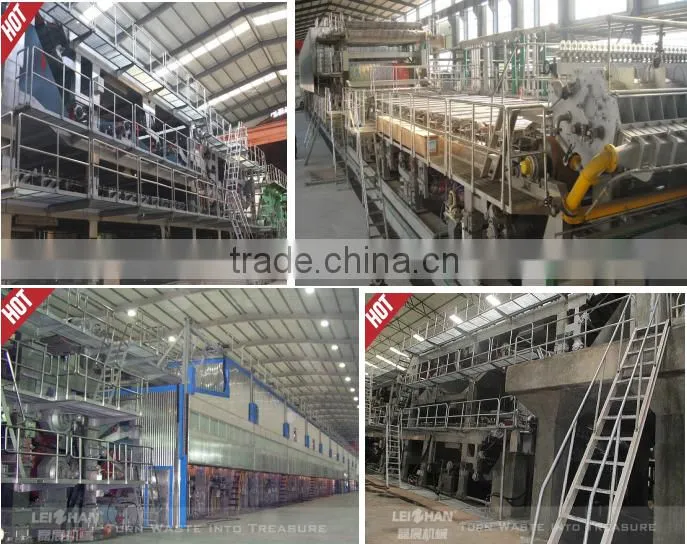

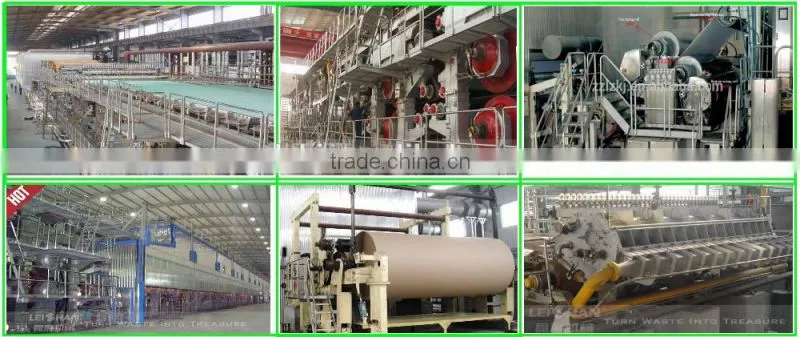

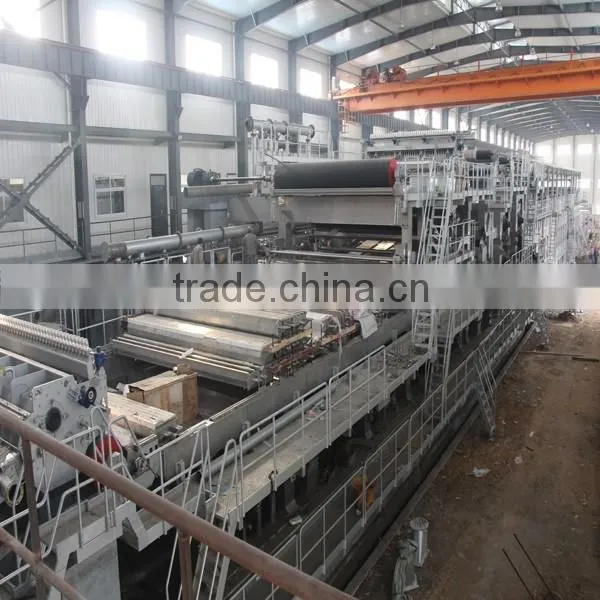

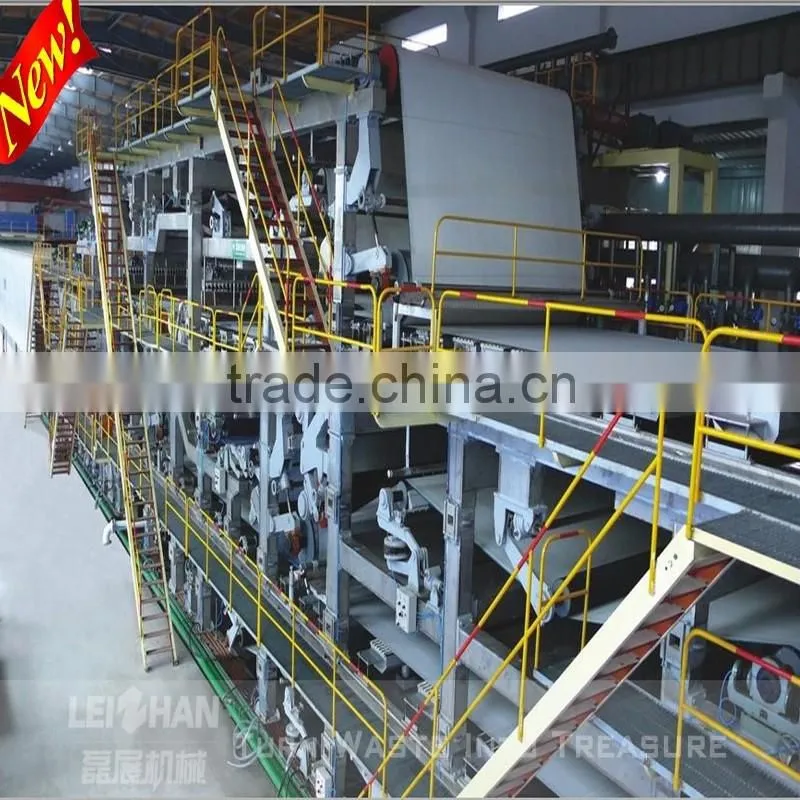

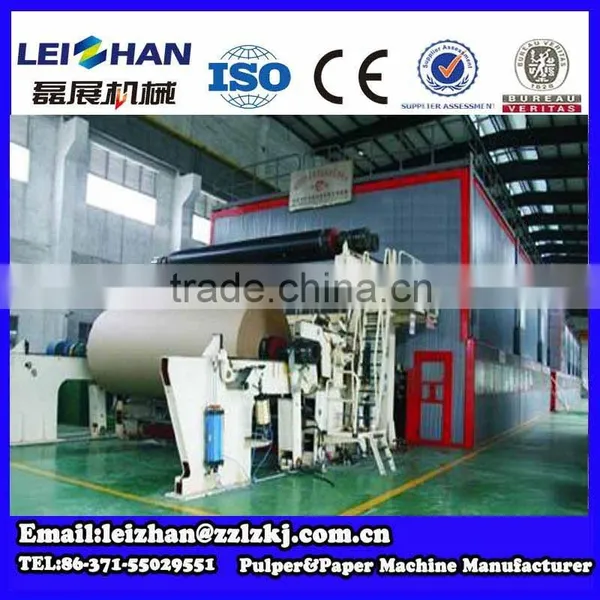

2400 multi-cylinder corrugate paper machine
1. Output paper:corrugate paper, carton paper,
2. Raw material:waste paper
3. Capacity: 330T/d you can choose
4. output paper weight:70-100g/m2
5. net paper width:2400mm
6. cylinder mould width: 2850mm
7. Rail space:3400mm
8. Working Speed:300-350m/min

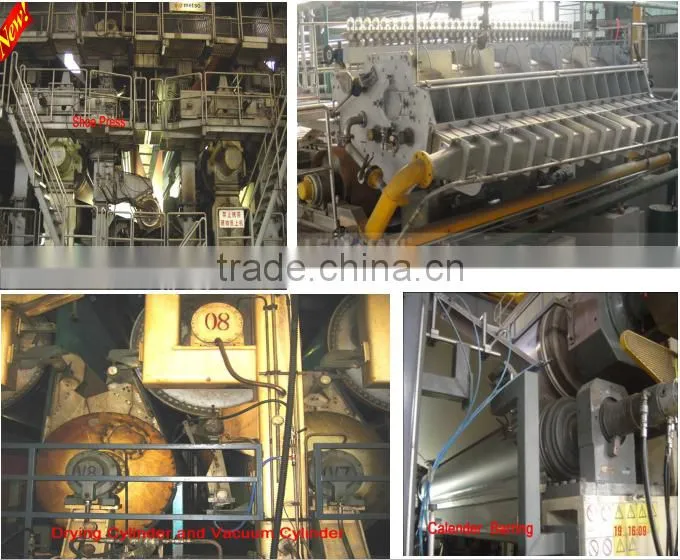

Main frames of corrugate paper machine
1.Cylinder part:Φ1500mm×2850mm cylinder mould 3sets;Φ450mm×2850mm couch roll 3sets; reverse roll 1 set; rubber Share hardness is 38°C±2, pneumatic pressure device.
2.Press part: Φ600mm×2850mm stone roll 1 set ;Φ550mm×2850mm rubber roll 1 set; 500 speed reducer of drive part 1 set; scraper knife 1 group.
3.Dryer part: Φ2500mm×2850mm Dryer can 2 sets ; Φ1500mm×2850mm Dryer can 8 sets; Φ550mm×2850mm touch roll 2 sets; rubber Share hardness is 95°±2, pneumatic pressure device.
4. winding part:
Cylinder type winding machine 1 set, Rewinding machine 1 set.
5. Driving & control part:
AC frequency conversion speed, section drive.
Main equipments
No. |
equipment |
QTY |
1 |
2400mm corrugate paper making machine |
1 set |
2 |
dryer can Exhaust hood |
1 set |
3 |
850axial flow ventilator |
3 sets |
4 |
1500mm Pressure type mesh vat |
1 set |
5 |
Model 15roots pump |
1 set |
6 |
suction box |
3 sets |
7 |
2400mm Winding machine |
1 set |
8 |
calender |
1 set |
9 |
Rewinding machine |
1 set |
10 |
5m3 high consistency Hydrapulper |
2 sets |
11 |
Fiber separator |
1 sets |
12 |
Pressure screen |
1 set |
13 |
2m2High frequency vibration screen |
2sets |
14 |
450Double disk pulp refiner |
3 sets |
15 |
12m2 Pulp thickener |
1 set |
16 |
Φ700mmThruster |
6 sets |
17 |
4 inch Pulp pump |
4 sets |
18 |
6 inch Pulp pump |
6 set |
19 |
8 inch Pulp pump |
4 set |
20 |
Japan Sanken Control cabinet |
1 set |
21 |
air pump cabinet |
1 set |
22 |
Work table |
1 set |

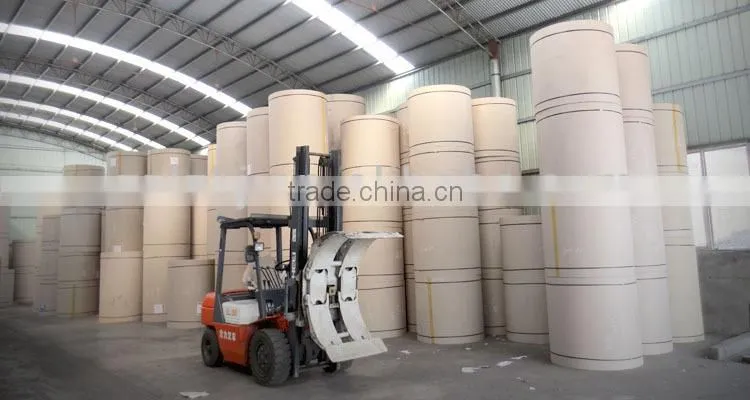

Paper machine products(They can be sold directly for further processing.)
1.Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
2.After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment.
Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.
Factory show
Customers visit our factory
Exhibition
Main products for paper pulp making
Paper making production lines we can provide
Waste paper pulp machine production line
Automatic corrugated box production line
Corrugated paper making production line
Fluting paper pulp making production line
Coated White Board Paper production line
Honeycomb Paper making production line
testliner paper making production line
Paper plate making production line
tissue paper making production line
toilet paper making machine line
kraft paper making machine line
boxboard paper machine line
Paper coating machine line
Napkin paper machine line
OCC line
Welcome to visit our factory. Any questions, contact us please
