Help CenterPelton Water Turbine 500KW
Related Products
-
Pelton Water Turbine Generator 400KWUS$ 100,000 - 100,000,000MOQ: 1 Set -
Pelton Water Turbine Generator 500KWUS$ 100,000 - 100,000,000MOQ: 1 Set
-
Pelton Water Turbine Generator 630KWUS$ 100,000 - 100,000,000MOQ: 1 Set
-
Pelton Water Turbine Generator 800KWUS$ 100,000 - 100,000,000MOQ: 1 Set
-
Pelton Water Turbine Generator 1000KWUS$ 100,000 - 100,000,000MOQ: 1 Set
Specifications
1.Higher quality2.Lower price
3.higher credit
4.Fastly dilivery
Our products have been exported to over ten countries, such as Iran, Vietnam, Indonesia, Pakistan, Sri Lanka, North Korea, Kazakhstan, Laos, etc.
Suitable water head:H≥100 m

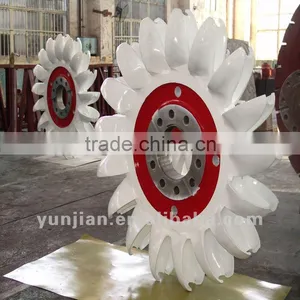

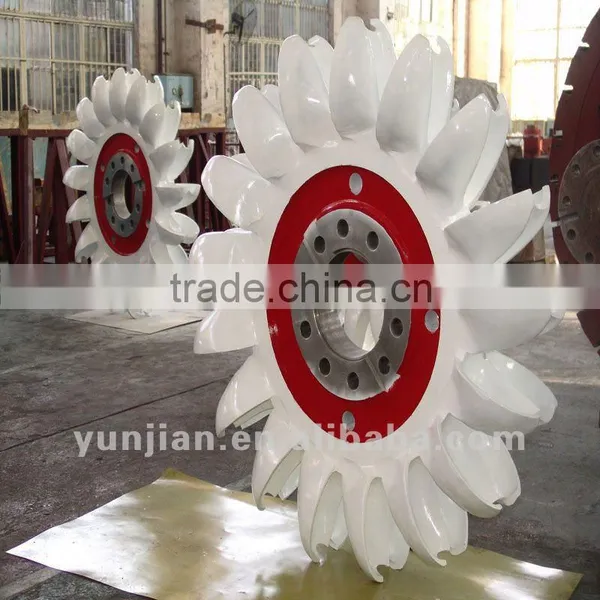

Product advantage:Impulse turbine is mainly composed of nozzle,deflector,runner and housing case,the nozzle transform water energy into kinetic energy and it becomes free jet by itself.Impulse runner change water energy into mechanism energy by rotation.Impulse turbine are divided into Pelton turbine, Turgo turbine and Cross-flow turbine refer to the different ways of the jet impulsing the runner.
Water turbine |
Generator |
Output Power(kw) |
Corollary equipment |
||||||
Type |
Design Water head(m) |
Design Flow(m3/s) |
Rotation rate(r/min) |
Output Power(kw) |
Type |
Voltage(v) |
Excitation board |
Governor |
|
CJ22-W-70/1X5.5 |
350 |
0.19 |
1000 |
541 |
SFW500-6/990 |
400 |
500 |
TKL |
TCD-300 or CJT-2 |
Send Inquiry to This Supplier
