Home > Manufacturing & Processing Machinery > Paper Machinery > Paper Making Machine > China Paper Product Mill Provide HD Series Sludge Dewatering Machine for Paper Making Equipment
China Paper Product Mill Provide HD Series Sludge Dewatering Machine for Paper Making Equipment
US$ 1,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, sludge dewatering machine
Processing Type:
Binding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Manufacturer With High Capacity Products and Paper Factory for HD Series Sludge Dewtering MachineUS$ 1 - 10,000MOQ: 1 Set -
Chinese Good Manufacturer HD Series Sludge Dewatering MachineUS$ 1 - 100,000MOQ: 1 Set
-
Paper Making Industry Belt Press Type DehydratorUS$ 10 - 10,000MOQ: 1 Set
-
Pulp Making Machine Sludge Dewatering Screw PressUS$ 1 - 10,000MOQ: 1 Set
-
High Efficiency Sludge Thickening Machine / Dehydrator SludgeUS$ 100 - 10,000MOQ: 1 Set
Condition
New
Product Type
Other, sludge dewatering machine
Processing Type
Binding Machine
Place of Origin
Henan, China
Brand Name
Leizhan
Model Number
HD
Voltage
380V
Power(W)
2.2-5.5kw
Dimension(L*W*H)
1500mm~3000mm
Weight
accordingly
Certification
Other, ISO/BV
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Alibaba China Paper Product Mill Provide HD Series Sludge Dewatering Machine for Paper Making Equipment
Application
Used to concentrate sludge in paper making industry,municipal ,etc.
Product Description

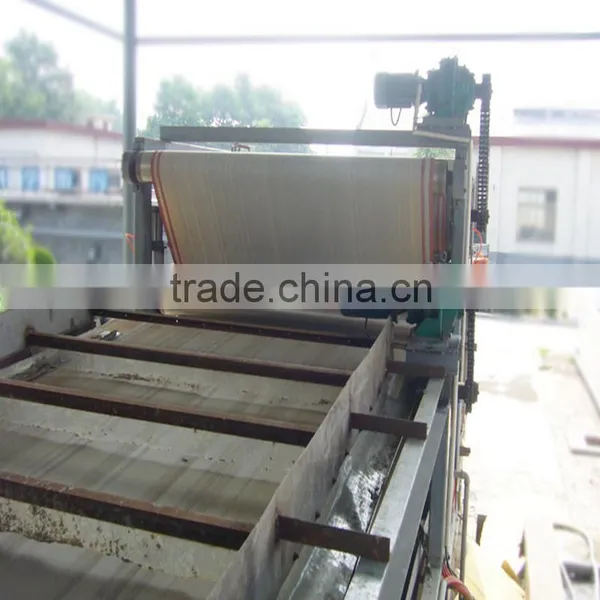

Working principle
It is Mainly used for pulp material inspissations washing and dirty mud dehydration , which is in four areas, namely gravity dehydration, wedge re-pressure dehydration, swing dehydration and shear dehydration.
- Gravity dehydration: Because of the high liquidity of liquid sludge, no compression capability, so the sludge get into the gravity dehydration area first. In this part it can remove the pretreated water, reduce the liquidity of sludge, make the floccules and granules come into being larger adhesion.
- Wedge re-pressure dehydration: The sludge comes into the phases to dehydration with mini pressure, and almost lose all of the liquidity.
- Swing dehydration: After the water of free water and floccules were removal mainly. Here comes the swing dehydration area. It improve the net belt tension gradually, through diameter’s change of the roller, and formed gradually dehydration area.
- Shear dehydration: When the mesh belt clip mud get into roller with smaller diameter, the squeeze power comes into being by filters tensile force put the shaped sludge into the two filters belt. Then dehydration by the shear power.
Packaging & Shipping
Customers Visiting
Our Services
1.Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
2.After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
Providing life-long maintenance service;

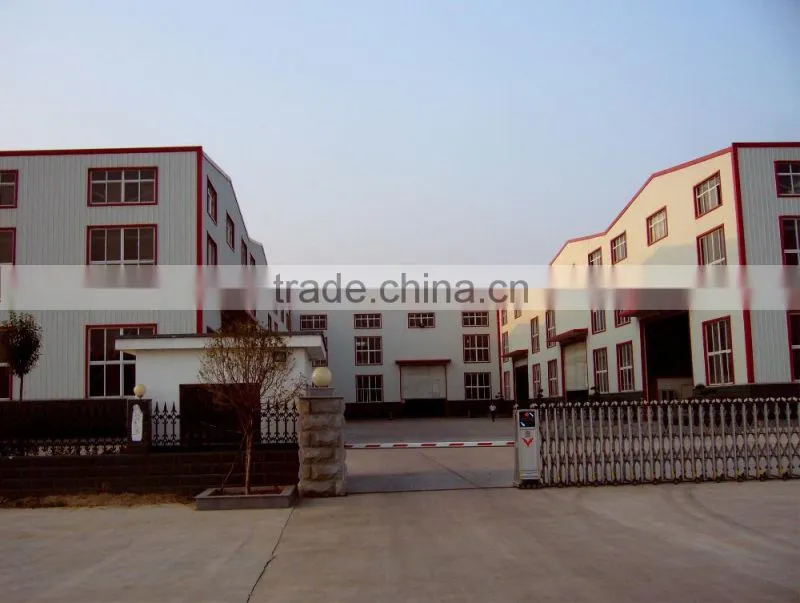

Company Information
Send Inquiry to This Supplier
Mr. leizhan company
6Yrs
Zhengzhou, Henan, China
6Yrs
Business Type
Manufacturer, Trading Company
Year Established
2010
Factory Size
30,000-50,000 square meters
Total Employees
101 - 200 People
