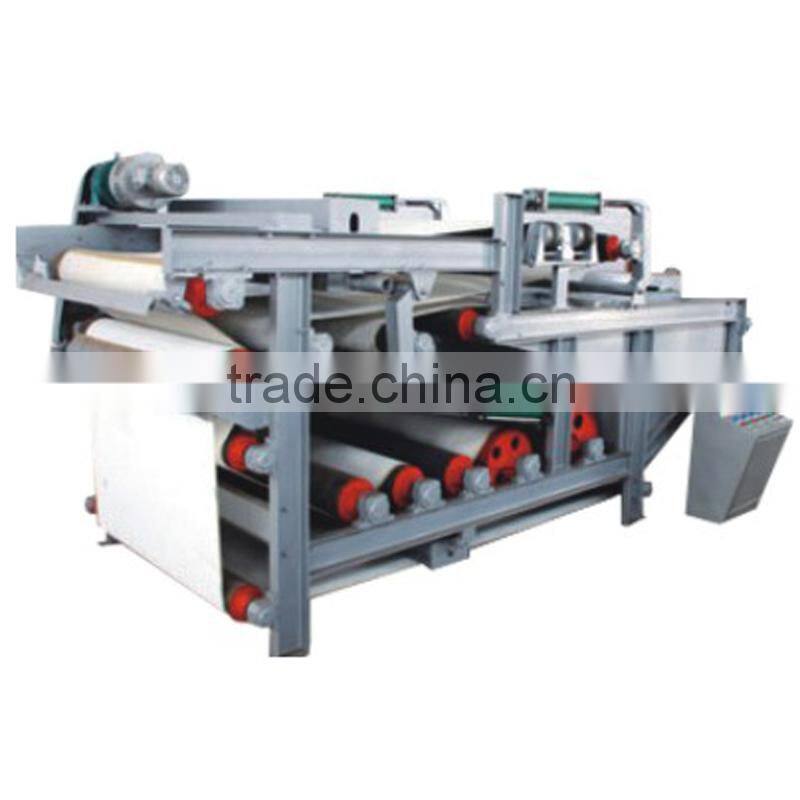

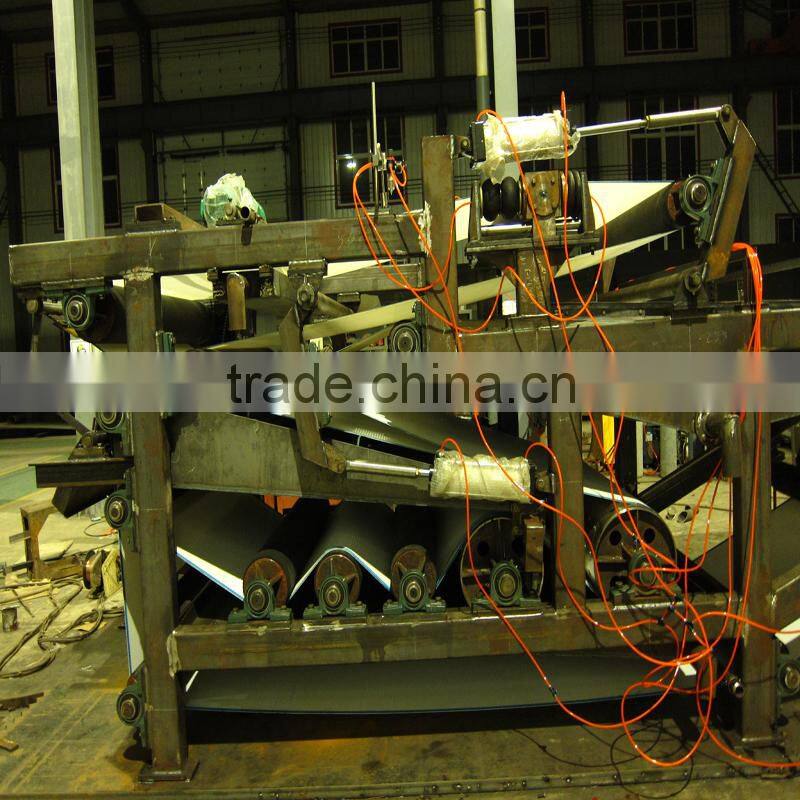

HD1500mm sludge dewatering machine in paper making industry
The equipment is used to concentrate mud in papermaking industry,municipal engineering and so on.
We will help you choose the reasonable dewatering machine and its feeding system and the control conditions of its auxiliary engine, according to your factory’s conditions, the amount and type of sludge.
HD sludge dewatering machine is used for concentration mud in papermaking industry, municipal engineering and so on.
Sludge dewatering machine (dehydrator) is mainly composed by the frame body, roller body, concrete processing equipment, dehydration roll, dehydration board, active roll, turning roller, adjustable partial roller, tension roller, drive, pneumatic device or manual device, the electric control device, blast device, joint water device, etc.
Advantage
a) Automatic operation
b) High aglomerate rate
c) Low polymer consumption
d) Easy operation and maintenance
e) High dewatering rate
f) Low power consumption
g) Low noise level
h) High Dryness and solid capture rate
i) Anti-abrasion and anti-corrosion protection,
j) Roller coated with thermoplastic polyamide (Degussa or Rilsan PA Powder)
k) Easy to dispose discharged solid cake.
l) Variable application
Sludge dewatering machine of paper service machinery
Specifications
Sludge dewatering machine
1.Large handling capacity
2.Widely application
3.High quality and resonable price
Working principle
It is Mainly used for pulp material inspissations washing and dirty mud dehydration , which is in four areas, namely gravity dehydration, wedge re-pressure dehydration, swing dehydration and shear dehydration.
- Gravity dehydration: Because of the high liquidity of liquid sludge, no compression capability, so the sludge get into the gravity dehydration area first. In this part it can remove the pretreated water, reduce the liquidity of sludge, make the floccules and granules come into being larger adhesion.
- Wedge re-pressure dehydration: The sludge comes into the phases to dehydration with mini pressure, and almost lose all of the liquidity.
- Swing dehydration: After the water of free water and floccules were removal mainly. Here comes the swing dehydration area. It improve the net belt tension gradually, through diameter’s change of the roller, and formed gradually dehydration area.
- Shear dehydration: When the mesh belt clip mud get into roller with smaller diameter, the squeeze power comes into being by filters tensile force put the shaped sludge into the two filters belt. Then dehydration by the shear power.
Sludge dewatering machine's parameter
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment. Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.
1.Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
2.After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
Providing life-long maintenance service;
