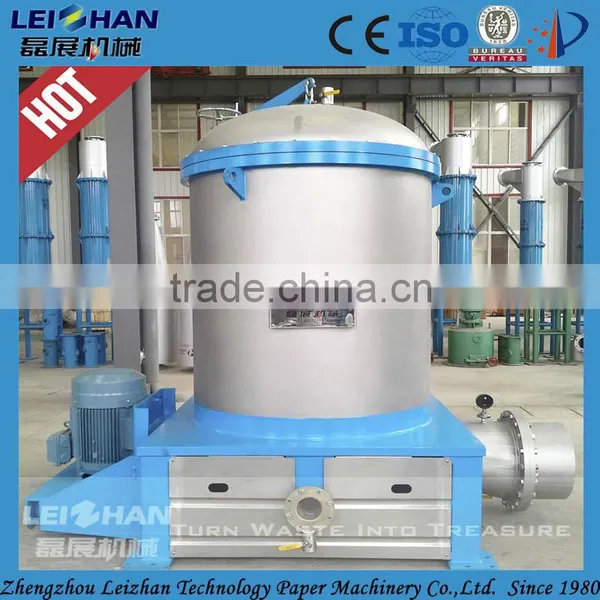

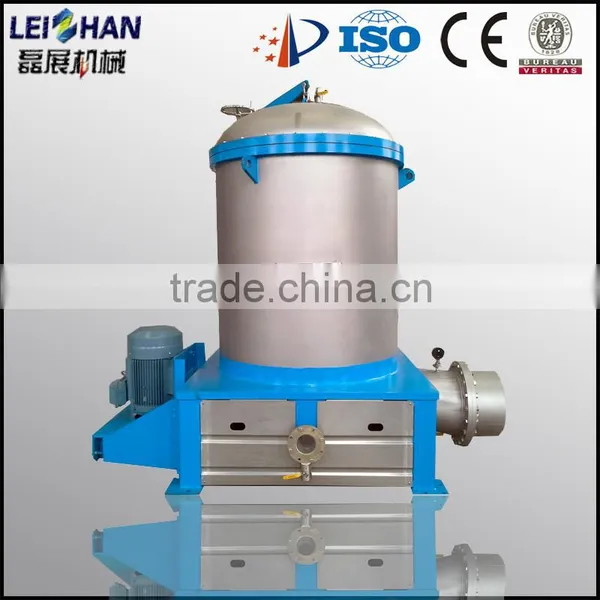

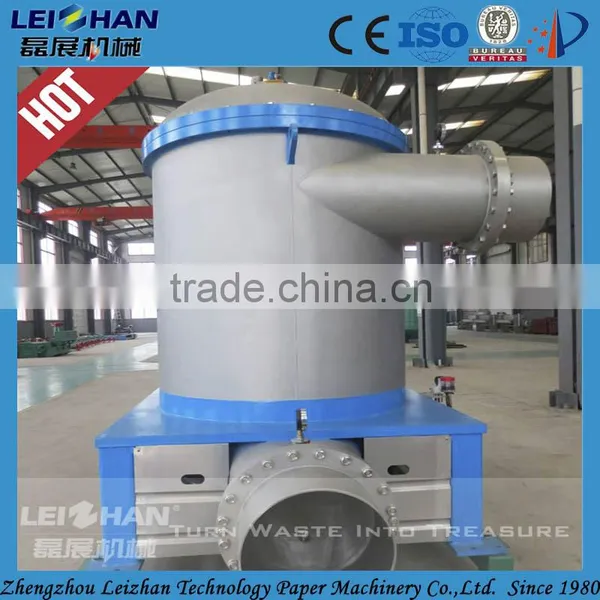

Inflow type pressure screen for pulp and paper machine
Application
Inflow type pressure screen for pulp and paper machine is an important machine in paper pulp making .
It is advanced paper pulp screening equipment in the modern world, which has great ability of
screening function and low pulse. It is widely used in the fine screening of wood pulp, straw pulp and
waste paper pulp, especially suitable as the net filter before paper machine.

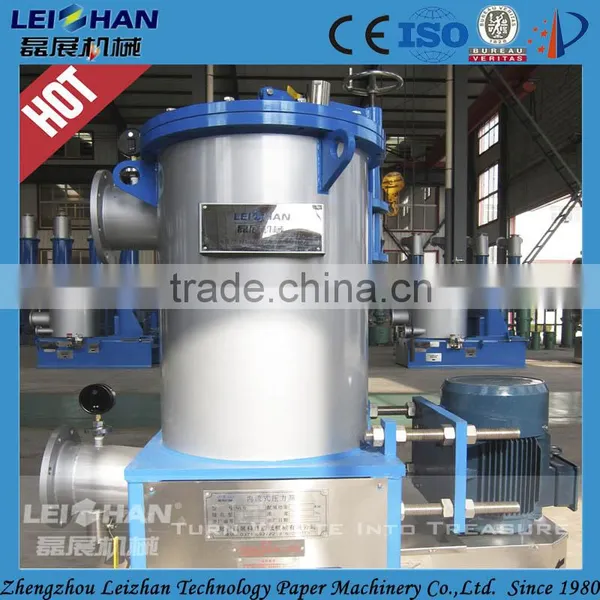

inflow pressure screen
Main features
1. Advanced structure, strong and durable, convenient dismounting, low energy consumption, high efficiency;
2. Easy operation, continuous work with less faults, lower maintenance cost;
3. Equipped with automatic lubricating device, reduce maintenance;
4. The sealing water flow automatic detection alarm device, ensure the safe operation of equipment;
5. Control interlocking system, ensure the service life of the equipment.
6. mainly used for fine screening of chemical pulp, waste paper pulp and the fine screening of all
kinds of paper pulp as the net filter before paper machines.
7. Rotor spins outside of sieve drum, heavy impurities flow away from the sieve drum, not
blocking
sieve seam, and sieve drum life is greatly increased.

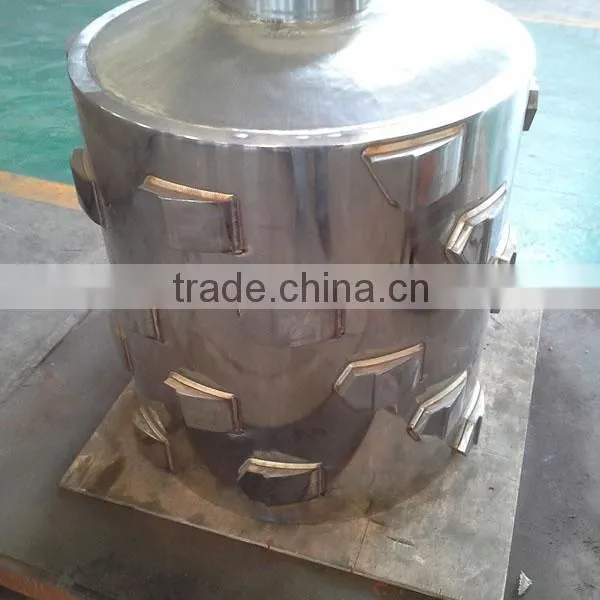

8. Streamlined rotor, pulp flows smoothly, low pulse
9. Good effect of impurities and fiber separation, not easy to jam sieve seam.
10. Used as the net screen, low pulse, high screening efficiency, reliable operation.
Main specification
Type |
NLS0.6 |
NSL1 |
NLS1.5 |
NLS2 |
NLS3 |
NLS4 |
NLS5 |
NLS6 |
NLS7 |
|
Screen area (m2) |
0.6 |
1 |
1.5 |
2 |
3 |
4 |
5 |
6 |
7 |
|
Concentration of Input Pulp(%) |
0.4-0.8 |
|||||||||
Product Capacity(t/d) |
Screen hole(t/d) |
30-60 |
70-130 |
110-160 |
140-260 |
250-400 |
260-520 |
350-600 |
420-700 |
500-900 |
Screen slot(t/d) |
25-45 |
55-80 |
80-120 |
100-160 |
150-300 |
180-320 |
220-400 |
260-480 |
350-600 |
|
Pressure of inflow pulp(Mpa) |
0.1-0.4 |
|||||||||
Motor power (kw) |
7.5-15 |
22 |
30 |
37 |
45 |
55 |
75 |
90 |
110 |
|

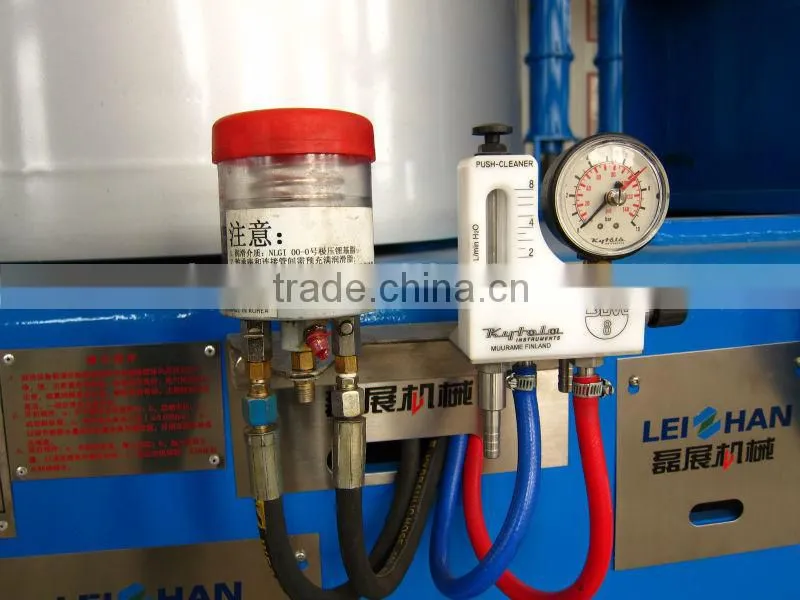

Imported Auto oil injection device from South Korea & Flow meter from Finland
Competitive advantages of our pressure screen
1.Over 30 years production experience,we are specializing in making all kinds of paper machines and pulp equipments.
2.20000 square meters workshop with more than 200 staffs including 50 engineers will be your best support and specialize in making all kinds of paper recycling machines.
3.Full technical support:we will provide the foundation drawings of the machine and installation support.
4.ISO9001:2000 and BV certification.
5.Strict quality control of every procedure,full guarantee of the quality of every single packaging.
pressure screen Working site
Delivery site
1.Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
2.After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment. Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.
Factory show
Workshop
Customers visit our factory
Exhibitions
Paper making production lines we can provide
Waste paper pulp machine production line
Automatic corrugated box production line
Corrugated paper making production line
Fluting paper pulp making production line
Coated White Board Paper production line
Honeycomb Paper making production line
testliner paper making production line
Paper plate making production line
tissue paper making production line
toilet paper making machine line
kraft paper making machine line
boxboard paper machine line
Paper coating machine line
Napkin paper machine line
OCC line
Welcome to visit our factory. Any questions, contact us please!
What do you offer?
A: We can offer the whole pulp and paper production line. From factory design to machine installation and training, our company can supply for you all.
Are your a manufacturer?
A: Yes. Of course we are. We are spealized in pulp & paper equipment manufacturing in China for more than 30 years. There are about 50 paper mills near our factory and most of them are using our machines. So, welcome to visit our factory and I believe you will be satisfied with our products.
What's your advantages?
A: We have more than 30 years experience in the field of papermaking industry.
20000 square meters workshop with more than 200 staffs including 50 engineers.
ISO9001:2000 and BV certification.
Strict quality control of every procedure.
