Paper recycling plant Fractionating screen/ paper pulp egg tray machine
1.Usage:
Hot sale paper production pulp machine/pressure screen is used to screen waste paper pulp and washed pulp,wood pulp,and also can be used as thermal screening equipment in paper egg tray production line.
2.Features:
With many rotor blades,no winding,highly effeicient rotary rotor,high-frequency pilse,Specially used for coarse and fine screening of various recycled pulp.
3.Main specification:
Type |
NLS0.6 |
NLS1 |
NLS1.5 |
NLS2 |
NLS3 |
NLS4 |
NLS5 |
NLS6 |
NLS7 |
Screen Area(m²) |
0.6 |
1 |
1.5 |
2 |
3 |
4 |
5 |
6 |
7 |
Consistency(%) |
0.4-0.8 |
||||||||
Capacity of Screen Hole(t/d) |
30-60 |
70-130 |
110-160 |
140-260 |
250-400 |
260-520 |
350-600 |
420-700 |
500-900 |
Capacity of Screen slot(t/d) |
25-45 |
55-80 |
80-120 |
100-160 |
150-300 |
180-320 |
220-400 |
260-480 |
350-600 |
Pressure of inflow pulp(Mpa) |
0.1-0.4 |
||||||||
Motor power(kw) |
7.5-15 |
22 |
30 |
37 |
45 |
55 |
75 |
90 |
110 |

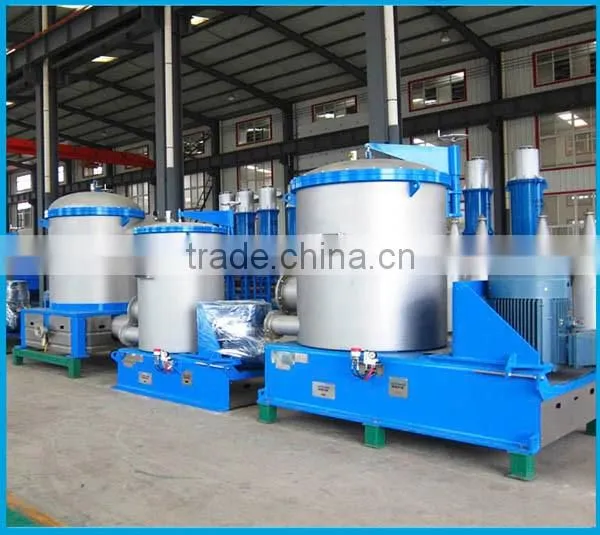

4.Workshop finished product

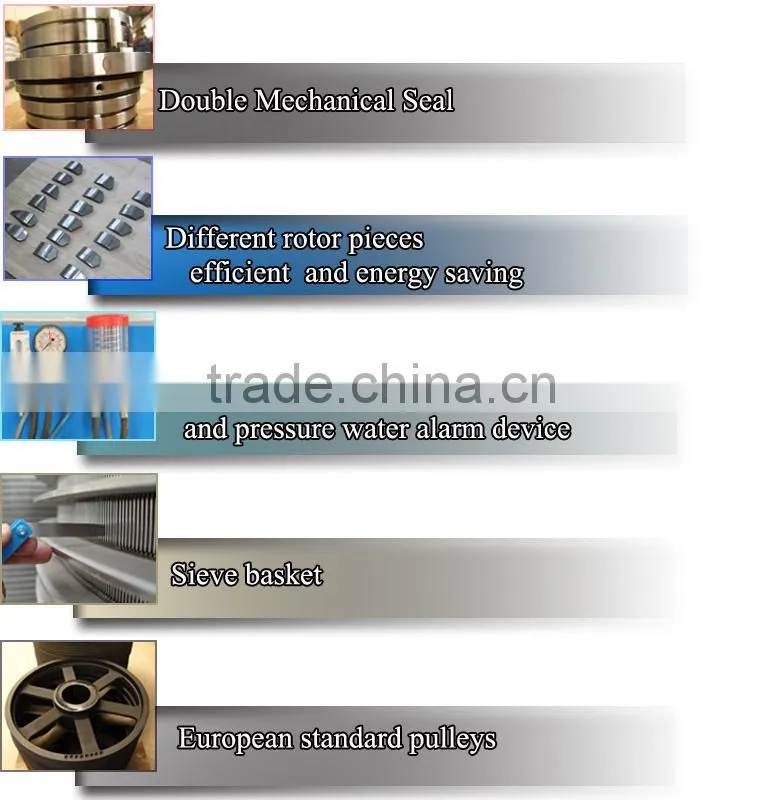

Details

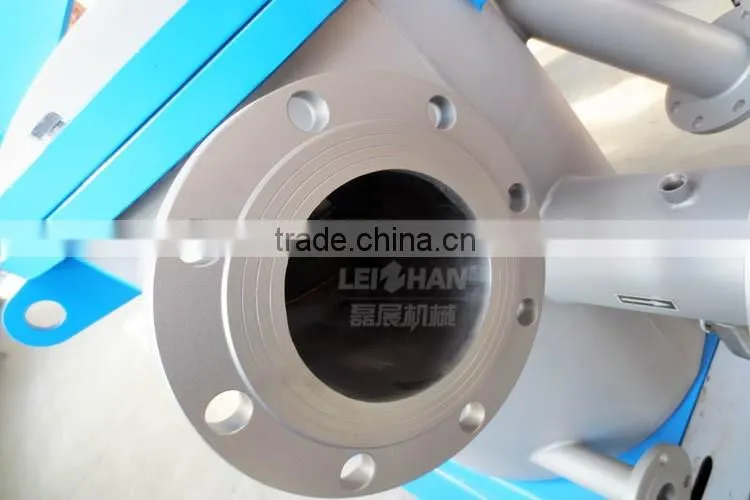

Inlet hole
Customers visiting
Delivery site
Give you our best !
♥.Pre-sale services: perfect technical design for you
We provide you with perfect prophase plan, process flow design and practical equipment on the basis of your condition.
♥.After-sale services: overseas service provided
It have been our tenet that we should provide the best to our customers. So we have engineers overseas for the installation and maintenance.
Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.
Factory show
Exhibition
Paper making production lines we can provide
Waste paper pulp machine production line
Automatic corrugated box production line
Corrugated paper making production line
Fluting paper pulp making production line
Coated White Board Paper production line
Honeycomb Paper making production line
testliner paper making production line
Paper plate making production line
tissue paper making production line
toilet paper making machine line
kraft paper making machine line
boxboard paper machine line
Paper coating machine line
Napkin paper machine line
OCC line
What certifications do you have?
A: Our equipment have ISO9001, CE, BV and TUV certifications.
Do you have engineers available overseas ?
A: Yes. Of course we have. Customers are the first, we have professinal engineers overseas to help customers in project establishing process.
What's your advantages?
A: We have more than 30 years experience in the field of papermaking industry.
20000 square meters workshop with more than 200 staffs including 50 engineers.
You are always welcome to contact with us or visit our company ! Have any question, contact with me now !
