Home > Products > Screening Equipment > Professional paper pulp production line/ pulp making equipment pressure screen
Professional paper pulp production line/ pulp making equipment pressure screen
- 100 Set / Sets per Month
- Shanghai Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Waste paper pulp processing pressure screen
- Waste paper processing screen and kraft paper manufacturing machine
- Waste paper processing pressure screen machine / paper manufacturing machine factory
- Top Quality Pressure Screen For Sale/ Pressure Screen Price
- Small paper plant pulping equipment, wood pulp making machinery
- Paper pulp fractionating screen / egg tray machine production line machine
Product Details
Condition: | New | Type: | Pulping Equipment | Computerized: | Yes |
Place of Origin: | Henan, China | Brand Name: | Leizhan | Model Number: | ZNS |
Voltage: | 380v | Power(W): | up to each model | Dimension(L*W*H): | up to each model |
Weight: | up to each model | Certification: | ISO, BV certification | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard package : Wooden case or as your request.
Product Description
Professional paper pulp production line/ pulp making equipment pressure screen
Pressure screen under the rotating function of drum sieve and rotating cylinder and centrifugation effect. The machine will separate the qualified pulp and non-qualified pulp.It consist of cylinder, cylinder cover, sieve drum, rotary cylinder,base and transmission parts, etc.
2.Technical specification:
Screen area(m²) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 2 | 3 | 4 |
Screen hole size(mm) | φ1.6-φ3.5 | |||||||
Screen seam size(mm) | 0.10-0.55 | |||||||
Production capacity( t/d) | 50-80 | 90-160 | 135-250 | 180-320 | 200-380 | 260-500 | 400-700 | 500-1000 |
30-50 | 60-100 | 90-150 | 120-190 | 140-230 | 200-300 | 300-450 | 350-730 | |
Inlet pulp consistency(%) | 1.5-4 | |||||||
Motor power(Kw) | 22-55 | 30-75 | 37-90 | 45-110 | 55-132 | 75-160 | 90-220 | 132-280 |
The detail of pressure screen
Working principles
Pulp which comes from high density cleaner can be screened in relatively high concentration. Mid consistency energysaving pressure screen is advanced paper pulp screening equipment in contemporary international world,it is the new generation paper pulp screening equipment researched and developed by our company with absorbing international advanced technology. It has strong adaptability, energy saving, water saving and high production efficiency etc.
Pressure screen's body
Working site
Leizhan paper pulp making machine factory also produce other equipment as below:
1.Chain conveyor
2.Hydra-pulper, D-type hydra-puler, Drum type hydra-pulper
3.High density de-slagging machine
4.Vibrating screen, mid consistency pressure screen, paper machine pressure screen, UV-flow pressure screen, inflow pressure screen,external flow pressure screen, center section energy saving
pressure screen,fiber fractionating screen,light rejects screen,double drum pressure screen, coarse screen , fine pulp screen etc.
5.PZ series reject separator, Single-effect separating machine,, single fiber separating machine etc.
6.Pulp pump
7.Double disc refiner, high taper fine grinding machine, double disc pulp-grinding machine, conical refiner etc.
8.High taper helical propeller, square pulp pool stirrer
9.Other paper recycling machines such as grapple, cutter,drum unpacker., disc thickener, sludge dewatering machine etc.
10.Reasonable waste paper pulp making line/OCC line/paper recycling machine price.
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment. Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.
Factory show
Workshop

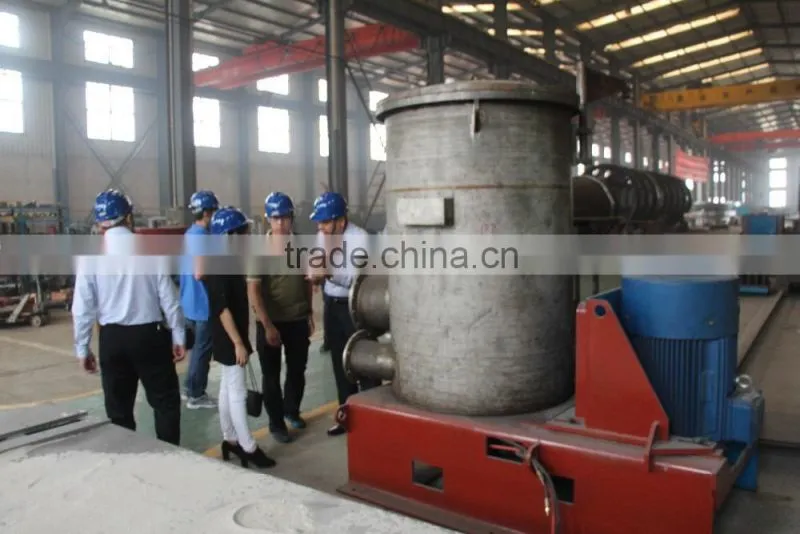

Customers visit our factory
Exhibitions
Main products for paper pulp making
Paper making production lines we can provide
Waste paper pulp machine production line
Automatic corrugated box production line
Corrugated paper making production line
Fluting paper pulp making production line
Coated White Board Paper production line
Honeycomb Paper making production line
testliner paper making production line
Paper plate making production line
tissue paper making production line
toilet paper making machine line
kraft paper making machine line
boxboard paper machine line
Paper coating machine line
Napkin paper machine line
OCC line
Welcome to visit our factory. Any questions, contact us please!
Company Profile
Zhengzhou Leizhan Technology Paper making machinery Co.,Ltd is a professional manufacturer of pulp and papermaking equipments, which engaged in research and development, manufacture and sale, now has successfully developed the marketable high consitency pressure screen, inflow pressure screen and D type Hydrapulper, and become the leader manufaturer in this area for the domestic market.
This company is located in Zhengzhou City, Henan Provice, covering 40 thousand square meters. It has total assets of 50 million, over 200 employees including 10 senior engineers. This company has been certified for State ISO9001 Quality System Certification and owns 14 patents. Leizhan is designed with low carbon enviromental protaction, pays more attention to the international technical cummunication and cooperation, The main series of the products are waste paper delivery, waste paper bale breaking and screening, waste paper pulping, heavy slag cleaning, screening, deinking, concentration, heat dispersion, pulping, mixing and pulp conveying etc.
Leizhan has processing and testing equipment like CNC cutting machine, sand blasting system, vertical and horizontal CNC lathe, planer milling machine, vertical boring machine, automatic continuous welding machine, CNC bending machine, CNC shearing machine, veneer reeling machine, 1200 tons of press machine, high speed dynamic balance correction machine, assembly test table etc.
By more than 30 year's development, facing the new market condition and competition, we will improve and strengthen our brand strategy continuously, regard quality and service as the foundation of long-run development, by implementing the innovation of technology and management, based on pulper equipment, we strive forward to the international stage actively.
