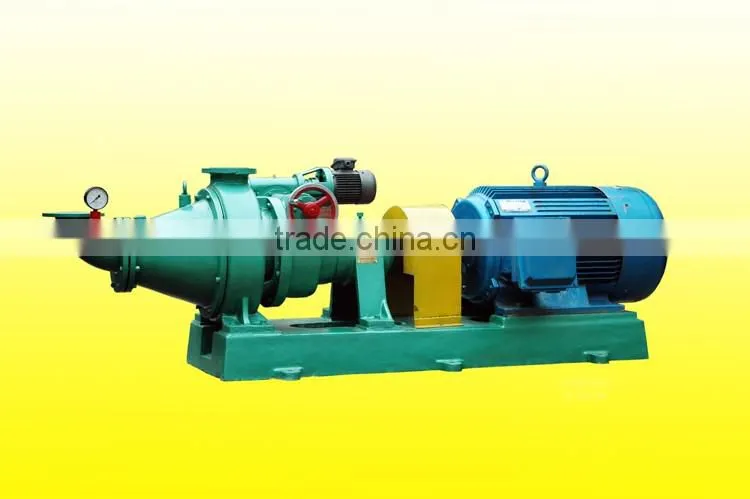

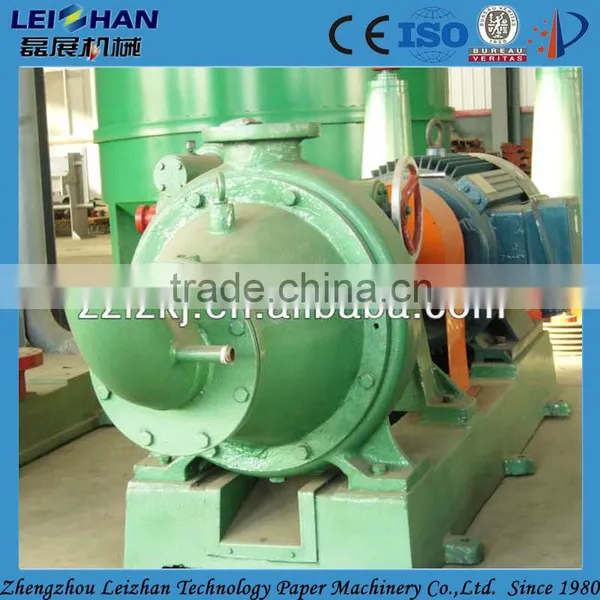

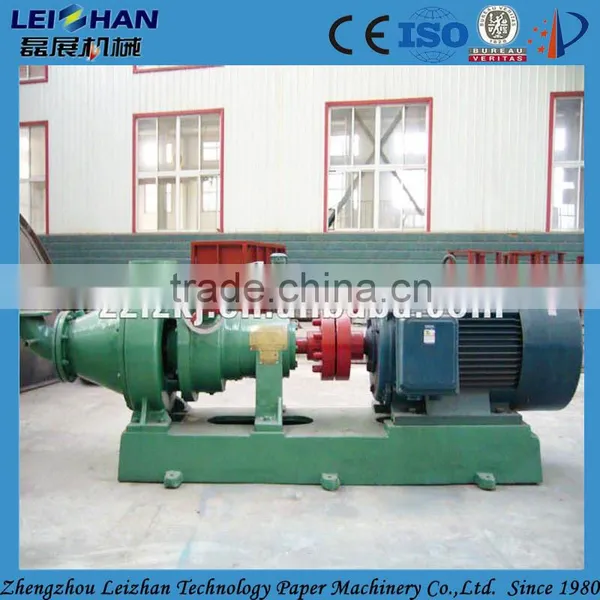

Refining type wood pulp equipment, machine in virgin pulp line
Application
Refining type wood pulp equipment, machine in virgin pulp line is our digestion and absorption of foreign advanced technology and developed a new type of beating equipment, the main differences in the structure of the refiner and generally conical refiner is moving and stationary ring gear taper (to 40°).
Pulp refiner is mainly used in purified pulp continuous beating and waste paper pulp beating in paper making industry, and it is available for pulping long fiber pulp materials,such as cotton pulp,wood pulp and hemp pulp. It can be used with double disc refiners,but with conical refiners and also can be used alone.
Main specifications
Type |
ZM450 |
ZM460 |
Seize of rotor(mm) |
Φ450 |
Φ460 |
Operation concentration(%) |
3-5 |
3-5 |
Product capacity(t/d) |
20-60 |
30-150 |
Motor power(Kw) |
110 |
132-315 |
Customers
Advantages
1. New design,resonable structure,high yield and good quality.
2. Large capacity, high beating efficiency, low energy consumption.
3. Pumping effect of the refining zone is longer, the centrifugal force generated is smaller, and thus the fiber in the longer stay time of the refining zone, the fiber by refining the role of increased frequency of the stator refining area, while receipt of refining the role of fiber number, fiber processing of more uniform.
4. The conical grinding motor, the size of the fixed ring gear is small, compact structure; the dynamic side of the ring gear size larger diameter, the move given the gap between the ring gear are better than the centrifugal acceleration of the plasma flow, so fiber driven deep and wide ring gear grinding machine has strong tear, broom and fine fibers on the paper fibers.
34 years experience, we are more professional!
1. International package (Wooden case, carbon cast and pallet);
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation and some small parts can be transported by air
Note: Details follow contract.
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment. Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.

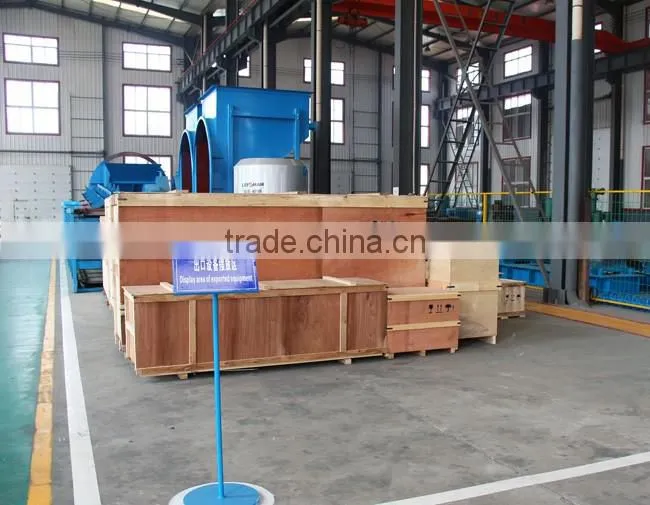

Factory show
Workshop
Customers visit our factory
Exhibitions
Give you our best !
♥.Pre-sale services: perfect technical design for you
We provide you with perfect prophase plan, process flow design and practical equipment on the basis of your condition.
♥.After-sale services: overseas service provided
It have been our tenet that we should provide the best to our customers. So we have engineers overseas for the installation and maintenance.
What certifications do you have?
A: Our equipment have ISO9001, CE, BV and TUV certifications.
Do you have engineers available overseas ?
A: Yes. Of course we have. Customers are the first, we have professinal engineers overseas to help customers in project establishing process.
What's your advantages?
A: We have more than 30 years experience in the field of papermaking industry.
20000 square meters workshop with more than 200 staffs including 50 engineers.
You are always welcome to contact with us or visit our company ! Have any question, contact with me now !
