High quality high consistency hydrapulper in pulp making

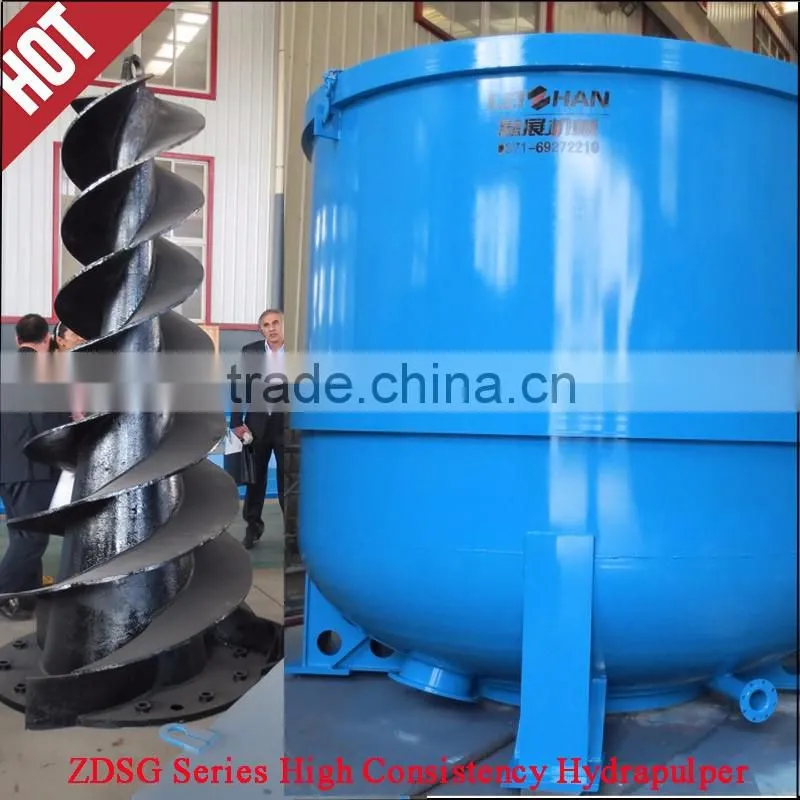

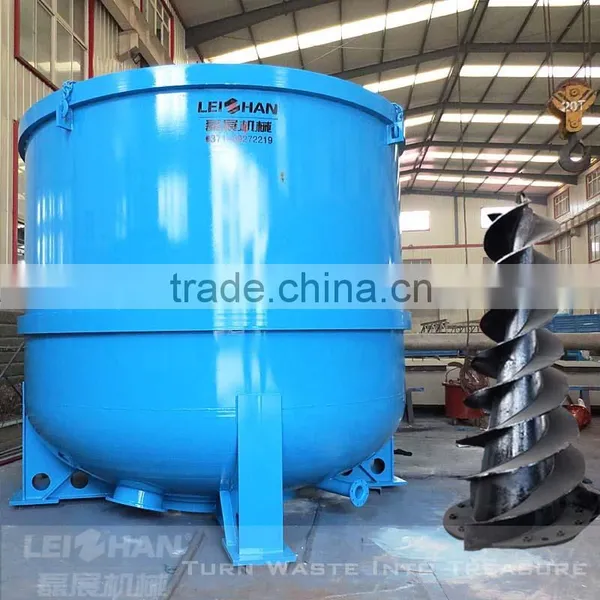

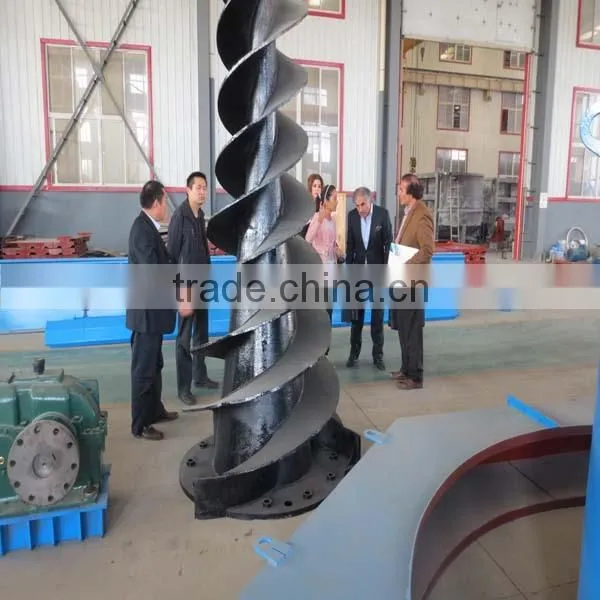

High consistency hydrapulper is used for breaking the waste paper in high consistency. The rotor combines triple-flighted and dentiform fly bar and produces intense fiber-to-fiber friction, so it can speed defibering of the waste paper.
Application & Features
1. Mainly used for separating waste paper and ink under high consistency in waste paper deinking process.
2. Special spiral rotor effectively promote the circulation and rollover of pulp, reinforce friction between fibers. Finally achieve gentle pulp under high consistency, impurities will not be broke in the process of fiber relief and deinking.
3. Dealing with 12%-18% high consistency pulp, effective chemical mixture and friction between fibers under high consistency make the ink particle separate from the surface of fiber fully.
4.Compact structure, convenient operation and maintenance.
Main Specification
| Type | ZDSG5 | ZDSG10 | ZDSG15 | ZDSG20 |
| Volume(m3) | 5 | 10 | 15 | 20 |
| Consistency(%) | 10-15 | |||
| Processing Capacity(t/d) | 20-25 | 40-50 | 60-70 | 80-100 |
| Motor power(Kw) | 110 | 220 | 315 | 400 |
| Type | ZDSG25 | ZDSG30 | ZDSG35 |
| Volume(m3) | 25 | 30 | 35 |
| Consistency(%) | 10-15 | ||
| Processing Capacity(t/d) | 130-185 | 160-225 | 185-260 |
| Motor power(Kw) | 450 | 500 | 560 |
Work Principle
ZDSG high consistency Hydrapulper is designed with the principle of hydraulic whirlpool. The rotors are structure that double-headed screw combination with knife. when the rotor rotates, the high concentration slurry do radial circular motion, make waste paper hydration and defibering accelerate. During the work, the waste paper are always in a high concentration to defibering, thus contributing to the friction between the fibers, to make the ink ion with chemical additives and fiber separation easily, to achieve the purposes to recycling. In addition, the impeller of rotor are oblique spirochete, the shear effect is weak, only divestitures the impurity in the waste paper, and it will not form of small flakes, so it create favorable conditions for pulp screening. The structural design of novel pulping at high concentrations, has the characteristics of water-saving, energy saving, small footprint, is an ideal equipment for waste paper recycling.
---About Leizhan
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment.
Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support.
---Trading Nation
We have exported to many foreign countries,for example, Russia, Egypt, Iran, Argentina, Uzbekistan, Turkmenistan, Burma, Vietnam, Pakistan etc. And we are looking forward to establish cooperation relationship with friends all around the world.We warmly welcome you on-the-spot investigation!
Leizhan focuses on research and development of advanced technology and customer-oriented products as well as building up core competitiveness to makes paper pulp machinery a pioneer of the industry.
We have many patents of pulping equipment,like impurity separator, high and low density cleaner,grapple,pressure screen and so on.
Acceptance standard
- Unless stipulated in the technical documents accordingly, technology acceptance standards of designed main parts are in accordance with relevant state departments issued current relevant standards.
- providing main parts technology acceptance standard of technical design.
Technical service
- During paper machine installation, We cooperate with buyer for technological improvement to reach desired results.
- We explains paper machine performance, structure and operation to buyer related people for free.
Quality guaranteed
- We makes sure paper machine achieve promised performance with correct installation, commissioning, normal operation and maintenance.
- In warranty period, for quality problem, we repair and replace defective parts for free(except quick-wear part).
Welcome to visit us, we are located in Zhengzhou city, Henan province, We will pick you up at air port.
