Specifications
1. Automatic screen printing.2. Automatic flame treatment.
3. Automatic UV curing.
4. Automatic loading and unloading.

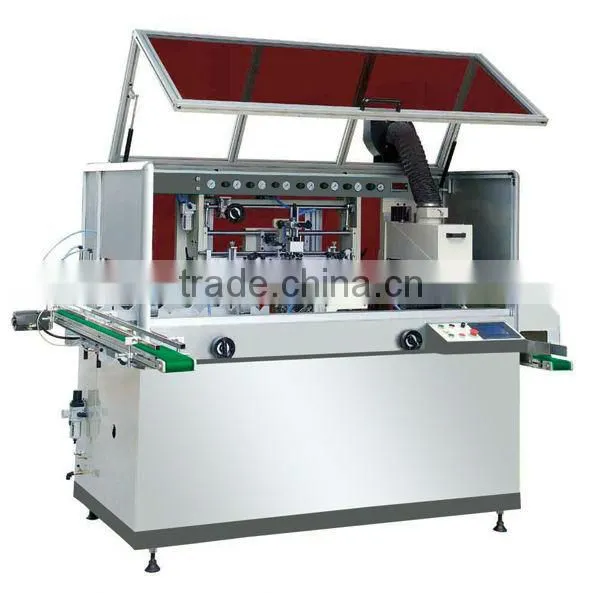

Automatic Screen Printing System JN-B120UVCS
The Automatic Screen Printing Machine JN-B120UVCS is specially designed for printing glass cement bottle. Individual onloading system ensure high printing efficiency. It can also print other containers by changing using other fixtures. Easy operation make it a best general printing system solution to reduce the manual labor and hence improve the production efficiency. Reliability and speed make the JN-B120UVCS ideal for off-line or in-line production.
Features:
1. There is a printer line make up by one main printer and sub printer.
2. The machine is specialized design for print the round and oval bottles, with easy operation and stable.
3. Feeding machine can load product to the screen printing machine automatically...Fully automatic feeding, flame treatment, UV screen printing and UV curing.
4. It is mechanical conveyer, touch control panel operation, easy to operation the machine. Fast adjustment, easy operation. Fast printing, speed: 4000PC/hr
5. Fully automatic, the machine will alarm without product loading and no printing without product. It can save energy
6. All components and control system are from Germany and Japan, guarantee the quality of the print.
7. It is suitable for print round/oval product printing such as the cosmetic bottles, drink bottles, cans ect
Specification:
| product surface | Round |
| Max speed | 3600pcs/hr |
| Max length of printing | 300mm |
| Max wide of printing | 250mm |
| Print size | Diameter: Φ 40-60mm |
| Length: 180-300mm | |
| UV lamp voltage | 4Kw/unit |
| Air supply | 6Bar |
| Power supply | AC380V 3Phase 50Hz |
