Waste paper destroy machine for waste paper pulper system
- 50 Set / Sets per Month
- Shanghai Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Paper pulp making machine for Recycle paper cup making machine
- Pulping equipment , wood pulp machinery for paper making
- Waste carton recycling machine , carton shredder machine
- Paper industrial machine for kraft paper making/ drum pulp machine with good price
- Machine for waste paper making/ drum pulper for toilet paper/ paper pulp making
- Toilet paper pulp making equipment hydrapulper with good quality
Product Details
Condition: | New | Type: | Other, Pulping Equipment, D type hydrapulper | Computerized: | Yes |
Place of Origin: | Henan, China | Brand Name: | Leizhan | Model Number: | ZDSD |
Voltage: | 380v | Power(W): | up to each model | Dimension(L*W*H): | up to each model |
Weight: | up to each model | Certification: | ISO & BV certification | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
paper machine hydrapulper Wooden case forChina supplier patented paper machine hydrapulper price or as your requirements.
Product Description

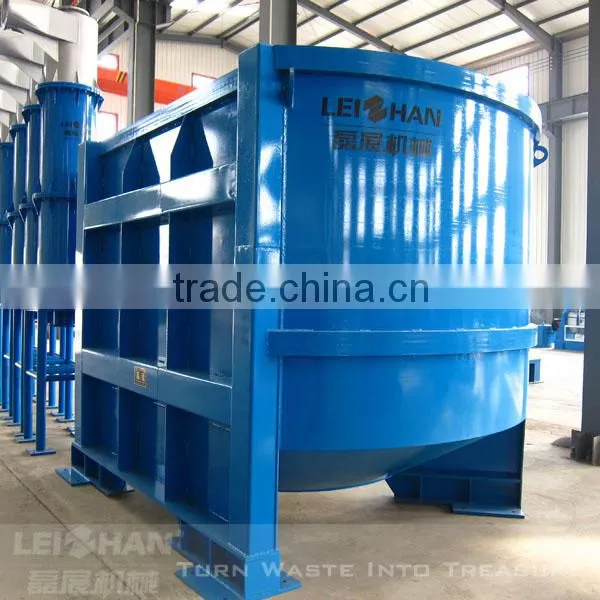

Waste paper destroy machine for waste paper pulper system
Introduction
1.Waste paper destroy machine for waste paper pulper system adopts D type structure, which improves work efficiency.
2. It can be used for pulping waste paper & wet strengh paper such as waste carton box.
3. D Type Hydrapulper is mainly used to crushing pulp board, waste paper, deinking, and pulp purification.
STRUCTURE
This paper pulp machine consists of tank, pulper rotor, landing leg, driving device and motor ,ect.
Features
1. Pulper rotor off -center position, so that the waste paper could touch the rotor more quick, higher frequency.
2. The tank is made by welded steel,outside of mouth is ultra high strength steel,which used to strengthen tank, in the bottom of cone have deflector, which can make the paper pulp reflux circulating. In the bottom of tank is impurity discharge outlet.
D Type Hydrapulper paper pulp machine
Model | ZDSD23 | ZDSD24 | ZDSD25 | ZDSD26 | ZDSD27 | ZDSD28 | ZDSD29 | ZDSD30 | ZDSD31 | ZDSD 32 |
Volume(m3) | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
Concentration (%) | 3-5 | |||||||||
Capacity(t/d) | 30-50 | 40-90 | 80-120 | 140-180 | 180-230 | 230-280 | 270-320 | 300-370 | 350-400 | 400-450 |
Motor Power(Kw) | 75 | 110 | 160 | 185 | 220 | 280 | 315 | 355 | 400 | 450 |
This machine can promptly crushing waste paper, with large capacity, low power consumption, and saving vapour medication. And it is easy to maintain, with long service life, low noise, and the vibration is not strong, in stable operation, also it can save energy.
35 years experience, we are more professional!
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation.
Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.
Factory show
Exhibition
What do you offer?
A: We can offer the whole pulp and paper production line. From factory design to machine installation and training, our company can supply for you all.
Are your a manufacturer?
A: Yes. Of course we are. We are spealized in pulp & paper equipment manufacturing in China for more than 30 years. There are about 50 paper mills near our factory and most of them are using our machines. So, welcome to visit our factory and I believe you will be satisfied with our products.
What's your advantages?
A: We have more than 30 years experience in the field of papermaking industry.
20000 square meters workshop with more than 200 staffs including 50 engineers.
ISO9001:2000 and BV certification.
Strict quality control of every procedure.
Company Profile
Zhengzhou Leizhan Technology Paper making machinery Co.,Ltd is a professional manufacturer of pulp and papermaking equipments, which engaged in research and development, manufacture and sale, now has successfully developed the marketable high consitency pressure screen, inflow pressure screen and D type Hydrapulper, and become the leader manufaturer in this area for the domestic market.
This company is located in Zhengzhou City, Henan Provice, covering 40 thousand square meters. It has total assets of 50 million, over 200 employees including 10 senior engineers. This company has been certified for State ISO9001 Quality System Certification and owns 14 patents. Leizhan is designed with low carbon enviromental protaction, pays more attention to the international technical cummunication and cooperation, The main series of the products are waste paper delivery, waste paper bale breaking and screening, waste paper pulping, heavy slag cleaning, screening, deinking, concentration, heat dispersion, pulping, mixing and pulp conveying etc.
Leizhan has processing and testing equipment like CNC cutting machine, sand blasting system, vertical and horizontal CNC lathe, planer milling machine, vertical boring machine, automatic continuous welding machine, CNC bending machine, CNC shearing machine, veneer reeling machine, 1200 tons of press machine, high speed dynamic balance correction machine, assembly test table etc.
By more than 30 year's development, facing the new market condition and competition, we will improve and strengthen our brand strategy continuously, regard quality and service as the foundation of long-run development, by implementing the innovation of technology and management, based on pulper equipment, we strive forward to the international stage actively.
