Engineers available to service machinery drum pulper made in China
- 100 Set / Sets per Month
- Qingdao Shanghai Tianjin
- T/T L/C D/P D/A Credit Card PayPal
-
Hot sale paper pulp making machine drum pulper made in China
-
High density hydrapulper/ Waste paper destroy machine for cardboard recycling
-
High quality hydrapulper machine for sale/ paper machine hydrapulper price
-
Hydrapulper for paper pulp/ paper mill use hydrapulper machine for paper making
-
Leizhan paper machine manufacture supply D type hydrapulper
-
D type paper machine hydrapulper from Leizhan
Product Details
| Condition: | New | Type: | Other, hydrapulper | Computerized: | Yes |
| Place of Origin: | Henan, China | Brand Name: | LeiZhan | Model Number: | ZG series |
| Voltage: | 380V | Power(W): | 132-1400kw | Dimension(L*W*H): | several meters long |
| Weight: | more than one ton | Certification: | BV/ISO | Warranty: | one year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
To be packed in strong and sound seaworthy packing capable of standing tropical climatic conditions.
We also respect your demands in packing terms and details.
Additional sea & air worthy export packaging will be available if required, at additional costs.
Product Description

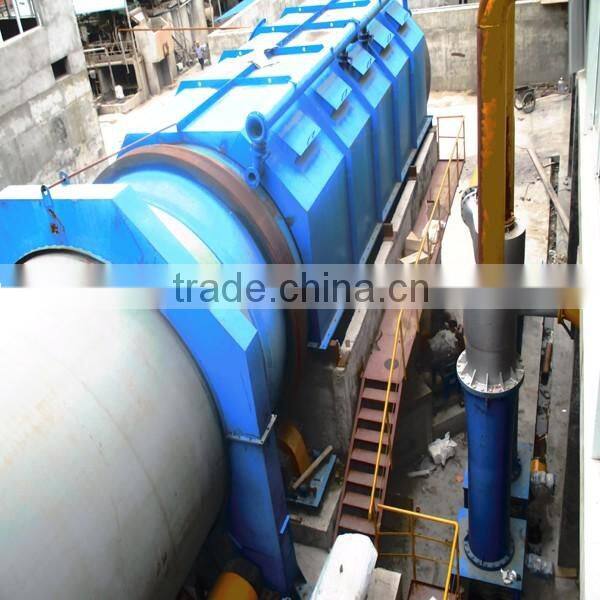

Engineers available to service machinery drum pulper made in China
Main technical parameters:

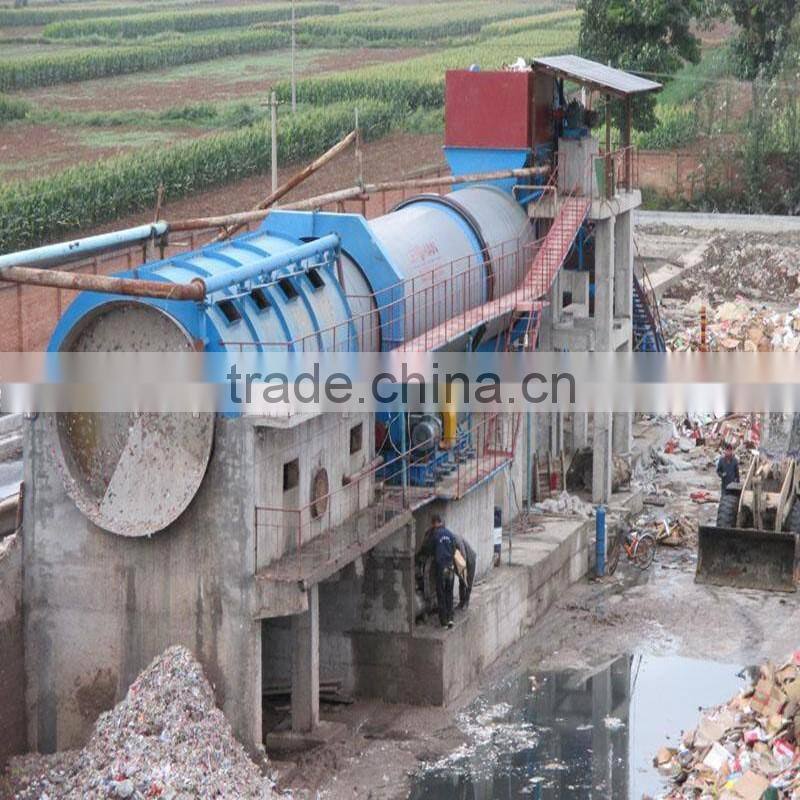

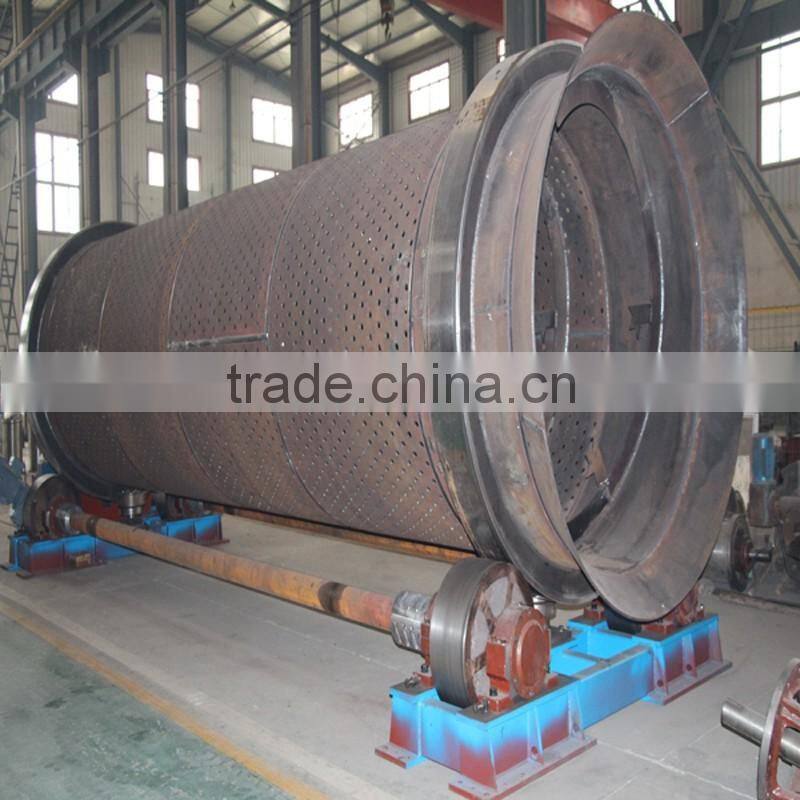

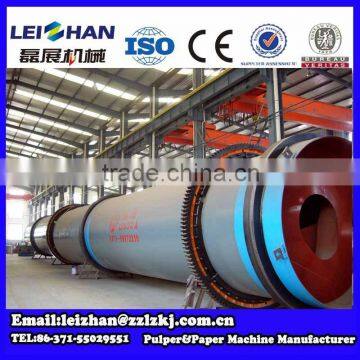

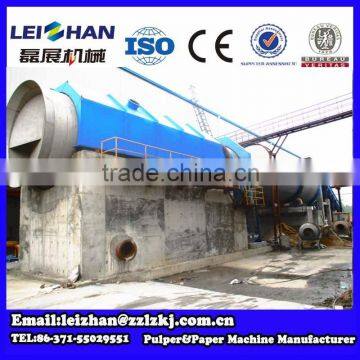

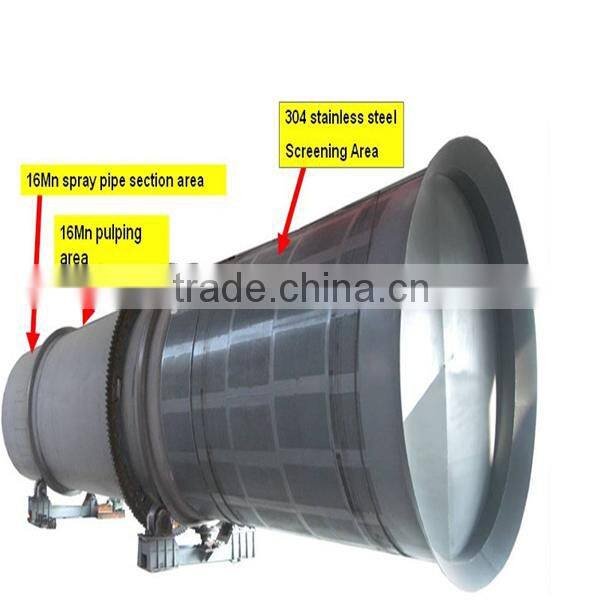

Drum pulper for paper pulp stock is a new cylinder continuous pulping equipment. Before the area solutions for high-consistency pulping area, after the district for the screening area.

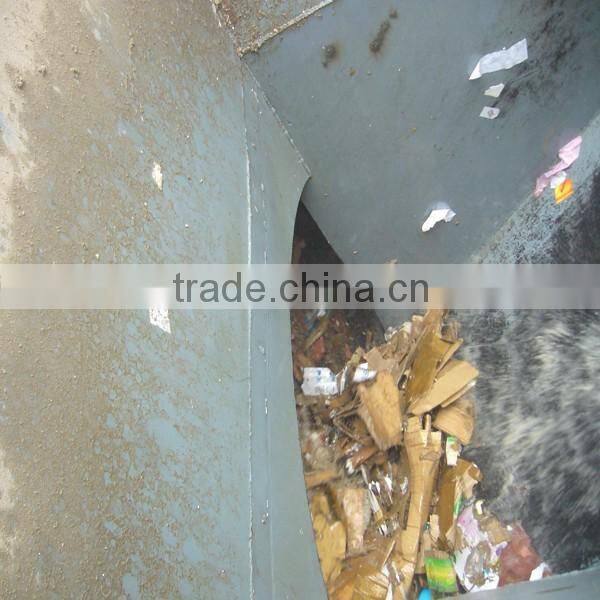

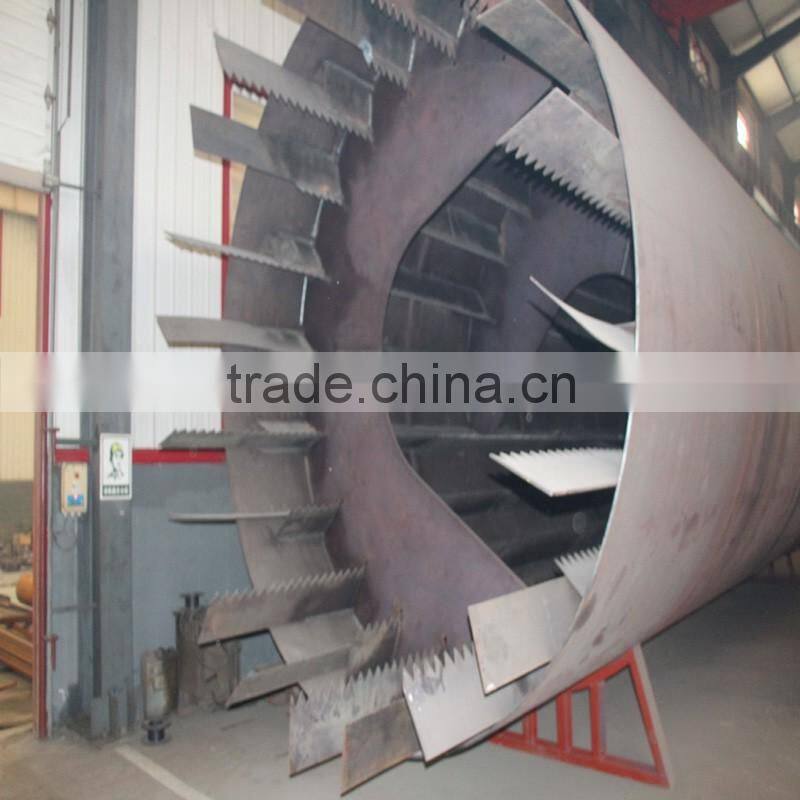

The high concentration of pulping area, waste paper is broken in the 14-18% concentration solution. Axial partitions on the cylinder wall, repeat the waste paper with up and drop the bottom of the cylinder, resulting in a moderate shear force and friction, so that the ink particles in the waste paper, plastic materials and hot melt adhesives and other substances from loose down the fiber.

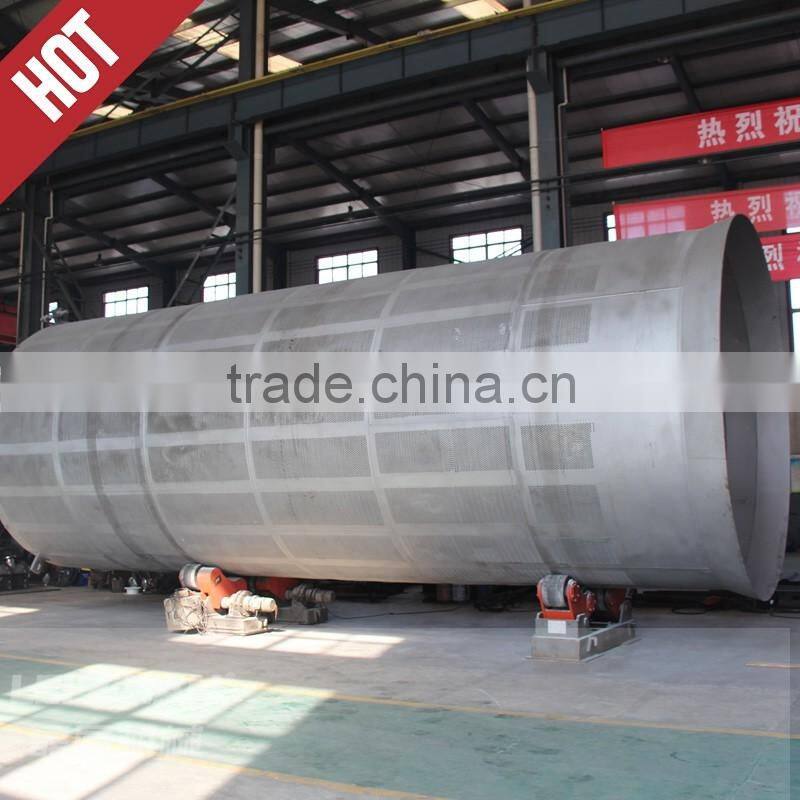

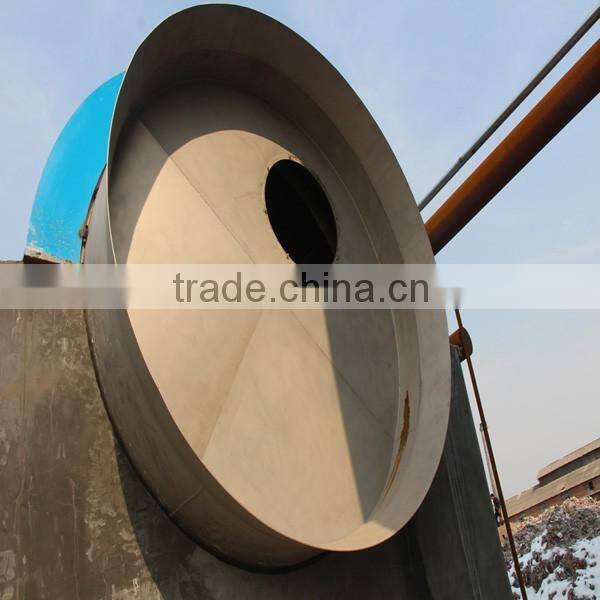

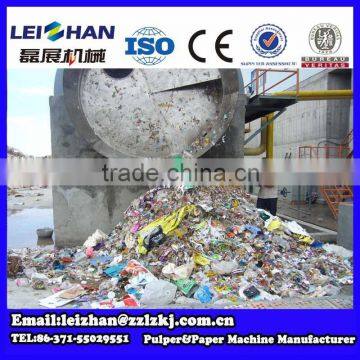

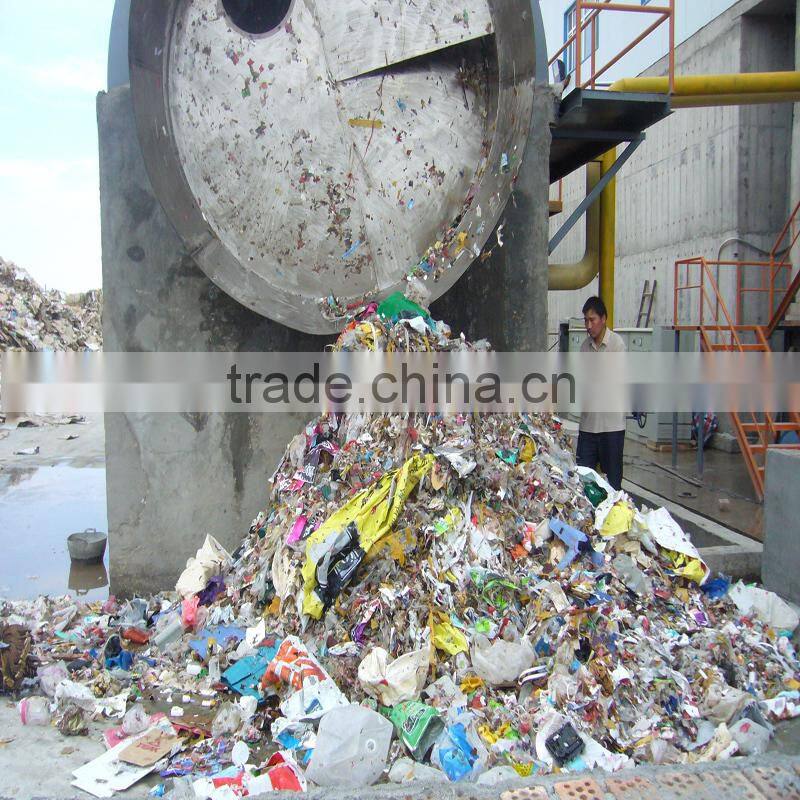

The rear area of the cylinder dilution screening area, the slurry solution was broken to 3-5% concentration filter, good slurry into the slurry tank, and residue from the cylinder end of discharge. paper pulper machine
pulper machine
Type | ZG2500 | ZG2750 | ZG3000 | ZG3250 | ZG3500 | ZG3750 | ZG4000 | ZG4250 |
Drum Dimeter (mm) | Φ2500 | Φ2750 | Φ3000 | Φ3250 | Φ3500 | Φ3750 | Φ4000 | Φ4250 |
Processing capacity(t/d) | 70-120 | 140-200 | 200-300 | 240-400 | 400-600 | 550-800 | 750-1000 | 1000-1400 |
Work capacity(%) | 14-18 | |||||||
Motor power(Kw) | 132-160 | 160-200 | 280-315 | 315-400 | 560-630 | 630-800 | 800-1000 | 1000-1400 |

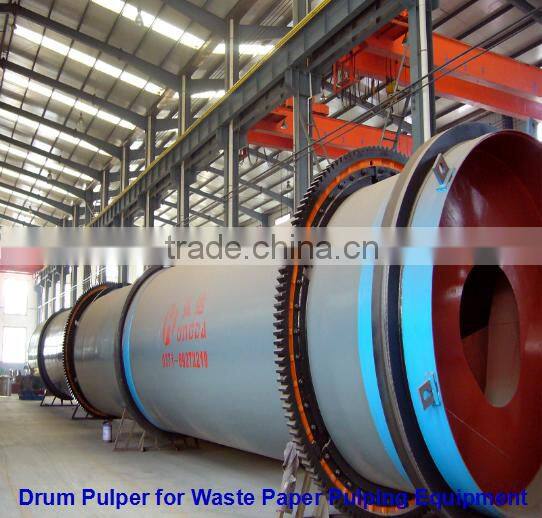

Rotor drum hydrapulper is the pulp engine in the waste paper pulp making process flow, it special suitable for the non-selected waste paper pulp.
It is a new type advanced China hot selling paper pulper finisher drum pulper
and a changeable product of traditional hydrapulper.
1. It can be realized in 14%-18% at high concentration, “moderate” to disperse fiber.
2. Keep the maximum length of fiber.
3. Low broke rate of impurity, with high efficiency, reduce the burden of the following procedures.
4. A low power consumption, reduce operating costs.
5. The friction effect effective liquid medicine mixing and high concentration conditions between the fibers is the ink particles fully separated from the fiber surface.
6. Fully sealed structure, saving steam and chemicals.
7. A wide range of raw material.
1.Unique wheel convey, to reduce friction, supply low failure rate.
2.No damage to the fiber and imourities.
3.Fewer matching sets save the cost of maintainence.
4.The only consumption of pulper lies in the rotation drum, which is half to one third of the hydraulic pulper. It saves much power than the traditional gear drive.
5.Combine the pulping, roughing with the deslagging, greatly save the cost.
6.Pulping density:14-18%
7.Consistency of out flow pulping:3-4%
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment.
Our company is located in Zhengzhou which is the hometown of machinery in Henan Province.
Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing good life-long maintenance service;
- Providing technical service with a technical service team.

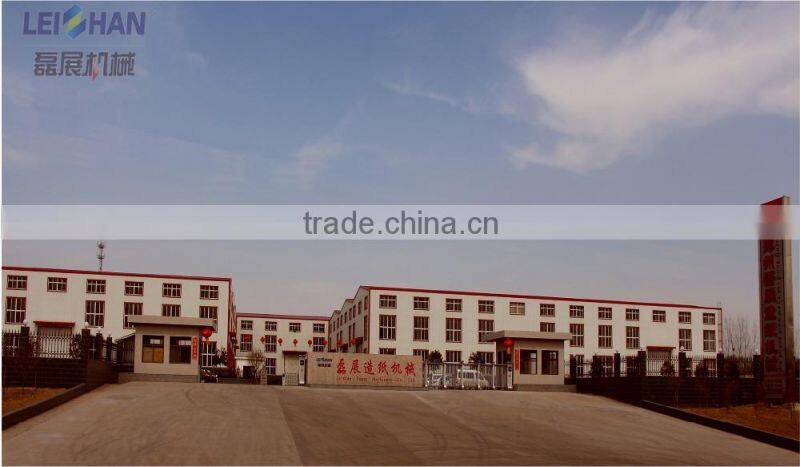

Company Profile
Zhengzhou Leizhan Technology Paper making machinery Co.,Ltd is a professional manufacturer of pulp and papermaking equipments, which engaged in research and development, manufacture and sale, now has successfully developed the marketable high consitency pressure screen, inflow pressure screen and D type Hydrapulper, and become the leader manufaturer in this area for the domestic market.
This company is located in Zhengzhou City, Henan Provice, covering 40 thousand square meters. It has total assets of 50 million, over 200 employees including 10 senior engineers. This company has been certified for State ISO9001 Quality System Certification and owns 14 patents. Leizhan is designed with low carbon enviromental protaction, pays more attention to the international technical cummunication and cooperation, The main series of the products are waste paper delivery, waste paper bale breaking and screening, waste paper pulping, heavy slag cleaning, screening, deinking, concentration, heat dispersion, pulping, mixing and pulp conveying etc.
Leizhan has processing and testing equipment like CNC cutting machine, sand blasting system, vertical and horizontal CNC lathe, planer milling machine, vertical boring machine, automatic continuous welding machine, CNC bending machine, CNC shearing machine, veneer reeling machine, 1200 tons of press machine, high speed dynamic balance correction machine, assembly test table etc.
By more than 30 year's development, facing the new market condition and competition, we will improve and strengthen our brand strategy continuously, regard quality and service as the foundation of long-run development, by implementing the innovation of technology and management, based on pulper equipment, we strive forward to the international stage actively.
