D Type Hydrapulper
- 1000 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T Credit Card
- Latest design pulp screen equipment fractionator screen of China manufacturer
- ISO certification separator of lightimpurity pulp fractionator screen machine
- ISO certification Paper recycle plant cost
- Waste paper recycling equipment prices
- Recycle carton box machine for paper making production line
- Newspaper recycling machinery for paper making production line
Product Details
Condition: | New | Type: | Other, paper recycling machine | Computerized: | Yes |
Place of Origin: | Henan, China | Brand Name: | Leizhan | Model Number: | paper recycling machine |
Voltage: | 380V/480v | Power(W): | 2.2-4(kw) | Dimension(L*W*H): | according to types |
Weight: | according to types | Certification: | BV | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
standard exporting package , and can be customized
Product Description

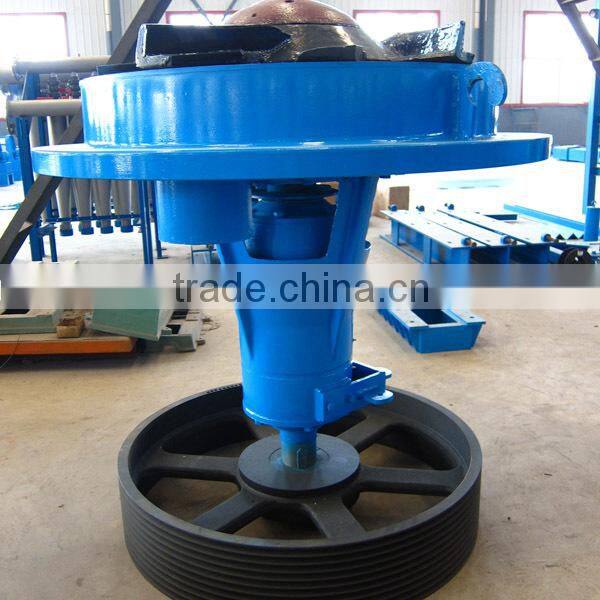

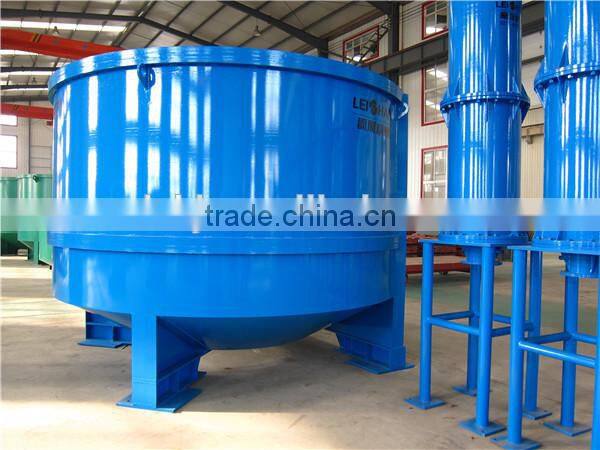

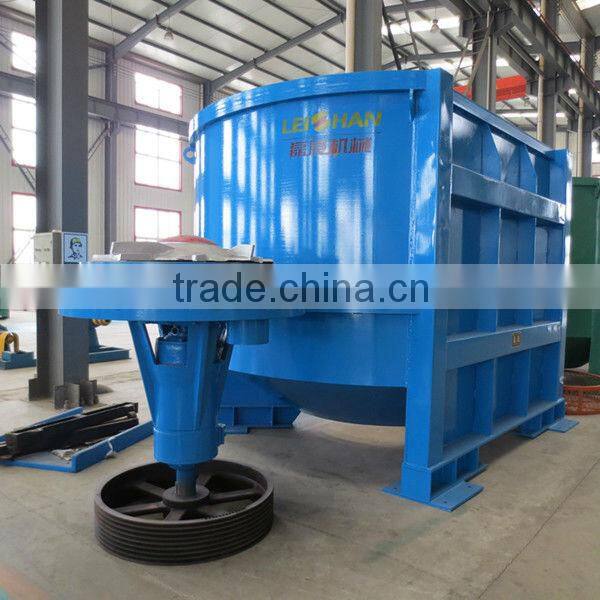

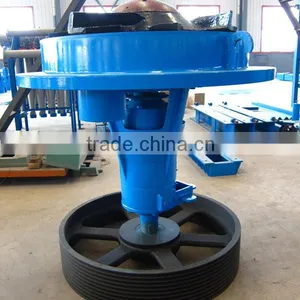

D Type Hydrapulper
D Type Hydrapulper
Description
Model ‘D’ Type Hydrapulper is used for continuously breaking waste paper. The tub adopts Model DR’ structure, rotor contacts with pulp frequently, so the breaking time is shortened greatly.
Model “D” hydrapulper, hydrapurgerⅡ, drum screen, ragger and grapple make up of continuous pulping and discharging system. This system is used for processing OCC, AOCC, etc. The plastics, styrene and other light and heavy rejects can be discharged from the tub before being broken and flow through the screen plate, so the production and pulp quality are improved.
Main models of D Type Hydrapulper
Type | ZDSD23 | ZDSD24 | ZDSD25 | ZDSD26 | ZDSD27 | ZDSD28 | ZDSD29 | ZDSD30 | ZDSD31 | ZDSD32 |
Normal Volume(m3) | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
Concentration (%) | 3-5 | |||||||||
Product capacity(t/d) | 30-50 | 40-90 | 80-120 | 140-180 | 180-230 | 230-280 | 270-320 | 300-370 | 350-400 | 400-450 |
Motor power(KW) | 75 | 110 | 160 | 185 | 220 | 280 | 315 | 355 | 400 | 450 |

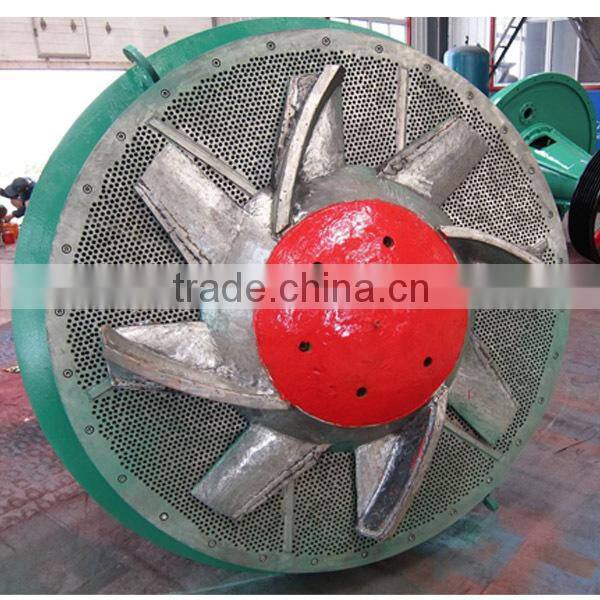

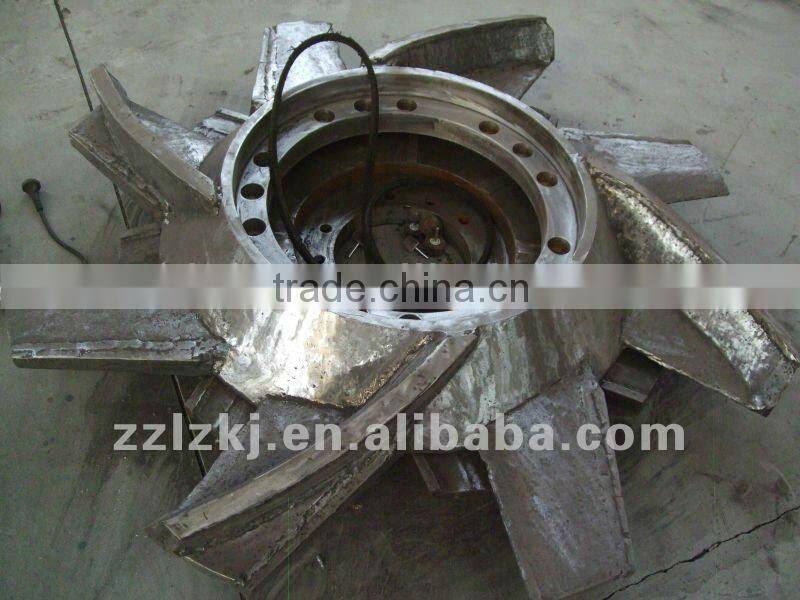

Parts used in D Type Hydrapulper

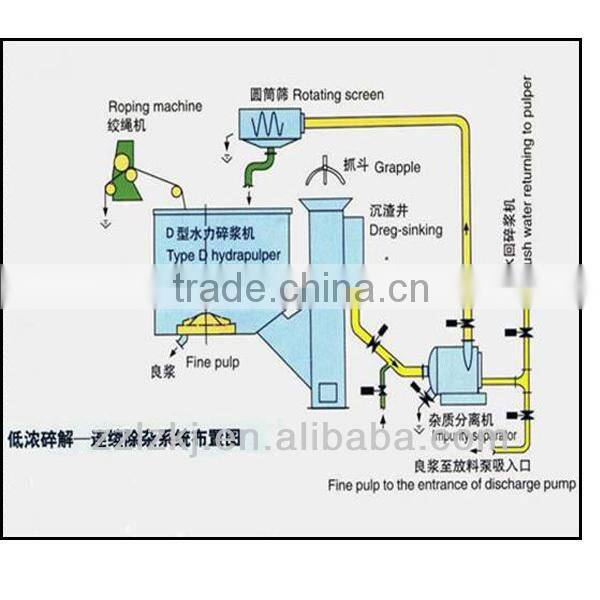

There maybe used continuous pulping system, the flowchart diagram as below:
Services:
1.Pre-sales Service Series High Density Cleaner
ris High Density Clean
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
2.After-sales Service
ZS Series High Density Cleane
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;

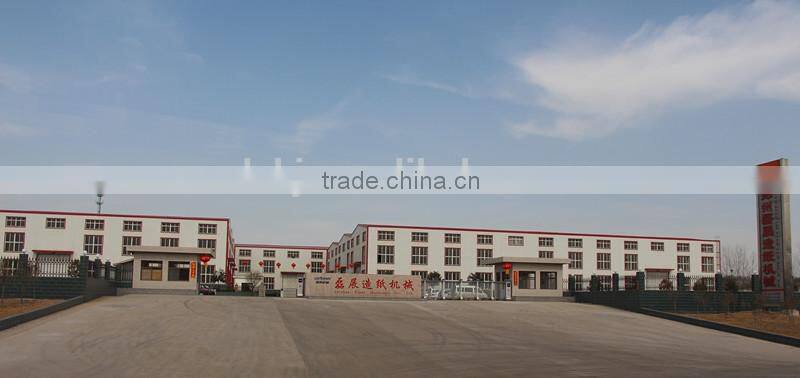

Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with 35 years manufacturing experience in making complete set of screening,impurity removal,pulping and refining equipment. The company is located in Zhengzhou xinmi which is the hometown of paper making machinery in Henan Province.We have more than 200 staffs including 50 engineering technicians which can provide you the best technical support.
Our factory address is Hetun Industrial Area, Dawei Town,Zhengzhou City, Henan Province, China.
Welcome to our factory for a visit.
Contacting person:
Name: Rosalyn
Mobile:+8615137182943.
Skype: leizhanpapermachine2
Company Profile
Zhengzhou Leizhan Technology Paper making machinery Co.,Ltd is a professional manufacturer of pulp and papermaking equipments, which engaged in research and development, manufacture and sale, now has successfully developed the marketable high consitency pressure screen, inflow pressure screen and D type Hydrapulper, and become the leader manufaturer in this area for the domestic market.
This company is located in Zhengzhou City, Henan Provice, covering 40 thousand square meters. It has total assets of 50 million, over 200 employees including 10 senior engineers. This company has been certified for State ISO9001 Quality System Certification and owns 14 patents. Leizhan is designed with low carbon enviromental protaction, pays more attention to the international technical cummunication and cooperation, The main series of the products are waste paper delivery, waste paper bale breaking and screening, waste paper pulping, heavy slag cleaning, screening, deinking, concentration, heat dispersion, pulping, mixing and pulp conveying etc.
Leizhan has processing and testing equipment like CNC cutting machine, sand blasting system, vertical and horizontal CNC lathe, planer milling machine, vertical boring machine, automatic continuous welding machine, CNC bending machine, CNC shearing machine, veneer reeling machine, 1200 tons of press machine, high speed dynamic balance correction machine, assembly test table etc.
By more than 30 year's development, facing the new market condition and competition, we will improve and strengthen our brand strategy continuously, regard quality and service as the foundation of long-run development, by implementing the innovation of technology and management, based on pulper equipment, we strive forward to the international stage actively.
