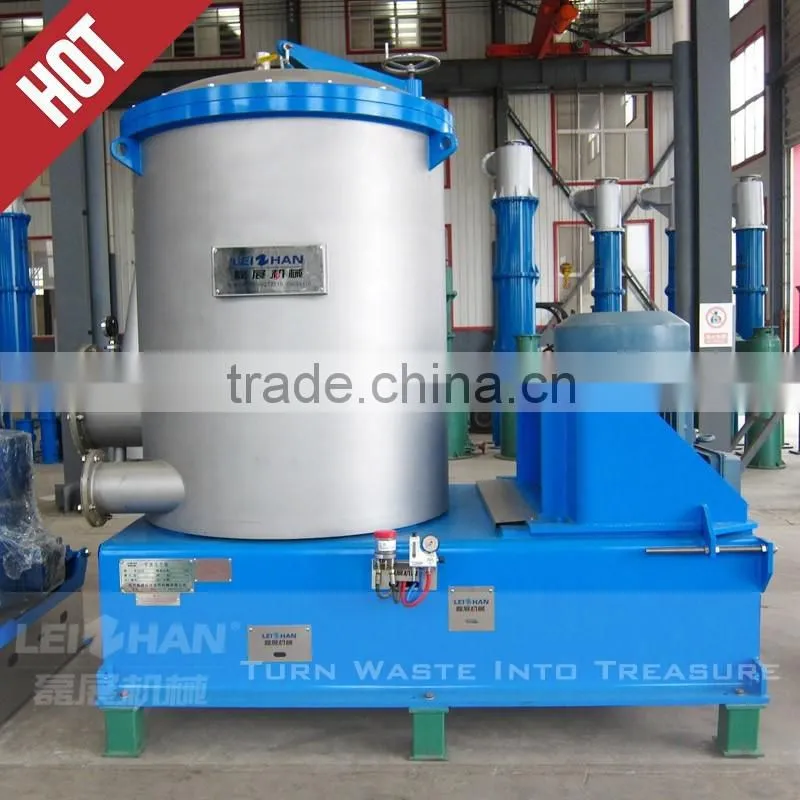

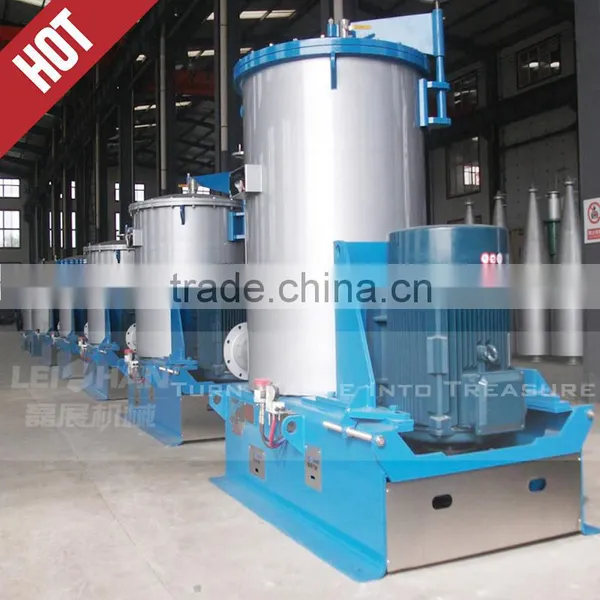

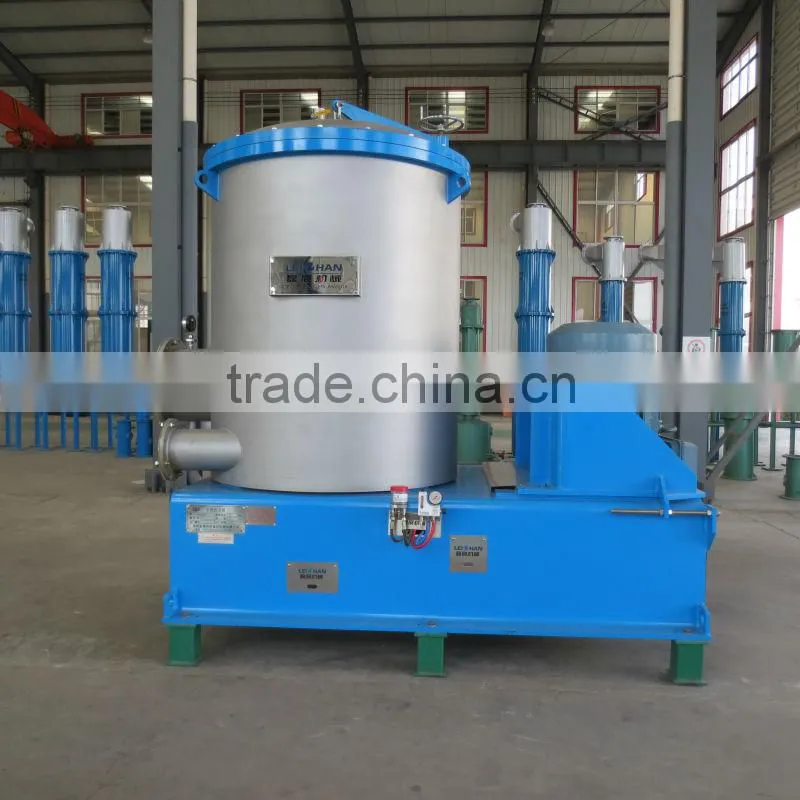

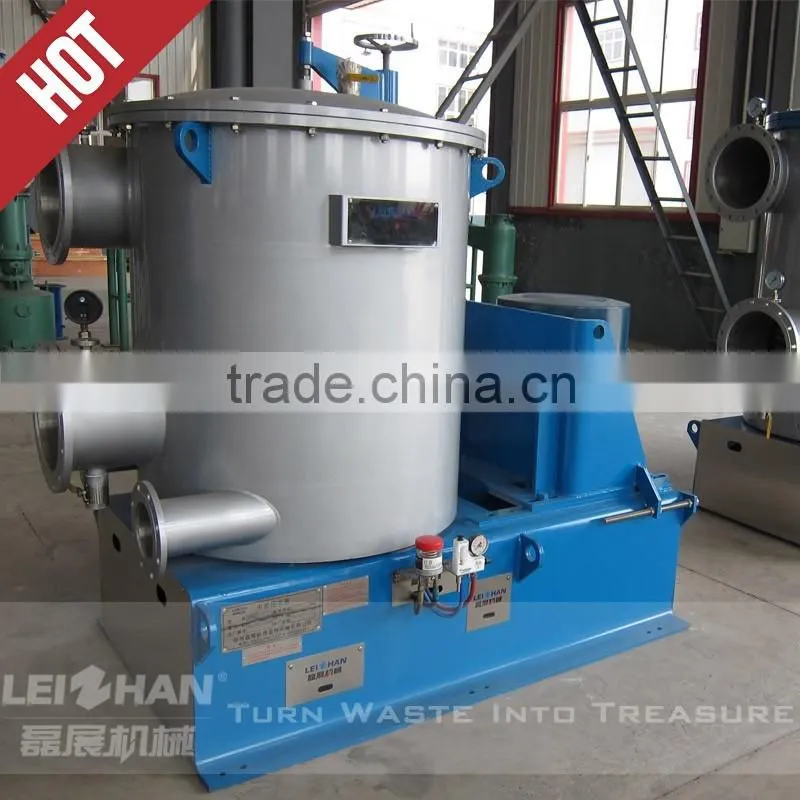

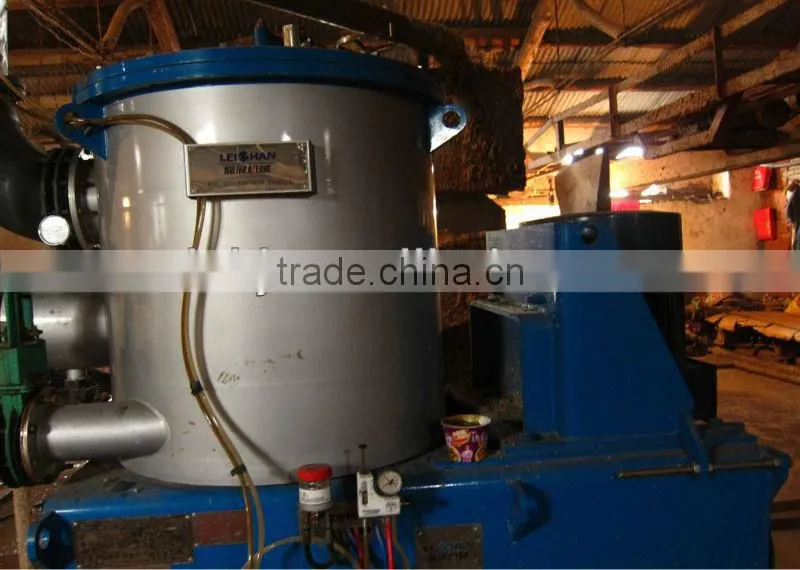

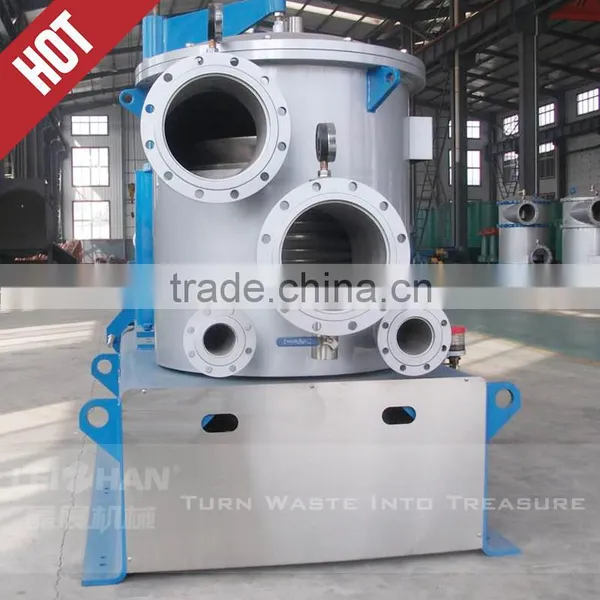

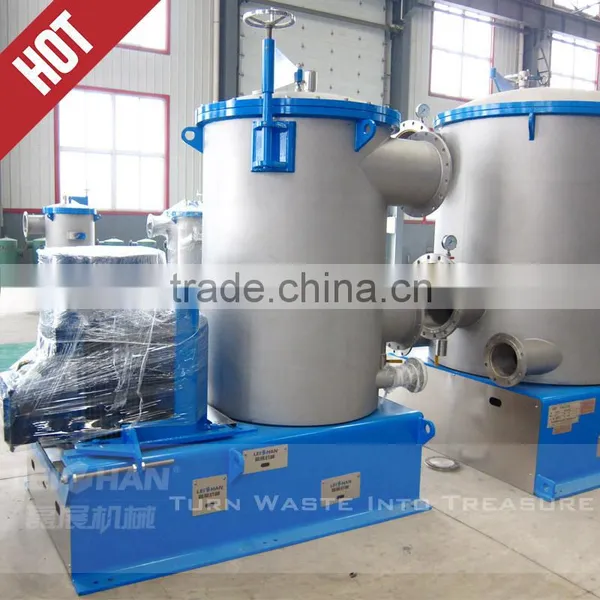

Leizhan ZNS medium consistency pressure screen for paper machine, paper pulp equipment/Waste Paper Recycling
Application:
This equipment has been installed with the of cylinder-type rotor,high-frequency pulse ,not easy to plug ,can be used to screen equipment of waste paper pulp and wood pulp and other type pulp materials,and also can be used as screening equipment before washing the pulp.
Pulp which comes from high density cleaner can be screened in relatively high concentration. Mid consistency energy-saving pressure screen is advanced paper pulp screening equipment in contemporary international world, it is the new generation paper pulp screening equipment researched and developed by our company with absorbing international advanced technology. It has strong adaptability, energy saving, water saving and high production efficiency etc.
Features:
• Medium consistency screening, simplified process, water and energy saving.
• Precision process with combination of 3rd generation machining and auto welding, high strength of screen basker.
• New rotor structure and section-shaped bars of basket; even distribution, efficient screening and high capacity.
• High abrasive basket with lastest cladding technology, precision and perfect process.

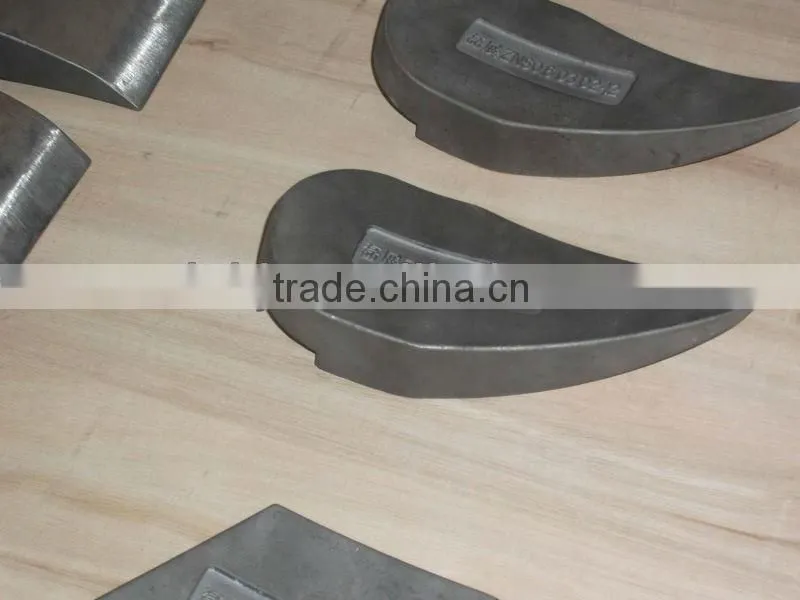

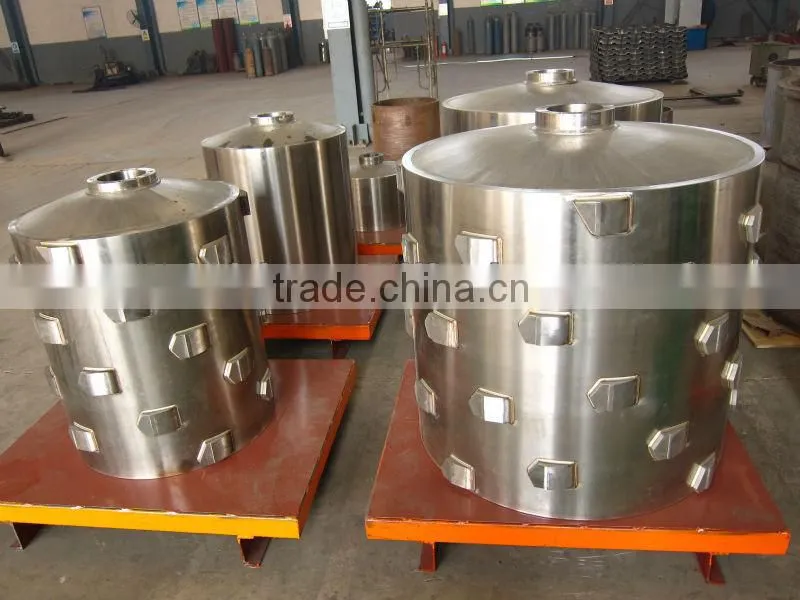

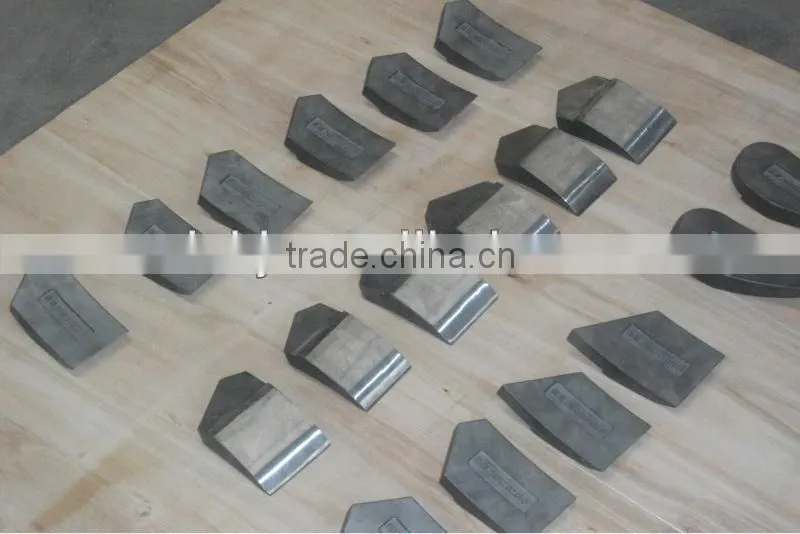

• Many wing pieces, no winding, highly efficient rotary drum type rotor
Main specification:
Screen area(m²) |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
2 |
3 |
4 |
Screen hole size(mm) |
φ1.6-φ3.5 |
|||||||
Screen seam size(mm) |
0.10-0.55 |
|||||||
Production capacity( t/d) |
50-80 |
90-160 |
135-250 |
180-320 |
200-380 |
260-500 |
400-700 |
500-1000 |
30-50 |
60-100 |
90-150 |
120-190 |
140-230 |
200-300 |
300-450 |
350-730 |
|
Inlet pulp consistency(%) |
1.5-4 |
|||||||
Motor power(Kw) |
22-55 |
30-75 |
37-90 |
45-110 |
55-132 |
75-160 |
90-220 |
132-280 |
Leizhan Zhengzhou Leizhan Technology Paper Machinery Co., Ltd is professional in manufacturing paper making machine,
especialy in waste paper recycling equipment. We can produce paper making machine line of designpaper mill according to customer's requiremene.
You are welcome to visit to Zhenghzou Leizhan Technology Paper Machinery Co., Ltd !
Paper making machine line:
•Waste paper pulp machine production line
•Automatic corrugated box production line
•Corrugated paper making production line
•Fluting paper pulp making production line
•Coated White Board Paper production line
•Honeycomb Paper making production line
•testliner paper making production line
•Paper plate making production line
•tissue paper making production line
•toilet paper making machine line
•kraft paper making machine line
•boxboard paper machine line
•Paper coating machine line
•Napkin paper machine line
•OCC line
