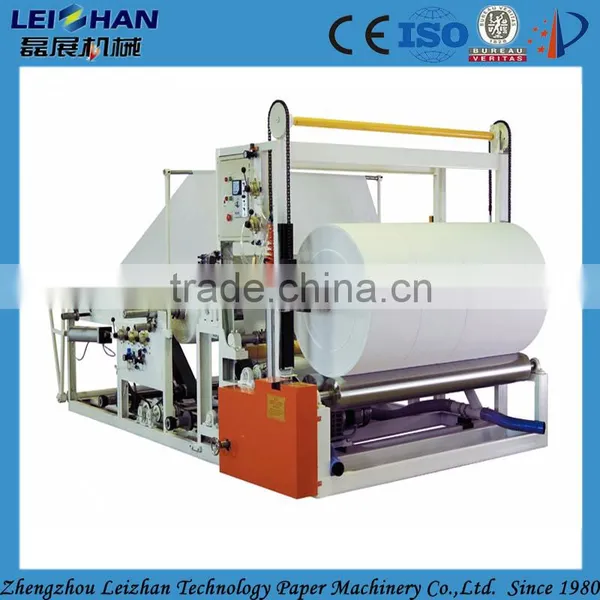

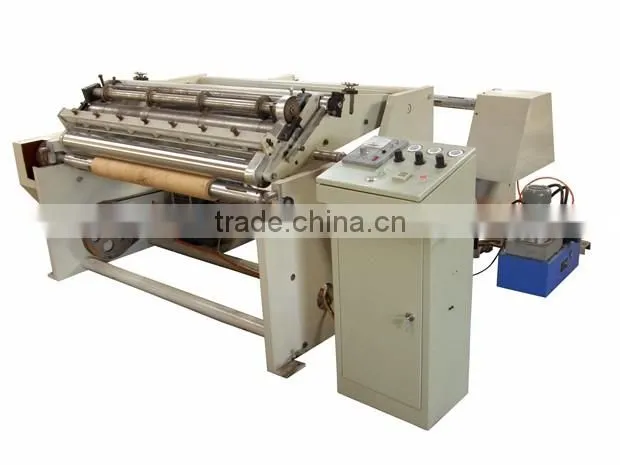

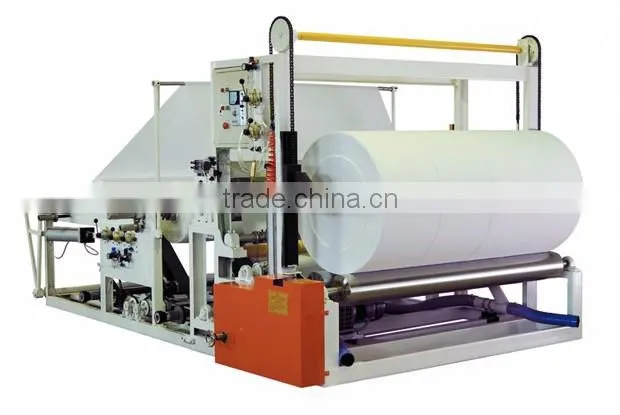

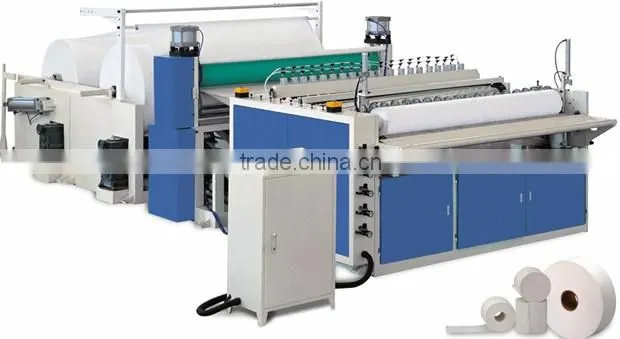

Manufacturing price small paper roll slitter rewinder equipment
1. Manufacturing price small paper roll slitter rewinder equipment is used for slitting toilet tissue paper, corrugated paper.
2. Paper Slitter Rewinder Machine adopts sureface rewinding system to slit the small roll paper .
3.We can provide the rewinding shaft in diameter of 12.7mm, 25.4mm and 50.8mm. Some other size is subject to the clients demand.
4. Paper Slitter Rewinder Machine is equipped with Siemens PLC and touch screen, all the parameters can be displayed on the monitor.
5. Paper Slitter Rewinder Machine is equipped with Red line marker which is used for print a red line at the end of paper rolls.
6. Thermal Paper Slitter Rewinder Machine is with Tech Mach Floating Roller Tension Controller to keep a constant tension for machine working.
7. Thermal Paper Slitter Rewinder Machine is with hydraulic loading system to load big roll onto unwinding stand,so that reduce working intensity.
Main Technical Parameters:
Max. Unwinding Width |
500-900mm |
Max. Unwinding Diameter |
800mm |
Max. Rewinding Diameter |
200mm |
Max. Slitting Speed |
200/min |
Frequency inverter motor |
2.2Kw |
Overall Dimension |
2050*1600*1500mm |
Weight |
1500kg |
Features:
1. Double blades (upper blades and down blades) slitting. Cutting edges are more smooth and neat.
2. Adopt shaftless material loading device which can bear 2000kgs weight.
3. Hydraulic loading system; slitting width and diameter up to 1500mm; Rewinding side adopted with curved roll and air inflatable shaft so that finished rolls can be separated automatically and unloaded very easily.
4.Both material paper roll loading and finished rolls unloading to finished automatically.
Unwind side adopted with shaftless loading device (can bear 2000kgs);
Jumbo paper lifted automatically by pneumatic system.

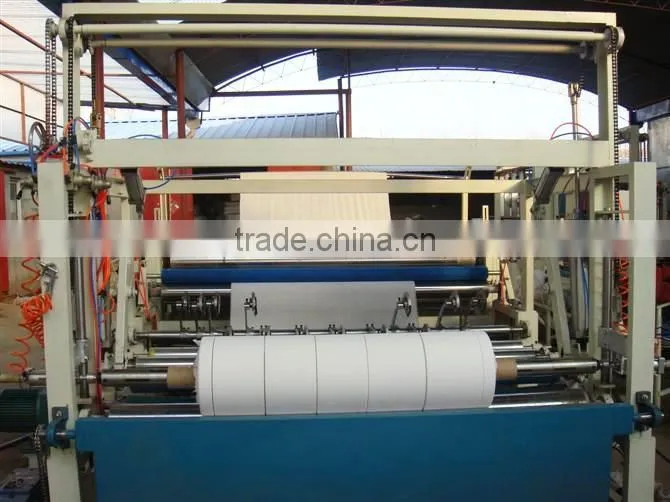

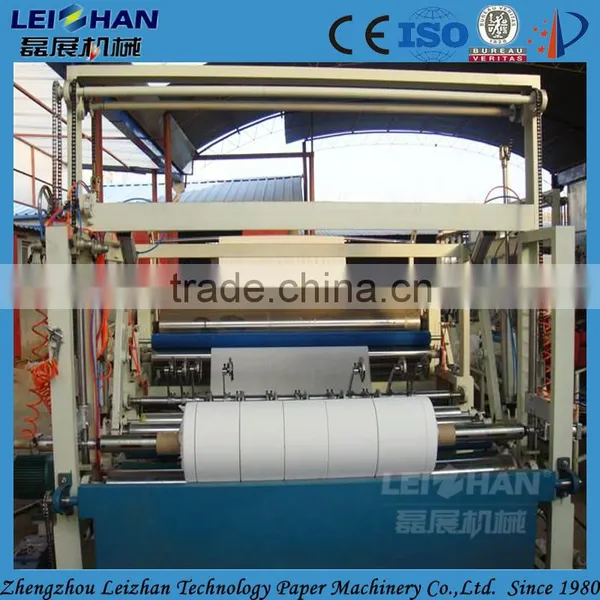

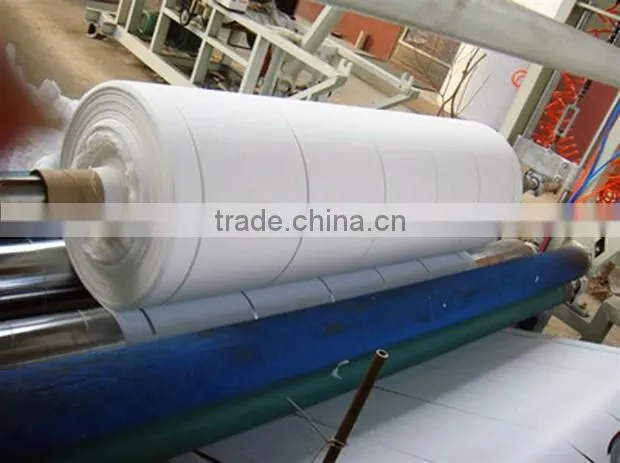

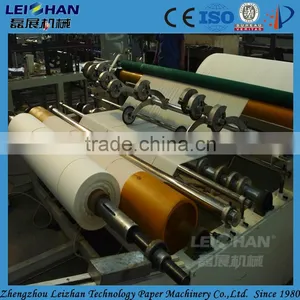

-- Slitting& Rewinding Side.

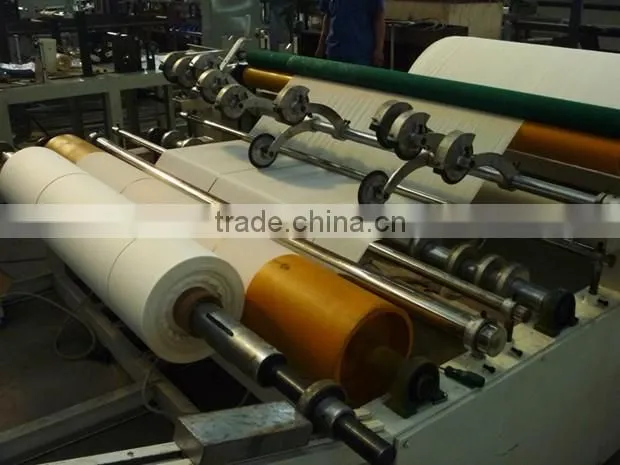

a. Multi Blades Slitting -- minimum slitting length is 35mm.
b.Rewinding part adopted with air inflatable shaft; finished rolls can be removed more easier.
-- Rewinding side has curved roller and finished rolls can be seperated automatically

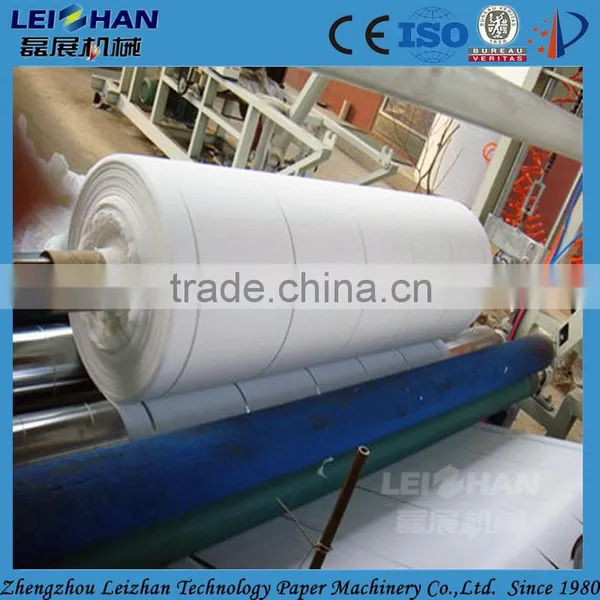

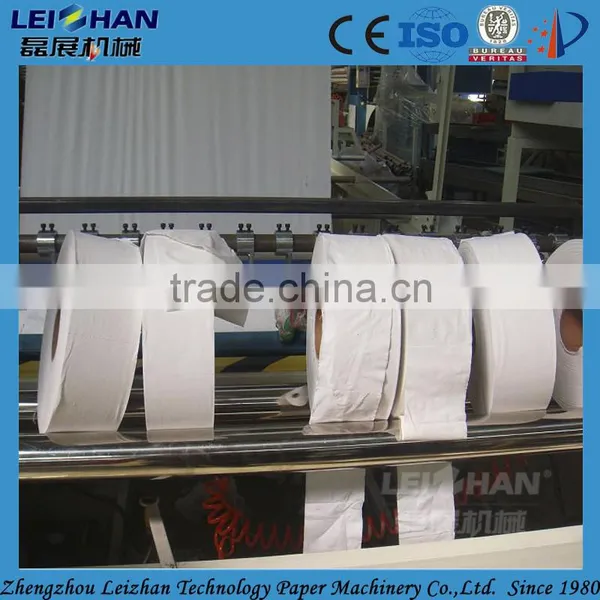

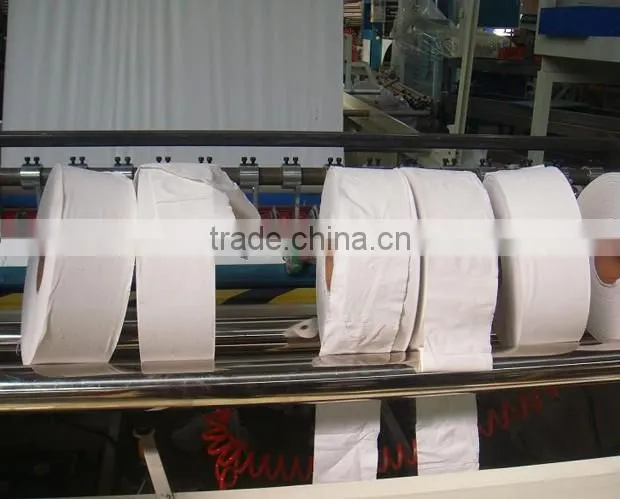

Finished paper rolls
Give you our best !
♥.Pre-sale services: perfect technical design for you
We provide you with perfect prophase plan, process flow design and practical equipment on the basis of your condition.
♥.After-sale services: overseas service provided
It have been our tenet that we should provide the best to our customers. So we have engineers overseas for the installation and maintenance.
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment. Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.

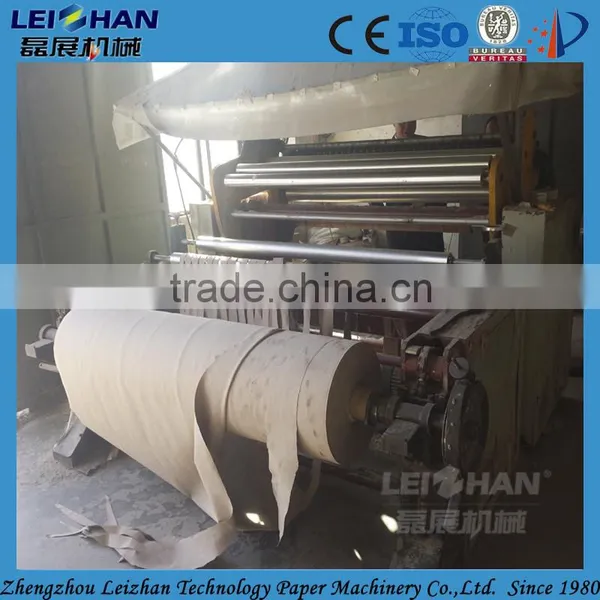

Factory show
Exhibition
Paper making production lines we can provide
Waste paper pulp machine production line
Automatic corrugated box production line
Corrugated paper making production line
Fluting paper pulp making production line
Coated White Board Paper production line
Honeycomb Paper making production line
testliner paper making production line
Paper plate making production line
tissue paper making production line
toilet paper making machine line
kraft paper making machine line
boxboard paper machine line
Paper coating machine line
Napkin paper machine line
OCC line
